Oracle Database

This section describes how to create data migration tasks through the Explorer interface, migrating data from Oracle to the current TDengine cluster.

Feature Overview

The Oracle database system is a popular relational database management system worldwide, known for its good portability, ease of use, and strong functionality, suitable for various large, medium, and small computer environments. It is an efficient, reliable, and high-throughput database solution.

TDengine can efficiently read data from Oracle and write it to TDengine, enabling historical data migration or real-time data synchronization.

Creating a Task

1. Add a Data Source

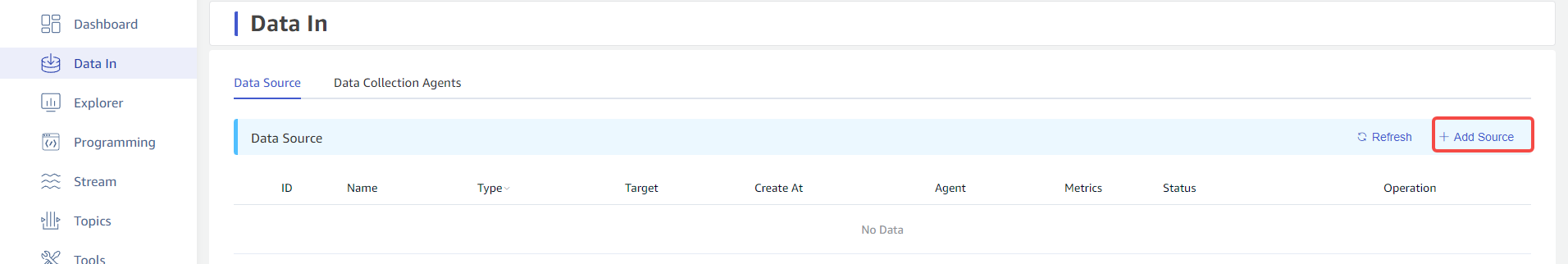

Click the + Add Data Source button in the upper left corner of the data writing page to enter the Add Data Source page, as shown below:

2. Configure Basic Information

Enter the task name in the Name field, for example, test_oracle_01.

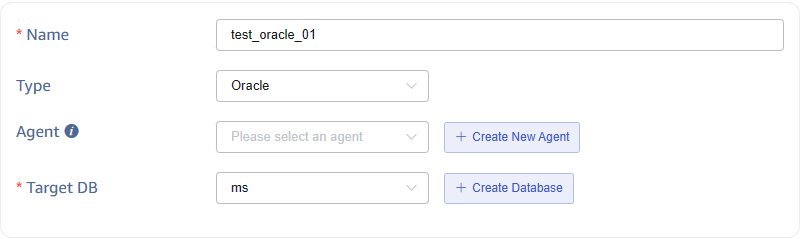

Select Oracle from the Type dropdown menu, as shown below (the fields on the page will change after selection).

Agent is optional. If needed, you can select a specific agent from the dropdown menu or click the + Create New Agent button on the right to create a new agent.

Target Database is required. You can click the + Create Database button on the right to create a new database.

3. Configure Connection Information

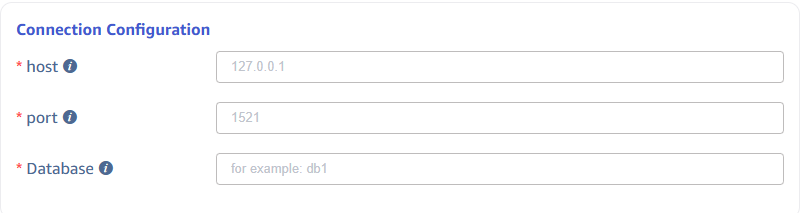

Fill in the connection information for the source Oracle database in the Connection Configuration area, as shown below:

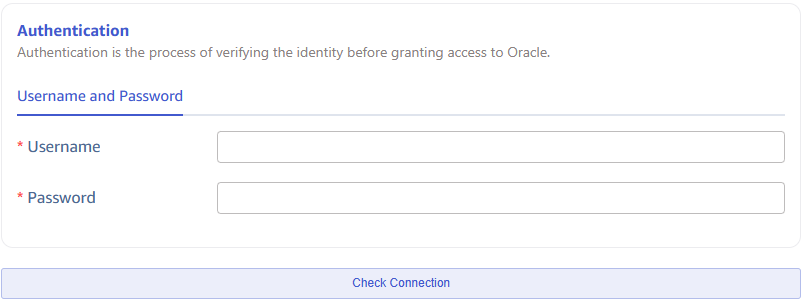

4. Configure Authentication Information

User Enter the user of the source Oracle database, who must have read permissions in the organization.

Password Enter the login password for the user mentioned above in the source Oracle database.

Then click the Check Connectivity button, where users can click this button to check if the information filled in above can normally access data from the source Oracle database.

5. Configure SQL Query

Subtable Field is used to split the subtable field, which is a select distinct SQL statement querying non-repeated items of specified field combinations, usually corresponding to the tag in transform:

This configuration is mainly to solve the problem of data migration disorder. It needs to be used in conjunction with SQL Template, otherwise, it cannot achieve the expected effect. Usage examples are as follows:

1. Fill in the subtable field statement select distinct col_name1, col_name2 from table, which means using the fields col_name1 and col_name2 in the source table to split the subtable of the target supertable
2. Add subtable field placeholders in the SQL Template, for example, the ${col_name1} and ${col_name2} part in select * from table where ts >= ${start} and ts < ${end} and ${col_name1} and ${col_name2}
3. Configure the mappings of col_name1 and col_name2 as two tags in transform

SQL Template is the SQL statement template used for querying, which must include time range conditions, and the start and end times must appear in pairs. The time range defined in the SQL statement template consists of a column representing time in the source database and the placeholders defined below.

Different placeholders represent different time format requirements in SQL, specifically including the following placeholder formats:

1. ${start}, ${end}: Represents RFC3339 format timestamps, e.g., 2024-03-14T08:00:00+0800
2. ${start_no_tz}, ${end_no_tz}: Represents RFC3339 strings without timezone: 2024-03-14T08:00:00
3. ${start_date}, ${end_date}: Represents date only, but since there is no pure date type in Oracle, it will include zero hour, zero minute, and zero second, e.g., 2024-03-14 00:00:00, so be careful when using date <= ${end_date} as it does not include data of the day 2024-03-14

To solve the problem of data migration disorder, a sorting condition should be added to the query statement, such as order by ts asc.

Start Time The start time for migrating data, this field is required.

End Time The end time for migrating data, which can be left blank. If set, the migration task will stop automatically after reaching the end time; if left blank, it will continuously synchronize real-time data and the task will not stop automatically.

Query Interval The time interval for querying data in segments, default is 1 day. To avoid querying too much data at once, a data synchronization sub-task will use the query interval to segment the data retrieval.

Delay Duration In real-time data synchronization scenarios, to avoid losing data due to delayed writes, each synchronization task will read data from before the delay duration.

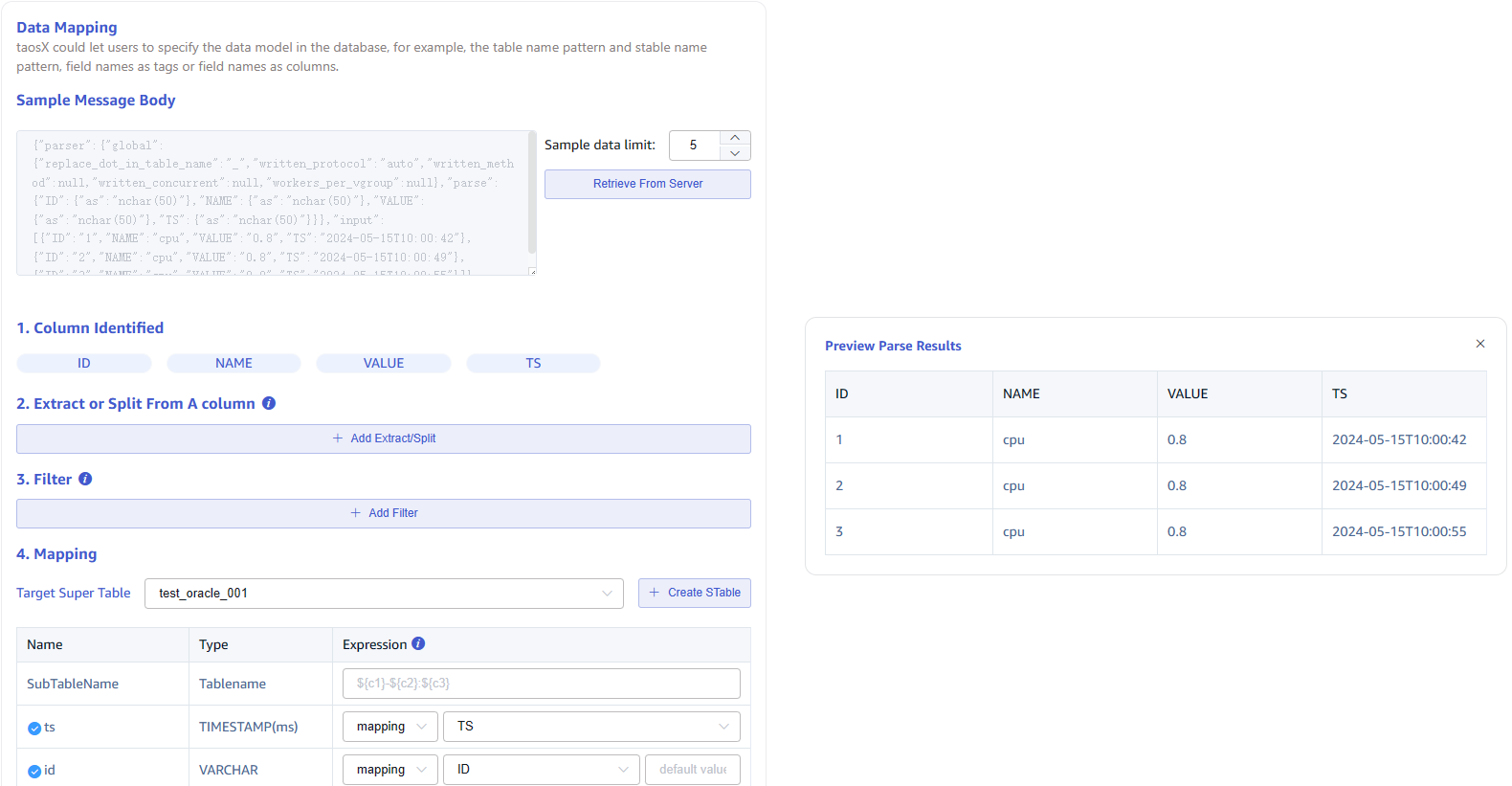

6. Configure Data Mapping

In the Data Mapping area, fill in the configuration parameters related to data mapping.

Click the Retrieve from Server button to get sample data from the Oracle server.

In Extract or Split from Column, fill in the fields to extract or split from the message body, for example: split the vValue field into vValue_0 and vValue_1, choose the split extractor, fill in the separator ,, and number 2.

In Filter, fill in the filtering conditions, for example: write Value > 0, then only data where Value is greater than 0 will be written to TDengine.

In Mapping, select the supertable in TDengine to map to, and the columns to map to the supertable.

Click Preview to view the results of the mapping.

7. Configure Advanced Options

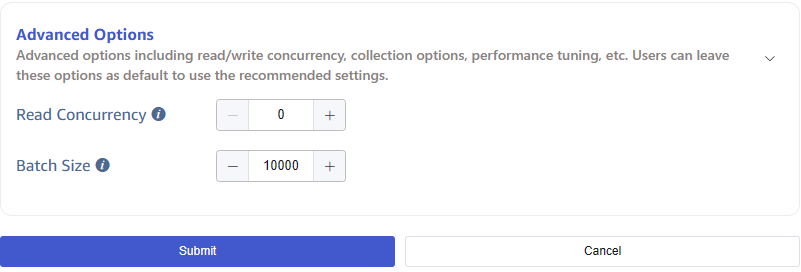

The Advanced Options area is collapsed by default, click the > on the right to expand it, as shown below:

Maximum Read Concurrency Limit on the number of data source connections or reading threads, modify this parameter when the default parameters do not meet the needs or when adjusting resource usage.

Batch Size The maximum number of messages or rows sent at once. The default is 10000.

8. Completion

Click the Submit button to complete the creation of the data synchronization task from Oracle to TDengine, return to the Data Source List page to view the status of the task execution.
