OPC UA

This section describes how to create data migration tasks through the Explorer interface to synchronize data from an OPC-UA server to the current TDengine cluster.

Overview

OPC is one of the interoperability standards for securely and reliably exchanging data in the field of industrial automation and other industries.

OPC-UA is the next-generation standard of the classic OPC specifications, a platform-independent, service-oriented architecture specification that integrates all the functionalities of the existing OPC Classic specifications, providing a path to a more secure and scalable solution.

TDengine can efficiently read data from OPC-UA servers and write it to TDengine, enabling real-time data ingestion.

Creating a Task

1. Add a Data Source

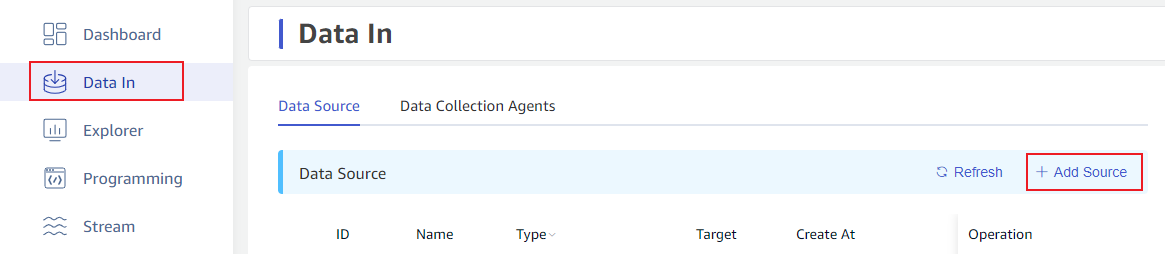

On the data writing page, click the + Add Data Source button to enter the add data source page.

2. Configure Basic Information

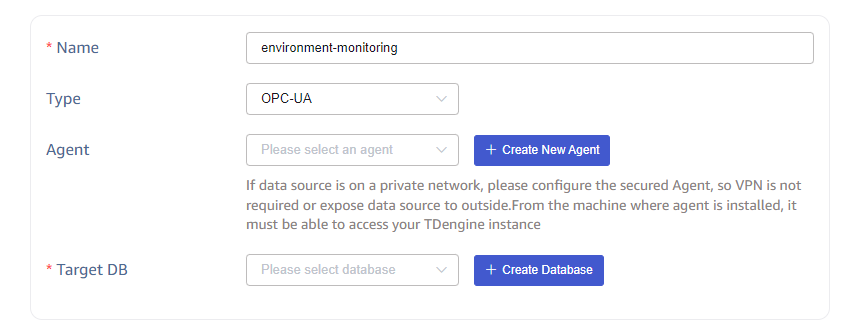

Enter the task name in Name, for example, for environmental temperature and humidity monitoring, name it environment-monitoring.

Select OPC-UA from the Type dropdown list.

Proxy is optional, you can select a specific proxy from the dropdown list, or click the + Create New Proxy button on the right.

Select a target database from the Target Database dropdown list, or click the + Create Database button on the right.

3. Configure Connection Information

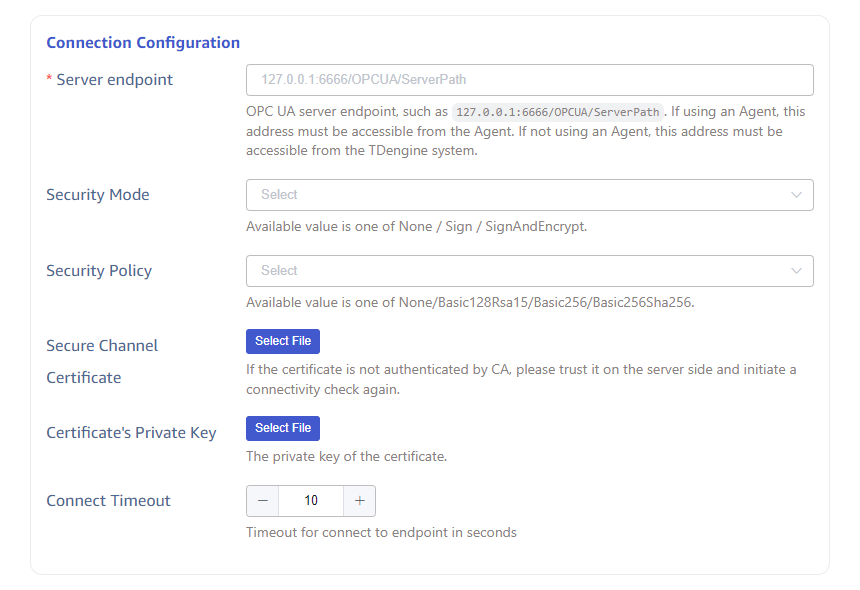

In the Connection Configuration area, fill in the OPC-UA Service Address, for example: 127.0.0.1:5000, and configure the data transmission security mode, with three security modes available:

1. None: Communication data is transmitted in plaintext.
2. Sign: Communication data is verified using a digital signature to protect data integrity.
3. SignAndEncrypt: Communication data is verified using a digital signature and encrypted using encryption algorithms to ensure data integrity, authenticity, and confidentiality.

If you choose Sign or SignAndEncrypt as the security mode, you must select a valid security policy. Security policies define how to implement the encryption and verification mechanisms in the security mode, including the encryption algorithms used, key lengths, digital certificates, etc. Available security policies include:

1. None: Only selectable when the security mode is None.
2. Basic128Rsa15: Uses RSA algorithm and 128-bit key length to sign or encrypt communication data.
3. Basic256: Uses AES algorithm and 256-bit key length to sign or encrypt communication data.
4. Basic256Sha256: Uses AES algorithm and 256-bit key length, and encrypts digital signatures using the SHA-256 algorithm.
5. Aes128Sha256RsaOaep: Uses AES-128 algorithm for encrypting and decrypting communication data, encrypts digital signatures using the SHA-256 algorithm, and uses RSA algorithm and OAEP mode for encrypting and decrypting symmetric communication keys.
6. Aes256Sha256RsaPss: Uses AES-256 algorithm for encrypting and decrypting communication data, encrypts digital signatures using the SHA-256 algorithm, and uses RSA algorithm and PSS mode for encrypting and decrypting symmetric communication keys.

4. Choose Authentication Method

As shown below, switch tabs to choose different authentication methods, with the following options available:

1. Anonymous
2. Username
3. Certificate Access: Can be the same as the security communication certificate, or a different certificate.

After configuring the connection properties and authentication method, click the Connectivity Check button to check if the data source is available. If using a security communication certificate or authentication certificate, the certificate must be trusted by the OPC UA server, otherwise, it will still fail.

5. Configure Points Set

Points Set can choose to use a CSV file template or Select All Points.

5.1. Upload CSV Configuration File

You can download the CSV blank template and configure the point information according to the template, then upload the CSV configuration file to configure points; or download data points according to the configured filter conditions, and download in the format specified by the CSV template.

CSV files have the following rules:

1. File Encoding

The encoding format of the CSV file uploaded by the user must be one of the following:

(1) UTF-8 with BOM

(2) UTF-8 (i.e., UTF-8 without BOM)

2. Header Configuration Rules

The header is the first line of the CSV file, with the following rules:

(1) The header of the CSV can configure the following columns:

Number	Column Name	Description	Required	Default Behavior
1	point_id	The id of the data point on the OPC UA server	Yes	None
2	stable	The corresponding supertable for the data point in TDengine	Yes	None
3	tbname	The corresponding subtable for the data point in TDengine	Yes	None
4	enable	Whether to collect data from this point	No	Use the unified default value 1 for enable
5	value_col	The column name in TDengine corresponding to the collected value of the data point	No	Use the unified default value val as the value_col
6	value_transform	The transformation function executed in taosX for the collected value of the data point	No	Do not transform the collected value uniformly
7	type	The data type of the collected value of the data point	No	Use the original type of the collected value as the data type in TDengine
8	quality_col	The column name in TDengine corresponding to the quality of the collected value	No	Do not add a quality column in TDengine uniformly
9	ts_col	The original timestamp column of the data point in TDengine	No	If both ts_col and received_ts_col are non-empty, use the former as the timestamp column; if one of ts_col or received_ts_col is non-empty, use the non-empty column as the timestamp column; if both are empty, use the original timestamp of the data point as the timestamp column with the default name ts.
10	received_ts_col	The timestamp column in TDengine when the data point value is received	No	Same as above
11	ts_transform	The transformation function executed in taosX for the original timestamp of the data point	No	Do not transform the original timestamp of the data point uniformly
12	received_ts_transform	The transformation function executed in taosX for the received timestamp of the data point	No	Do not transform the received timestamp of the data point uniformly
13	tag::VARCHAR(200)::name	The Tag column corresponding to the data point in TDengine. Here tag is a reserved keyword indicating that this column is a tag; VARCHAR(200) indicates the type of tag; name is the actual name of the tag.	No	If 1 or more tag columns are configured, use the configured tag columns; if no tag columns are configured and stable exists in TDengine, use the tags of the stable in TDengine; if no tag columns are configured and stable does not exist in TDengine, automatically add the following 2 tag columns: tag::VARCHAR(256)::point_id and tag::VARCHAR(256)::point_name

(2) In the CSV Header, there cannot be duplicate columns;

(3) In the CSV Header, columns like tag::VARCHAR(200)::name can be configured multiple times, corresponding to multiple Tags in TDengine, but the names of the Tags cannot be repeated.

(4) In the CSV Header, the order of the columns does not affect the CSV file validation rules;

(5) In the CSV Header, columns that are not listed in the table above can be configured, such as: sequence number, these columns will be automatically ignored.

3. Row Configuration Rules

Each Row in the CSV file configures an OPC data point. The rules for Rows are as follows:

(1) Correspondence with columns in the Header

Number	Column in Header	Type of Value	Value Range	Mandatory	Default Value
1	point_id	String	Strings like ns=3;i=1005, must meet the OPC UA ID specification, i.e., include ns and id parts	Yes
2	enable	int	0: Do not collect this point, and delete the corresponding subtable in TDengine before the OPC DataIn task starts; 1: Collect this point, do not delete the subtable before the OPC DataIn task starts.	No	1
3	stable	String	Any string that meets the TDengine supertable naming convention; if special character . exists, replace with underscore if {type} exists: if type in CSV file is not empty, replace with the value of type if type is empty, replace with the original type of the collected value	Yes
4	tbname	String	Any string that meets the TDengine subtable naming convention; for OPC UA: if {ns} exists, replace with ns from point_id if {id} exists, replace with id from point_id for OPC DA: if {tag_name} exists, replace with tag_name	Yes
5	value_col	String	Column name that meets TDengine naming convention	No	val
6	value_transform	String	Expressions that meet the Rhai engine, for example: (val + 10) / 1000 * 2.0, log(val) + 10, etc.;	No	None
7	type	String	Supported types include: b/bool/i8/tinyint/i16/small/inti32/int/i64/bigint/u8/tinyint unsigned/u16/smallint unsigned/u32/int unsigned/u64/bigint unsigned/f32/float/f64/double/timestamp/timestamp(ms)/timestamp(us)/timestamp(ns)/json	No	Original type of the data point value
8	quality_col	String	Column name that meets TDengine naming convention	No	None
9	ts_col	String	Column name that meets TDengine naming convention	No	ts
10	received_ts_col	String	Column name that meets TDengine naming convention	No	rts
11	ts_transform	String	Supports +, -, , /, % operators, for example: ts / 1000 1000, sets the last 3 digits of a timestamp in ms to 0; ts + 8 3600 1000, adds 8 hours to a timestamp in ms; ts - 8 3600 1000, subtracts 8 hours from a timestamp in ms;	No	None
12	received_ts_transform	String	No	None
13	tag::VARCHAR(200)::name	String	The value inside a tag, when the tag type is VARCHAR, can be in Chinese	No	NULL

(2) point_id is unique throughout the DataIn task, meaning: in an OPC DataIn task, a data point can only be written to one subtable in TDengine. If you need to write a data point to multiple subtables, you need to create multiple OPC DataIn tasks;

(3) When point_id is different but tbname is the same, value_col must be different. This configuration allows data from multiple data points of different types to be written to different columns in the same subtable. This method corresponds to the "OPC data into TDengine wide table" usage scenario.

4. Other Rules

(1) If the number of columns in Header and Row are inconsistent, the validation fails, and the user is prompted with the line number that does not meet the requirements;

(2) Header is on the first line and cannot be empty;

(3) There must be at least one data point;

5.2. Selecting Data Points

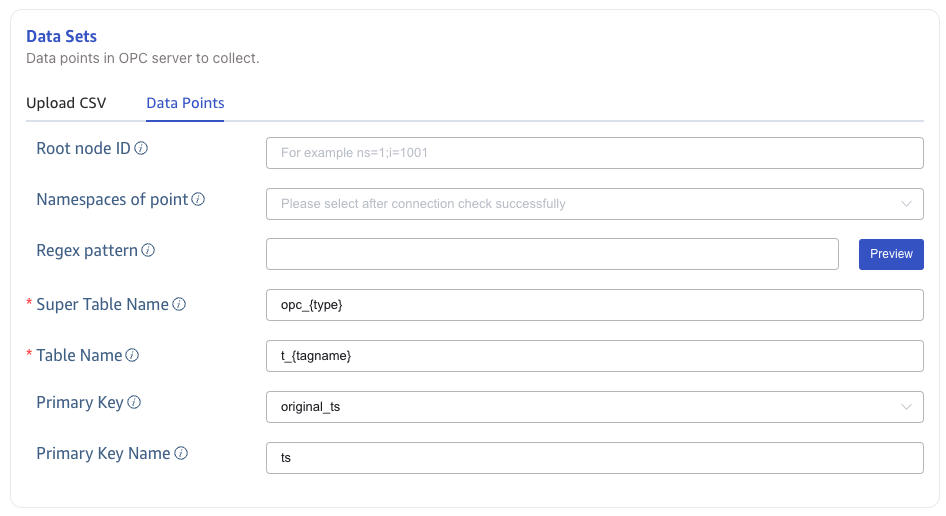

Data points can be filtered by configuring Root Node ID, Namespace, Regular Matching, etc.

Configure Supertable Name, Table Name to specify the supertable and subtable where the data will be written.

Configure Primary Key Column, choose origin_ts to use the original timestamp of the OPC data point as the primary key in TDengine; choose received_ts to use the data's reception timestamp as the primary key in TDengine. Configure Primary Key Alias to specify the name of the TDengine timestamp column.

6. Collection Configuration

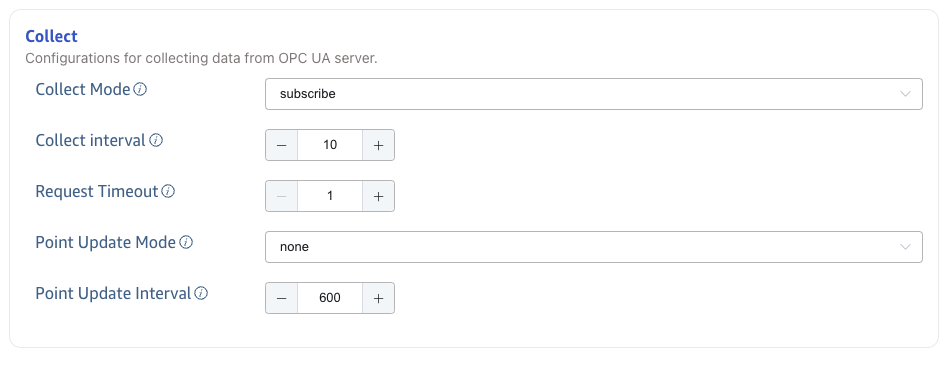

In the collection configuration, configure the current task's collection mode, collection interval, collection timeout, etc.

As shown in the image above:

• Collection Mode: Can use subscribe or observe mode.
  • subscribe: Subscription mode, reports data changes and writes to TDengine.
  • observe: According to the collection interval, polls the latest value of the data point and writes to TDengine.
• Collection Interval: Default is 10 seconds, the interval for collecting data points, starting from the end of the last data collection, polls the latest value of the data point and writes to TDengine. Only configurable in observe Collection Mode.
• Collection Timeout: If the data from the OPC server is not returned within the set time when reading data points, the read fails, default is 10 seconds. Only configurable in observe Collection Mode.

When using Selecting Data Points in the Data Point Set, the collection configuration can configure Data Point Update Mode and Data Point Update Interval to enable dynamic data point updates. Dynamic Data Point Update refers to, during the task operation, after OPC Server adds or deletes data points, the data points that meet the conditions will automatically be added to the current task without needing to restart the OPC task.

• Data Point Update Mode: Can choose None, Append, Update.
  • None: Do not enable dynamic data point updates;
  • Append: Enable dynamic data point updates, but only append;
  • Update: Enable dynamic data point updates, append or delete;
• Data Point Update Interval: Effective when "Data Point Update Mode" is Append and Update. Unit: seconds, default value is 600, minimum value: 60, maximum value: 2147483647.

7. Advanced Options

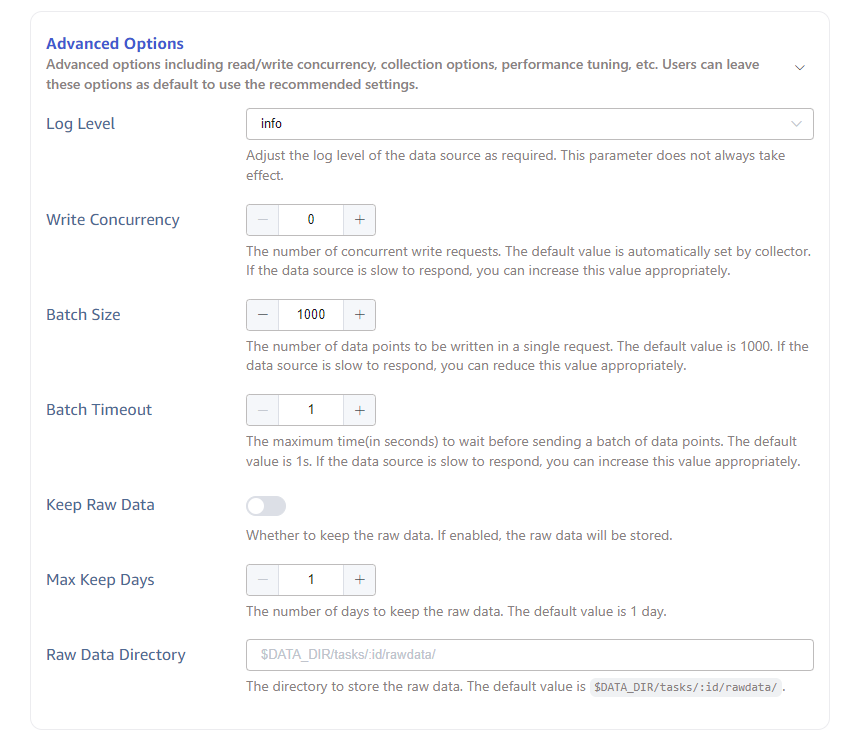

As shown in the image above, configure advanced options for more detailed optimization of performance, logs, etc.

Log Level defaults to info, with options error, warn, info, debug, trace.

In Maximum Write Concurrency, set the maximum concurrency limit for writing to taosX. Default value: 0, meaning auto, automatically configures concurrency.

In Batch Size, set the batch size for each write, i.e., the maximum number of messages sent at one time.

In Batch Delay, set the maximum delay for a single send (in seconds), when the timeout ends, as long as there is data, it is sent immediately even if it does not meet the Batch Size.

In Save Raw Data, choose whether to save raw data. Default value: No.

When saving raw data, the following 2 parameters are effective.

In Maximum Retention Days, set the maximum retention days for raw data.

In Raw Data Storage Directory, set the path for saving raw data. If using Agent, the storage path refers to the path on the server where the Agent is located, otherwise it is on the taosX server. The path can use placeholders $DATA_DIR and :id as part of the path.

• On Linux platform, $DATA_DIR is /var/lib/taos/taosx, by default the storage path is /var/lib/taos/taosx/tasks/<task_id>/rawdata.
• On Windows platform, $DATA_DIR is C:\TDengine\data\taosx, by default the storage path is C:\TDengine\data\taosx\tasks\<task_id>\rawdata.

8. Completion

Click the Submit button to complete the creation of the OPC UA to TDengine data synchronization task. Return to the Data Source List page to view the status of the task execution.

Add Data Points

During the task execution, click Edit, then click the Add Data Points button to append data points to the CSV file.

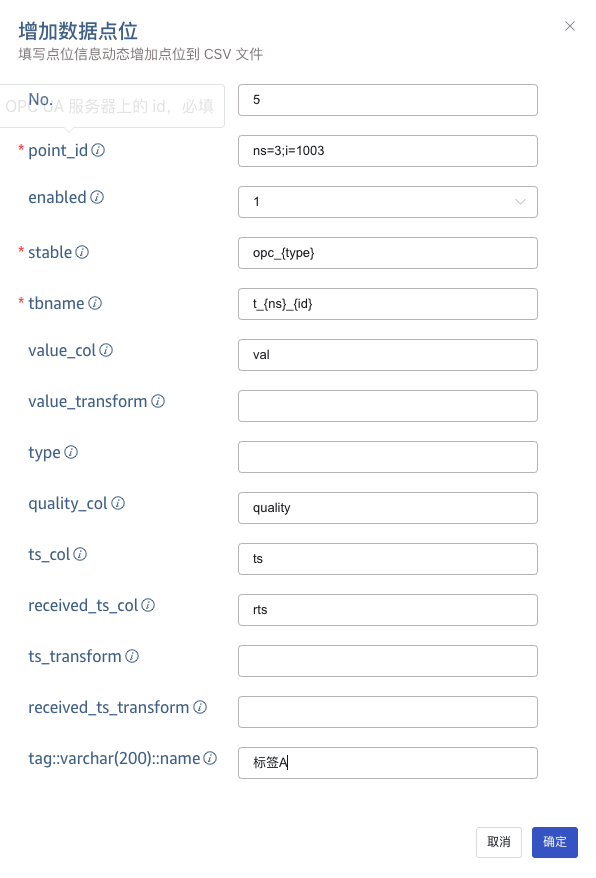

In the pop-up form, fill in the information for the data points.

Click the Confirm button to complete the addition of the data points.
