Overview​

This document describes how to integrate the TDengine data source with the open-source data visualization system Grafana to achieve data visualization and build a monitoring and alert system. With the TDengine plugin, you can easily display data from TDengine tables on Grafana dashboards without the need for complex development work.

Grafana Version Requirements​

TDengine currently supports Grafana version 7.5 and above. It is recommended to use the latest version. Please download and install the corresponding version of Grafana according to your system environment.

Prerequisites​

To add the TDengine data source to Grafana normally, the following preparations are needed.

  • Grafana service has been deployed and is running normally.
    Note: Ensure that the account starting Grafana has write permissions to its installation directory, otherwise you may not be able to install plugins later.
  • TDengine cluster has been deployed and is running normally.
  • taosAdapter has been installed and is running normally. For details, please refer to the taosAdapter user manual

Record the following information:

  • TDengine cluster REST API address, such as: http://tdengine.local:6041.
  • TDengine cluster authentication information, using username and password.

Install Grafana Plugin and Configure Data Source​

For users using Grafana version 7.x or configuring with Grafana Provisioning, you can use the installation script on the Grafana server to automatically install the plugin and add the data source Provisioning configuration file.

bash -c "$(curl -fsSL \
  https://raw.githubusercontent.com/taosdata/grafanaplugin/master/install.sh)" -- \
  -a http://localhost:6041 \
  -u root \
  -p taosdata

After installation, you need to restart the Grafana service for it to take effect.

Save the script and execute ./install.sh --help to view detailed help documentation.

info

In the following text, we use Grafana v11.0.0 as an example. Other versions may have different features, please refer to Grafana's official website.

Dashboard Usage Guide​

This section is organized as follows:

  1. Introduce basic knowledge, including Grafana's built-in variables and custom variables, and TDengine's special syntax support for time-series queries.
  2. Explain how to use the TDengine data source in Grafana to create Dashboards, then provide the special syntax for time-series queries and how to group display data.
  3. Since the configured Dashboard will periodically query TDengine to refresh the display, improper SQL writing can cause serious performance issues, so we provide performance optimization suggestions.
  4. Finally, we use the TDengine monitoring panel TDinsight as an example to demonstrate how to import the Dashboards we provide.

Grafana Built-in Variables and Custom Variables​

The Variable feature in Grafana is very powerful and can be used in Dashboard queries, panel titles, tags, etc., to create more dynamic and interactive Dashboards, enhancing user experience and efficiency.

The main functions and features of variables include:

  • Dynamic data querying: Variables can be used in query statements, allowing users to dynamically change query conditions by selecting different variable values, thus viewing different data views. This is very useful for scenarios that require dynamically displaying data based on user input.

  • Improved reusability: By defining variables, the same configuration or query logic can be reused in multiple places without having to rewrite the same code. This makes maintaining and updating Dashboards simpler and more efficient.

  • Flexible configuration options: Variables offer a variety of configuration options, such as predefined static value lists, dynamically querying values from data sources, regular expression filtering, etc., making the application of variables more flexible and powerful.

Grafana provides both built-in and custom variables, which can be referenced when writing SQL as $variableName, where variableName is the name of the variable. For other referencing methods, please refer to Referencing Methods.

Built-in Variables​

Grafana has built-in variables such as from, to, and interval, all derived from the Grafana plugin panel. Their meanings are as follows:

  • from is the start time of the query range
  • to is the end time of the query range
  • interval is the window split interval

For each query, it is recommended to set the start and end time of the query range, which can effectively reduce the amount of data scanned by the TDengine server during query execution. interval is the size of the window split, and in Grafana version 11, it is calculated based on the time interval and the number of returned points.

In addition to the three common variables mentioned above, Grafana also provides variables such as __timezone, __org, __user, etc. For more details, please refer to Built-in Variables.

Custom Variables​

We can add custom variables in the Dashboard. The usage of custom variables is no different from built-in variables; they are referenced in SQL with $variableName. Custom variables support multiple types, including common types such as Query (query), Constant (constant), Interval (interval), Data source (data source), etc. Custom variables can reference other custom variables, for example, one variable represents a region, and another variable can reference the value of the region to query devices in that region.

Adding a Query Type Variable​

In the Dashboard configuration, select 【Variables】, then click 【New variable】:

  1. In the "Name" field, enter your variable name, here we set the variable name as selected_groups.
  2. In the 【Select variable type】dropdown menu, select "Query" (query). Depending on the selected variable type, configure the corresponding options. For example, if you choose "Query", you need to specify the data source and the query statement to obtain the variable values. Here, we take smart meters as an example, set the query type, select the data source, and configure the SQL as select distinct(groupid) from power.meters where groupid < 3 and ts > $from and ts < $to;
  3. After clicking 【Run Query】at the bottom, you can see the variable values generated based on your configuration in the "Preview of values" section.
  4. Other configurations are not detailed here; after completing the configuration, click the 【Apply】button at the bottom of the page, then click 【Save dashboard】in the upper right corner to save.

After completing the above steps, we have successfully added a new custom variable $selected_groups in the Dashboard. We can later reference this variable in the Dashboard's queries through $selected_groups.

We can also add another custom variable to reference this selected_groups variable, such as adding a query variable named tbname_max_current, with its SQL as select tbname from power.meters where groupid = $selected_groups and ts > $from and ts < $to;

Adding an Interval Type Variable​

We can customize the time window interval to better fit business needs.

  1. In the "Name" field, enter the variable name as interval.
  2. In the 【Select variable type】dropdown menu, select "Interval" (interval).
  3. In the 【Interval options】enter 1s,2s,5s,10s,15s,30s,1m.
  4. Other configurations are not detailed here; after completing the configuration, click the 【Apply】button at the bottom of the page, then click 【Save dashboard】in the upper right corner to save.

After completing the above steps, we have successfully added a new custom variable $interval in the Dashboard. We can later reference this variable in the Dashboard's queries through $interval.

note

When custom variables and Grafana built-in variables have the same name, custom variables are referenced preferentially.

TDengine Time-Series Query Support​

On top of supporting standard SQL, TDengine also offers a series of special query syntaxes that meet the needs of time-series business scenarios, greatly facilitating the development of applications for time series scenarios.

  • The partition by clause can split data by certain dimensions, then perform a series of calculations within the split data space, often replacing group by.
  • The interval clause is used to generate windows of equal time periods.
  • The fill statement specifies the filling mode for missing data in a window interval.
  • Timestamp pseudocolumns If you need to output the time window information corresponding to the aggregation results in the results, you need to use timestamp-related pseudo-columns in the SELECT clause: window start time (_wstart), window end time (_wend), etc.

Detailed introduction to the above features can be found at Distinguished Queries.

Creating a Dashboard​

With the foundational knowledge from earlier, we can configure a time-series data display Dashboard based on the TDengine data source.

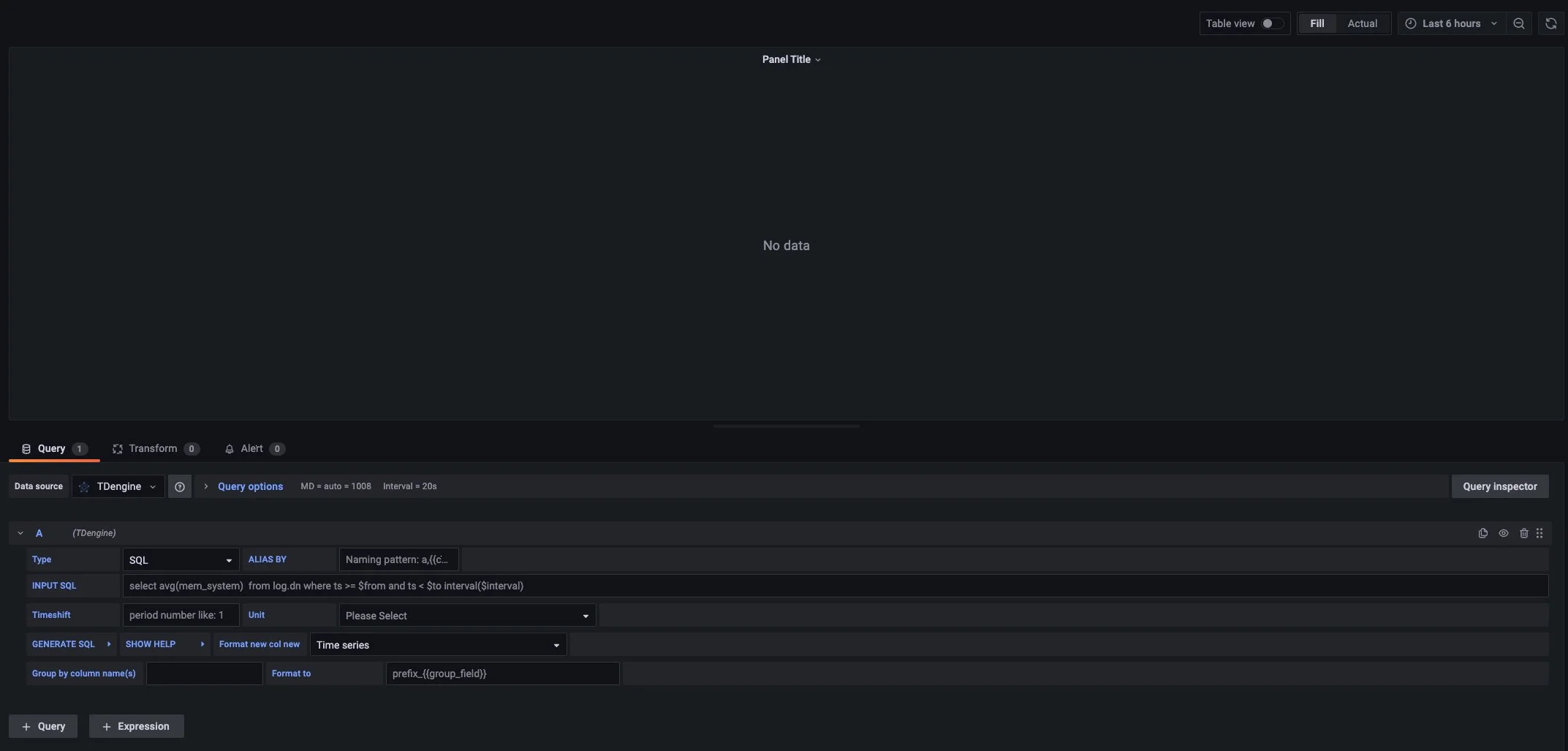

Create a Dashboard on the Grafana main interface, click on 【Add Query】 to enter the panel query page:

As shown in the image above, select the TDengine data source in "Query", and enter the corresponding SQL in the query box below. Continuing with the example of smart meters, to display a beautiful curve, virtual data is used here.

Time-Series Data Display​

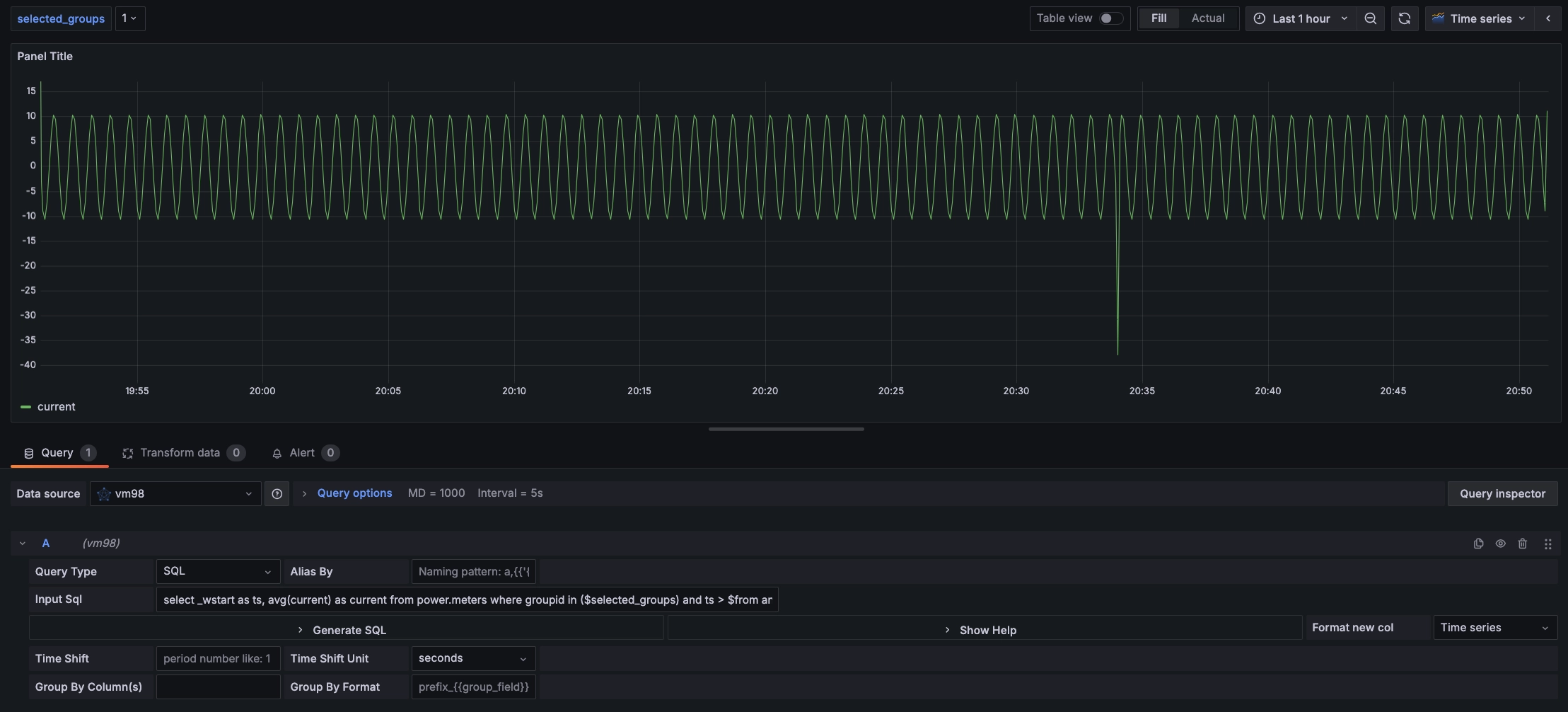

Suppose we want to query the average current size over a period of time, with the time window divided by $interval, and fill with null if data is missing in any time window.

  • “INPUT SQL”: Enter the query statement (the result set of this SQL statement should be two columns and multiple rows), here enter: select _wstart as ts, avg(current) as current from power.meters where groupid in ($selected_groups) and ts > $from and ts < $to interval($interval) fill(null), where from, to, and interval are Grafana built-in variables, and selected_groups is a custom variable.
  • “ALIAS BY”: You can set an alias for the current query.
  • “GENERATE SQL”: Clicking this button will automatically replace the corresponding variables and generate the final execution statement.

In the custom variables at the top, if the value of selected_groups is set to 1, then querying the average value changes of all devices' current in the meters supertable with groupid 1 is shown in the following image:

note

Since the REST interface is stateless, you cannot use the use db statement to switch databases. In the Grafana plugin, SQL statements can specify the database using <db_name>.<table_name>.

Time-Series Data Group Display​

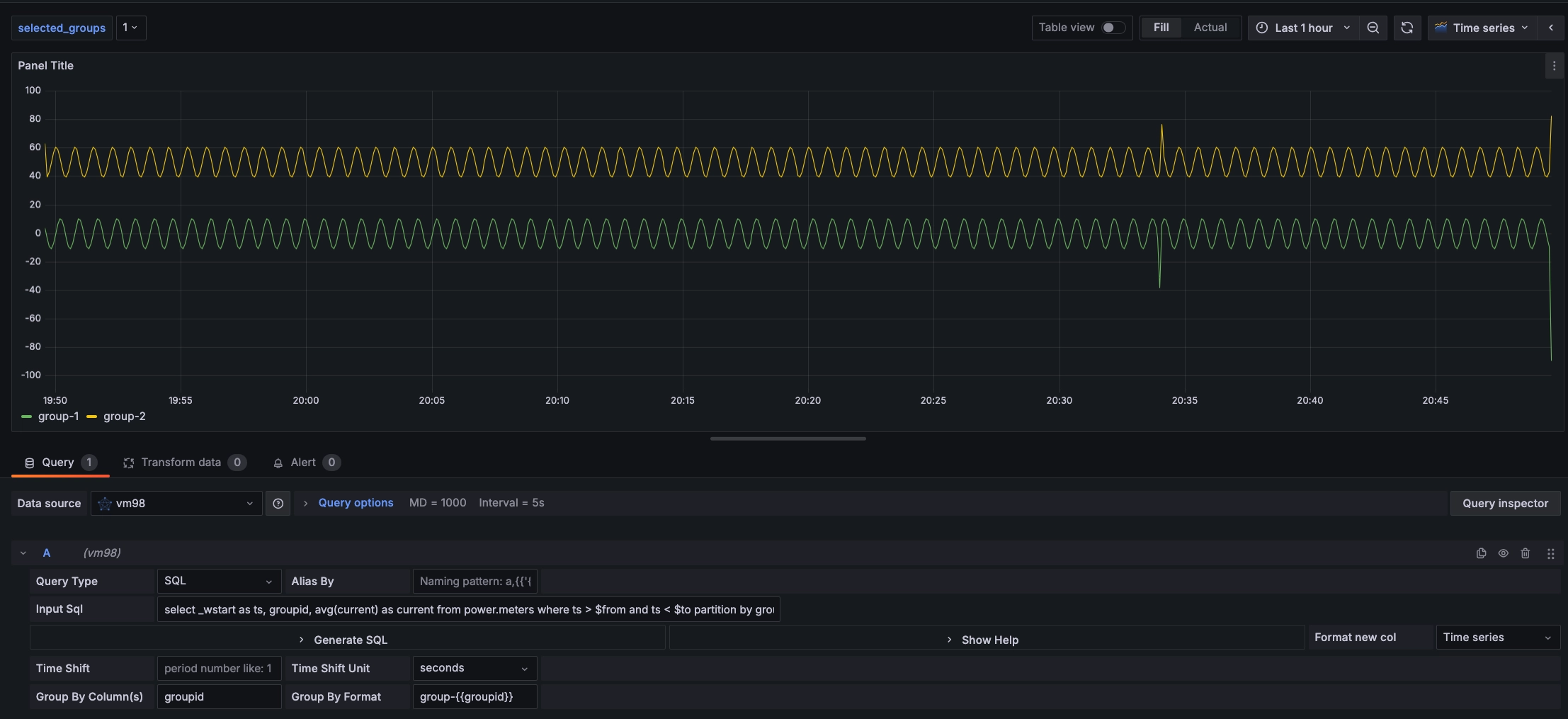

Suppose we want to query the average current size over a period of time and display it grouped by groupid, we can modify the previous SQL to select _wstart as ts, groupid, avg(current) as current from power.meters where ts > $from and ts < $to partition by groupid interval($interval) fill(null)

  • “Group by column(s)”: Comma-separated group by or partition by column names in half-width commas. If it is a group by or partition by query statement, set the “Group by” column to display multidimensional data. Here, set the “Group by” column name as groupid to display data grouped by groupid.
  • “Group By Format”: Legend format for multidimensional data in Group by or Partition by scenarios. For example, in the above INPUT SQL, set the “Group By Format” to groupid-{{groupid}}, and the displayed legend name will be the formatted group name.

After completing the settings, the display grouped by groupid is shown in the following image:

For information on how to use Grafana to create corresponding monitoring interfaces and more about using Grafana, please refer to the official documentation of Grafana.

Performance Optimization Suggestions​

  • Add a time range to all queries, in time-series databases, if a time range is not specified in the query, it will lead to table scanning and poor performance. A common SQL syntax is select column_name from db.table where ts > $from and ts < $to;
  • For queries of the latest state type, we generally recommend enabling cache when creating the database (CACHEMODEL set to last_row or both), a common SQL syntax is select last(column_name) from db.table where ts > $from and ts < $to;

Import Dashboard​

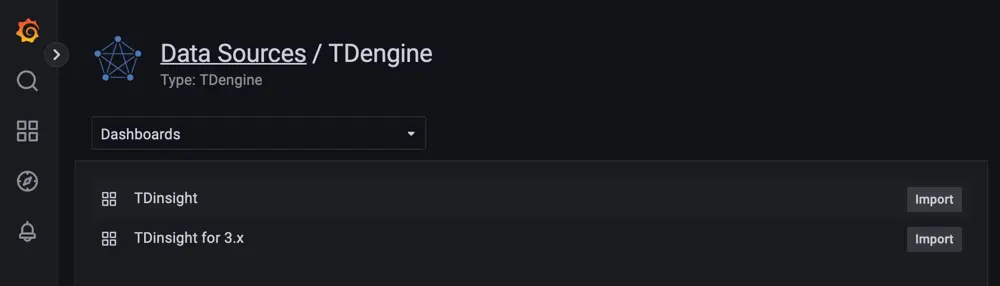

On the data source configuration page, you can import the TDinsight panel for this data source, serving as a monitoring visualization tool for the TDengine cluster. If the TDengine server is version 3.0, please select TDinsight for 3.x for import. Note that TDinsight for 3.x requires running and configuring taoskeeper.

The Dashboard compatible with TDengine 2.* has been released on Grafana: Dashboard 15167 - TDinsight).

Other panels using TDengine as a data source can be searched here. Below is a non-exhaustive list:

  • 15146: Monitoring multiple TDengine clusters
  • 15155: TDengine alert example
  • 15167: TDinsight
  • 16388: Display of node information collected by Telegraf

Alert Configuration​

The TDengine Grafana plugin supports alerts. To configure alerts, follow these steps:

  1. Configure contact points: Set up notification channels, including DingDing, Email, Slack, WebHook, Prometheus Alertmanager, etc.
  2. Configure notification policies: Set up routing of alerts to specific channels, as well as notification timing and repeat frequency
  3. Configure alert rules: Set up detailed alert rules
    3.1 Configure alert name
    3.2 Configure queries and alert trigger conditions
    3.3 Configure rule evaluation strategy
    3.4 Configure tags and alert channels
    3.5 Configure notification content

Alert Configuration Interface Introduction​

In Grafana 11, the alert interface has 6 tabs, namely "Alert rules", "Contact points", "Notification policies", "Silences", "Groups", and "Settings".

  • "Alert rules" displays and configures alert rules
  • "Contact points" includes notification channels such as DingDing, Email, Slack, WebHook, Prometheus Alertmanager, etc.
  • "Notification policies" sets up routing of alerts to specific channels, as well as notification timing and repeat frequency
  • "Silences" configures silent periods for alerts
  • "Groups" displays grouped alerts after they are triggered
  • "Settings" allows modifying alert configurations via JSON

Configuring Contact Points​

This section uses email and Lark as examples to configure contact points.

Configuring Email Contact Points​

Add the SMTP/Emailing and Alerting modules to the configuration file of the Grafana service. (For Linux systems, the configuration file is usually located at /etc/grafana/grafana.ini)

Add the following content to the configuration file:

#################################### SMTP / Emailing ##########################
[smtp]
enabled = true
host = smtp.qq.com:465      #Email used
user = receiver@foxmail.com
password = ***********      #Use mail authorization code
skip_verify = true
from_address = sender@foxmail.com

Then restart the Grafana service (for Linux systems, execute systemctl restart grafana-server.service) to complete the addition.

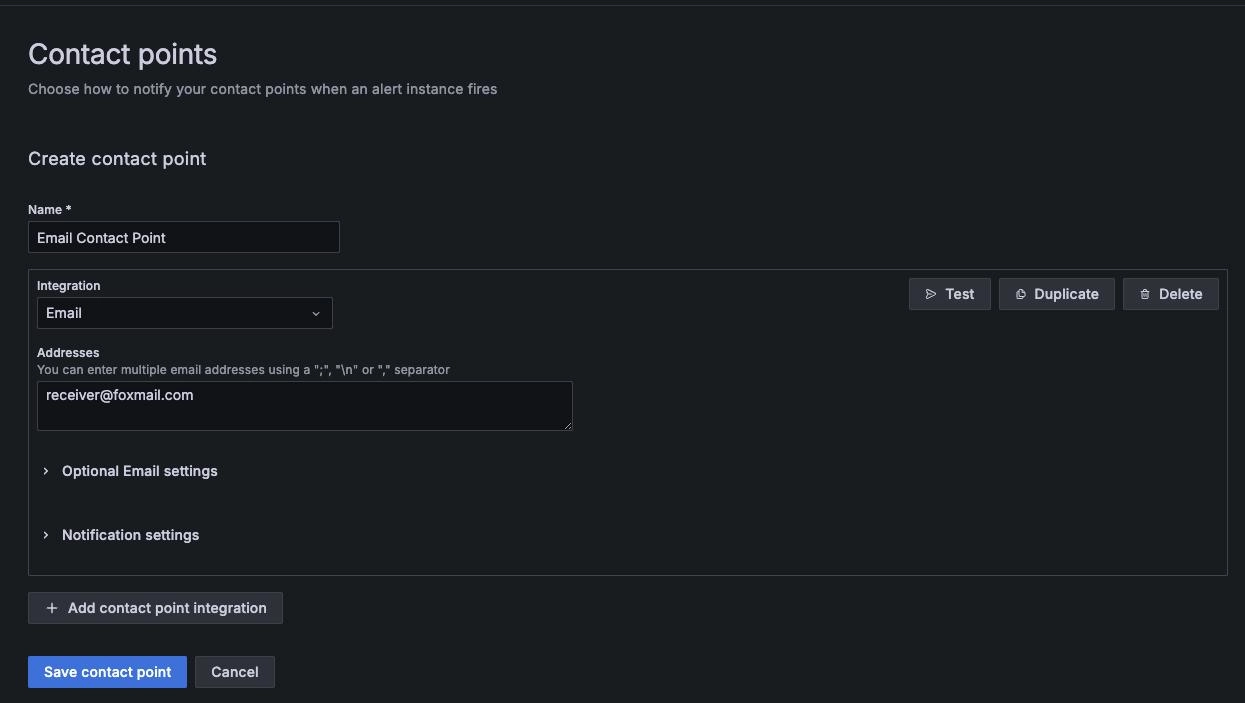

On the Grafana page, go to "Home" -> "Alerting" -> "Contact points" and create a new contact point
"Name": Email Contact Point
"Integration": Select the contact type, here choose Email, fill in the email receiving address, and save the contact point after completion

Configure Notification Policies​

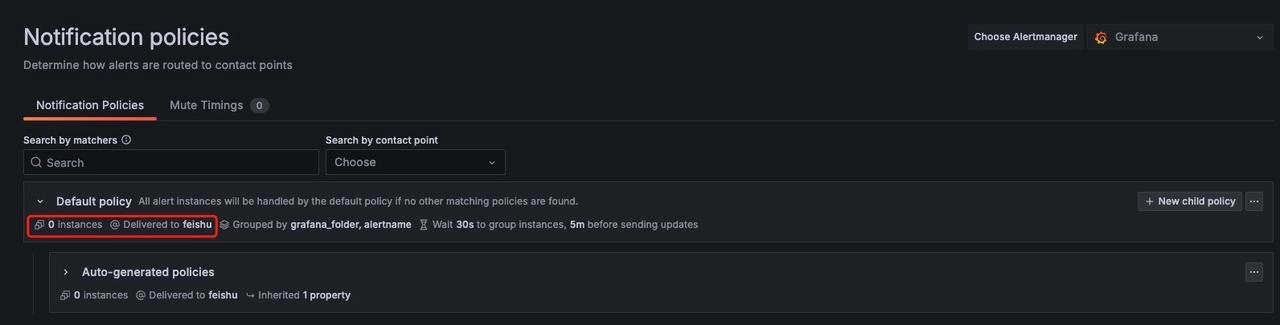

After configuring the contact points, you can see there is a Default Policy

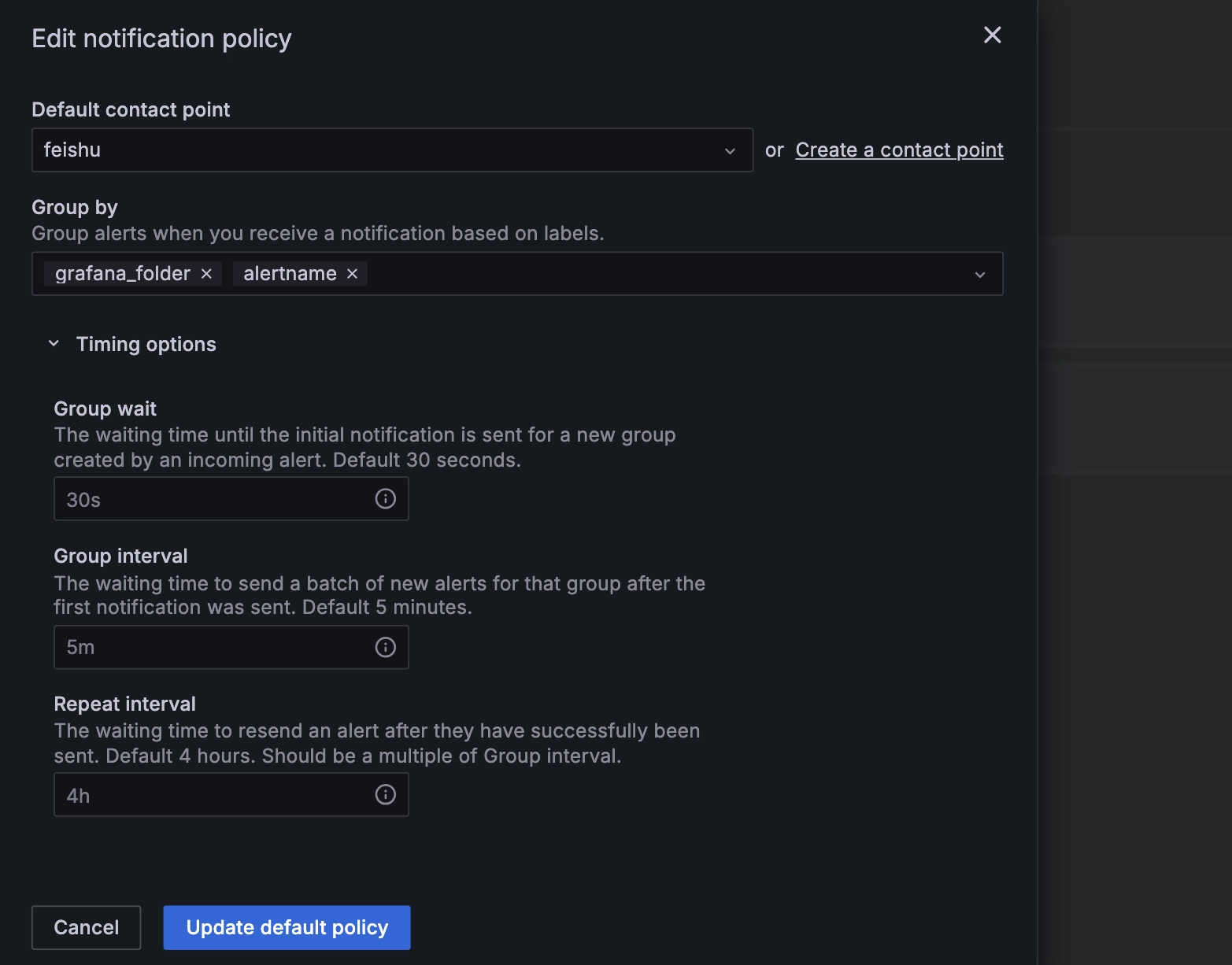

Click on the right side "..." -> "Edit", then edit the default notification policy, a configuration window pops up:

Then configure the following parameters:

  • "Group wait": The wait time before sending the first alert.
  • "Group interval": The wait time to send the next batch of new alerts for the group after the first alert.
  • "Repeat interval": The wait time to resend the alert after a successful alert.

Configure Alert Rules​

Taking the configuration of smart meter alerts as an example, the configuration of alert rules mainly includes alert name, query and alert trigger conditions, rule evaluation strategy, tags, alert channels, and notification copy.

Configure Alert Name​

In the panel where you need to configure the alert, select "Edit" -> "Alert" -> "New alert rule".

"Enter alert rule name" (input alert rule name): Here, enter power meters alert as an example

Configure Query and Alert Trigger Conditions​

In "Define query and alert condition" configure the alert rule.

  1. Choose data source: TDengine Datasource

  2. Query statement:

    select _wstart as ts, groupid, avg(current) as current from power.meters where ts > $from and ts < $to partition by groupid interval($interval) fill(null)

  3. Set "Expression" (expression): Threshold is above 100

  4. Click [Set as alert condition]

  5. "Preview": View the results of the set rules

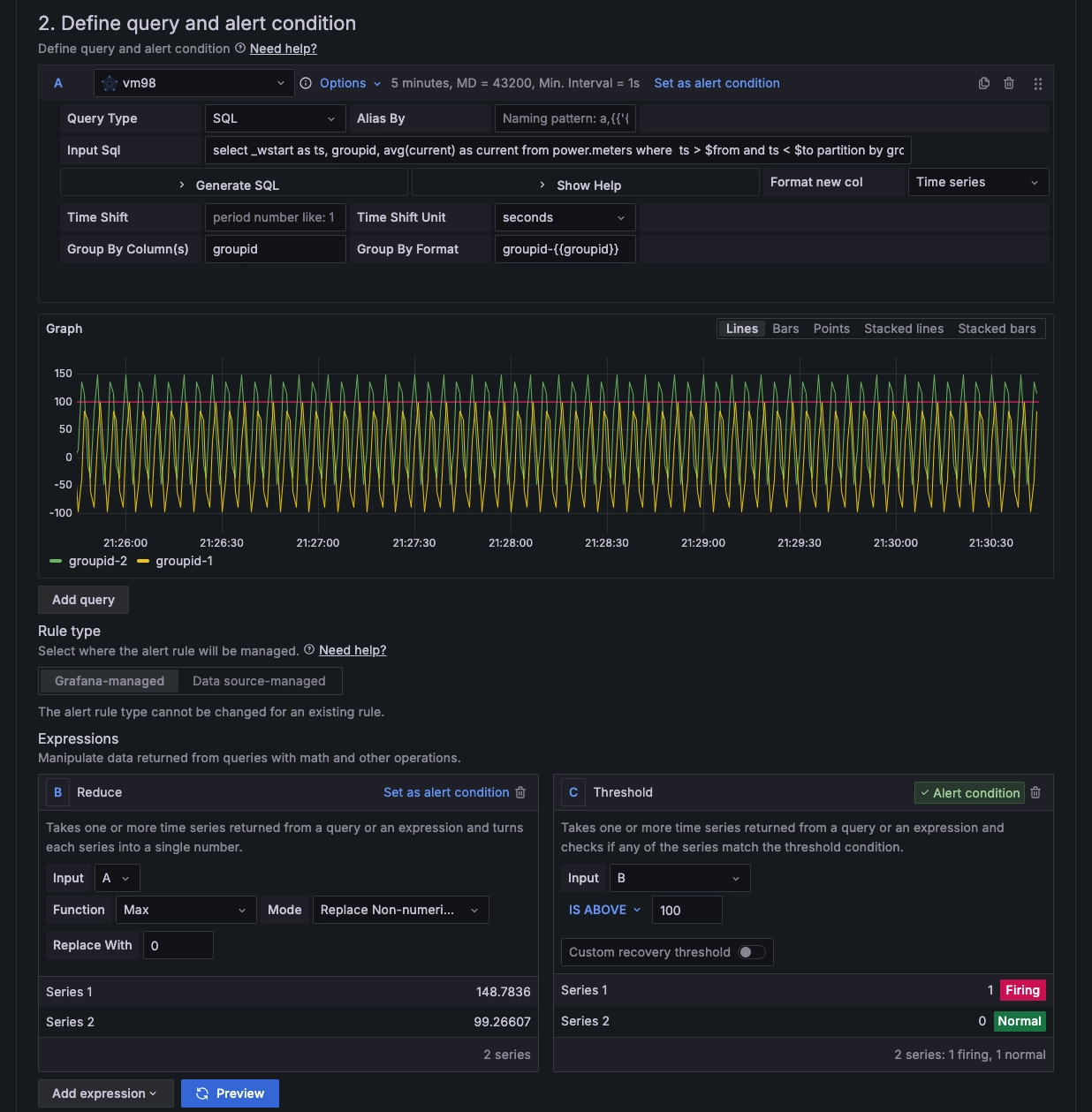

After setting, you can see the image displayed below:

Grafana's "Expression" (expression) supports various operations and calculations on data, which are divided into:

  1. "Reduce": Aggregates the values of a time-series within a selected time range into a single value
    1.1 "Function" is used to set the aggregation method, supporting Min, Max, Last, Mean, Sum, and Count.
    1.2 "Mode" supports the following three:
    • "Strict": If no data is queried, the data will be assigned as NaN.
    • "Drop Non-numeric Value": Remove illegal data results.
    • "Replace Non-numeric Value": If it is illegal data, replace it with a fixed value.
  2. "Threshold": Checks whether the time-series data meets the threshold judgment conditions. Returns 0 when the condition is false, and 1 when true. Supports the following methods:
    • Is above (x > y)
    • Is below (x < y)
    • Is within range (x > y1 AND x < y2)
    • Is outside range (x < y1 AND x > y2)
  3. "Math": Performs mathematical operations on the data of the time-series.
  4. "Resample": Changes the timestamps in each time-series to have a consistent interval, allowing mathematical operations to be performed between them.
  5. "Classic condition (legacy)": Configurable multiple logical conditions to determine whether to trigger an alert.

As shown in the screenshot above, here we set the maximum value to trigger an alarm when it exceeds 100.

Configure Rule Evaluation Strategy​

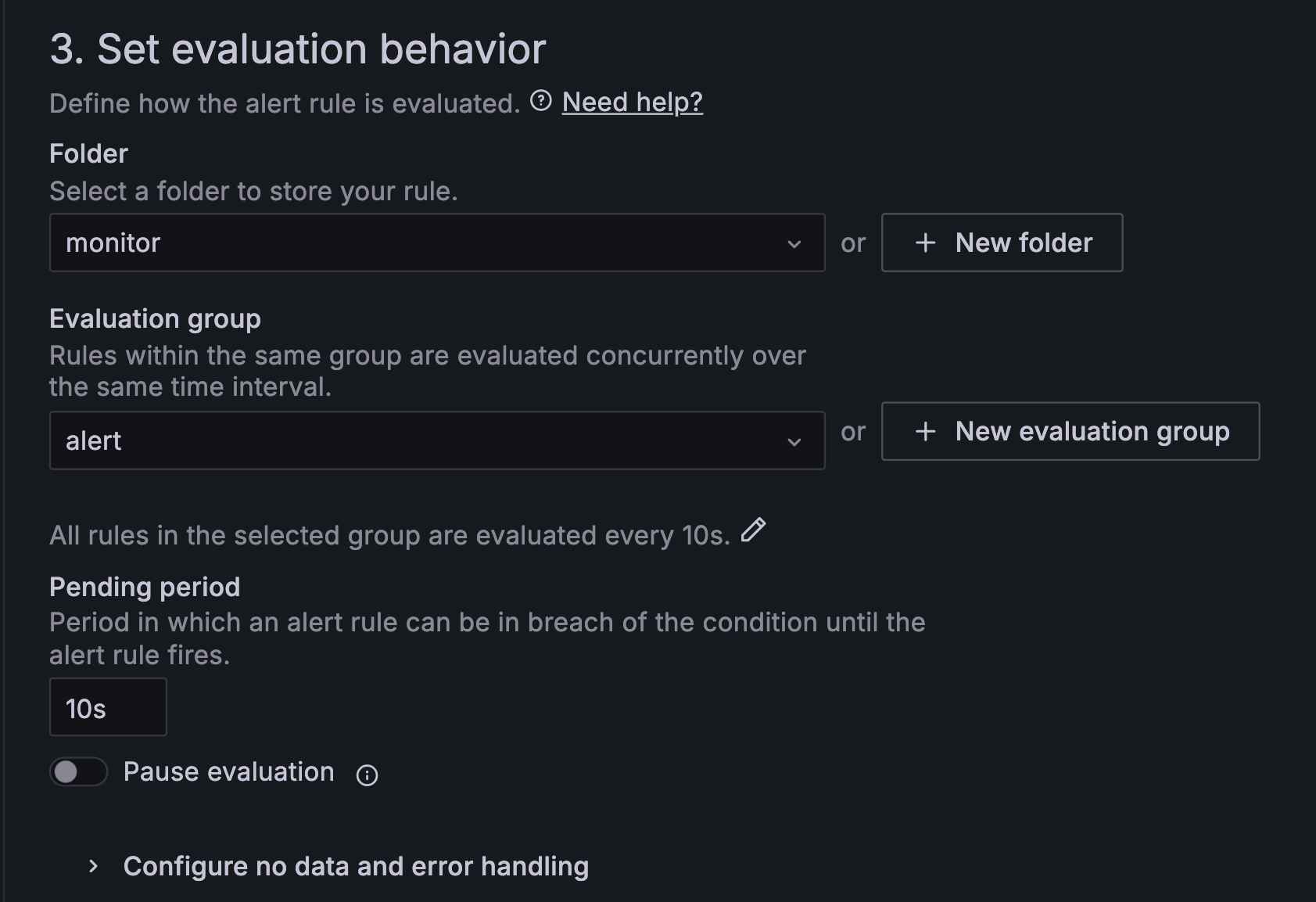

Complete the following configurations:

  • "Folder": Set the directory to which the alert rule belongs.
  • "Evaluation group": Set the evaluation group for the alert rule. "Evaluation group" can either select an existing group or create a new one, where you can set the group name and evaluation interval.
  • "Pending period": After the threshold of the alert rule is triggered, how long the abnormal value continues can trigger an alarm, and a reasonable setting can avoid false alarms.

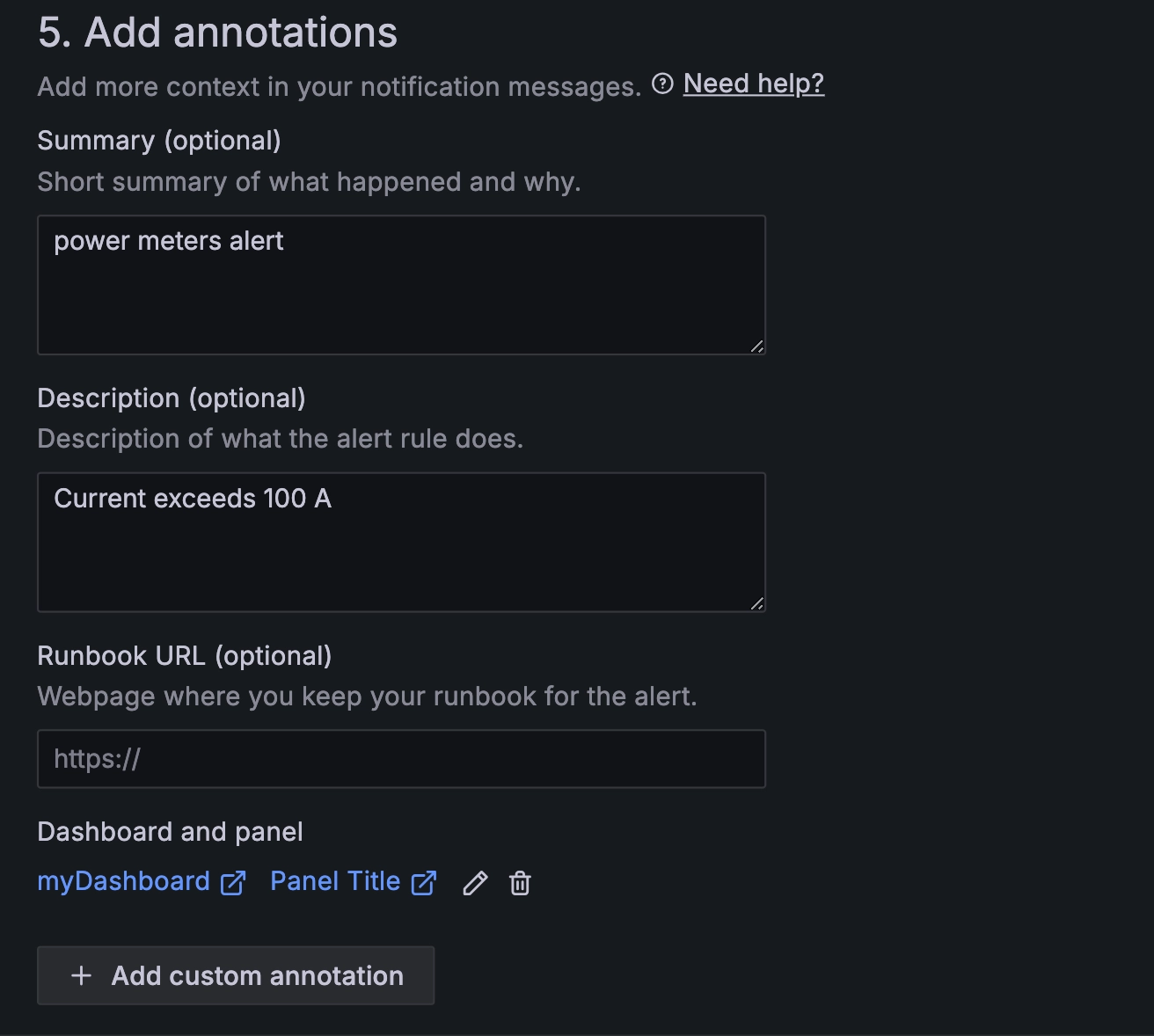

Configure Labels and Alert Channels​

Complete the following configurations:

  • "Labels" adds labels to the rule for searching, silencing, or routing to notification policies.
  • "Contact point" selects a contact point to notify through the set contact point when an alert occurs.

Configure Notification Text​

Set "Summary" and "Description", and if an alert is triggered, you will receive a notification.

SOC 2 Certified
ISO 27001 Certified
ISO 27017 Certified

TDengine™ is a time-series database purpose-built for Industry 4.0 and Industrial IoT. It enables real-time ingestion, storage, analysis, and distribution of petabytes of data per day, generated by billions of sensors and data collectors. With TDengine making big data accessible, valuable, and affordable, digital transformation has never been easier.

© 2022–2024 TDengine

Products
TDengine EnterpriseTDengine Cloud
Learn
DocsBlogWebinars
Company
AboutNewsroomSecurityLegalPartnersNewsletterContact Us
Social
中
