taosAdapter Reference

taosAdapter is a companion tool for TDengine, serving as a bridge and adapter between the TDengine cluster and applications. It provides an easy and efficient way to ingest data directly from data collection agents (such as Telegraf, StatsD, collectd, etc.). It also offers InfluxDB/OpenTSDB compatible data ingestion interfaces, allowing InfluxDB/OpenTSDB applications to be seamlessly ported to TDengine. The connectors of TDengine in various languages communicate with TDengine through the WebSocket interface, hence the taosAdapter must be installed.

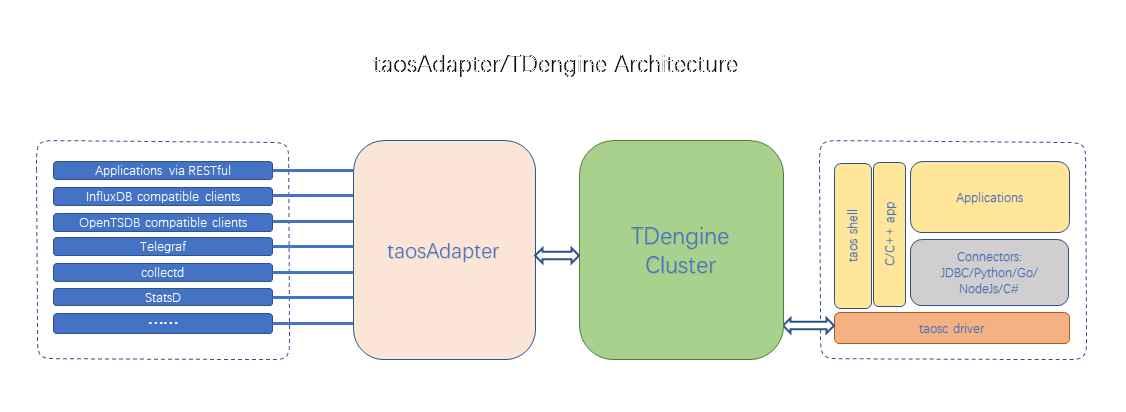

The architecture diagram is as follows:

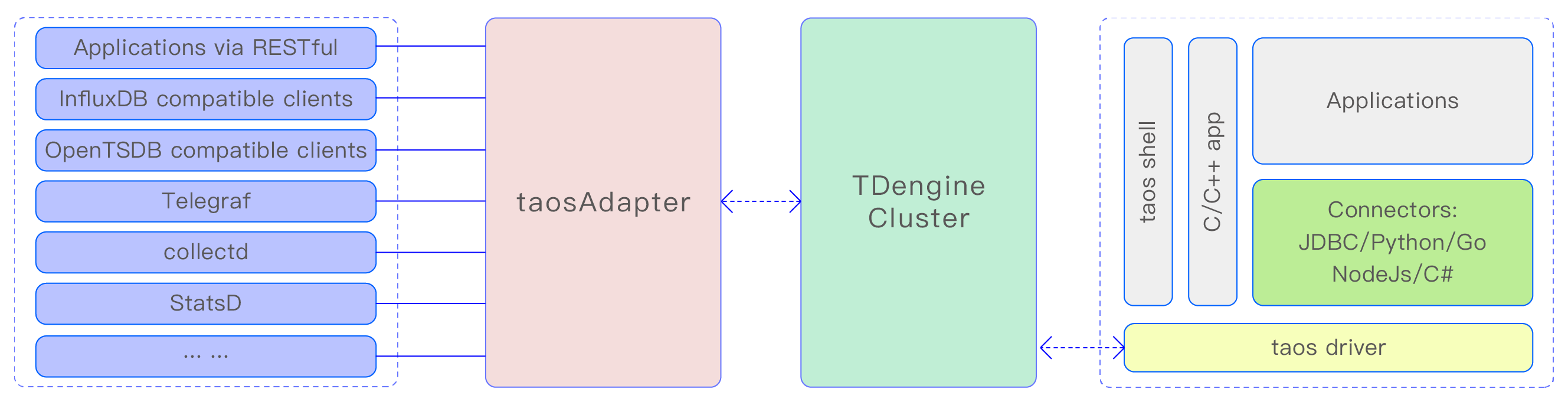

Figure 1. taosAdapter architecture

Feature List

The taosAdapter provides the following features:

• WebSocket Interface: Supports executing SQL, schemaless writing, parameter binding, and data subscription through the WebSocket protocol.
• InfluxDB v1 write interface: https://docs.influxdata.com/influxdb/v2.0/reference/api/influxdb-1x/write/
• Compatible with OpenTSDB JSON and telnet format writing:
  • http://opentsdb.net/docs/build/html/api_http/put.html
  • http://opentsdb .net/docs/build/html/api_telnet/put.html
• collectd data writing: collectd is a system statistics collection daemon, visit https://collectd.org/ for more information.
• StatsD data writing: StatsD is a simple yet powerful daemon for gathering statistics. Visit https://github.com/statsd/statsd for more information.
• icinga2 OpenTSDB writer data writing: icinga2 is a software for collecting check results metrics and performance data. Visit https://icinga.com/docs/icinga-2/latest/doc/14-features/#opentsdb-writer for more information.
• TCollector data writing: TCollector is a client process that collects data from local collectors and pushes it to OpenTSDB. Visit http://opentsdb.net/docs/build/html/user_guide/utilities/tcollector.html for more information.
• node_exporter data collection and writing: node_exporter is an exporter of machine metrics. Visit https://github.com/prometheus/node_exporter for more information.
• Supports Prometheus remote_read and remote_write: remote_read and remote_write are Prometheus's data read-write separation cluster solutions. Visit https://prometheus.io/blog/2019/10/10/remote-read-meets-streaming/#remote-apis for more information.
• RESTful API: RESTful API

WebSocket Interface

Through the WebSocket interface of taosAdapter, connectors in various languages can achieve SQL execution, schemaless writing, parameter binding, and data subscription functionalities. Refer to the Development Guide for more details.

InfluxDB v1 write interface

You can use any client that supports the HTTP protocol to write data in InfluxDB compatible format to TDengine by accessing the Restful interface URL http://<fqdn>:6041/influxdb/v1/write.

Supported InfluxDB parameters are as follows:

• db specifies the database name used by TDengine
• precision the time precision used by TDengine
• u TDengine username
• p TDengine password
• ttl the lifespan of automatically created subtables, determined by the TTL parameter of the first data entry in the subtable, which cannot be updated. For more information, please refer to the TTL parameter in the table creation document.

Note: Currently, InfluxDB's token authentication method is not supported, only Basic authentication and query parameter verification are supported. Example: curl --request POST http://127.0.0.1:6041/influxdb/v1/write?db=test --user "root:taosdata" --data-binary "measurement,host=host1 field1=2i,field2=2.0 1577836800000000000"

OpenTSDB JSON and telnet format writing

You can use any client that supports the HTTP protocol to write data in OpenTSDB compatible format to TDengine by accessing the Restful interface URL http://<fqdn>:6041/<APIEndPoint>. EndPoint as follows:

/opentsdb/v1/put/json/<db>
/opentsdb/v1/put/telnet/<db>

collectd data writing

collectd uses a plugin mechanism to write collected monitoring data to different data storage software in various formats. TDengine supports writing data from both the collectd write_tsdb plugin and collectd binary data.

The collectd write_tsdb plugin is an official collectd plugin that converts monitoring data into the OpenTSDB protocol format and sends it to backend storage systems.

Writing Data via collectd write_tsdb Plugin

Configuring taosAdapter

Method to configure taosAdapter to receive collectd write_tsdb plugin data:

• Enable the configuration item in the taosAdapter configuration file (default location is /etc/taos/taosadapter.toml)

  ...
  [opentsdb_telnet]
  enable = true
  maxTCPConnections = 250
  tcpKeepAlive = false
  dbs = ["opentsdb_telnet", "collectd", "icinga2", "tcollector"]
  ports = [6046, 6047, 6048, 6049]
  user = "root"
  password = "taosdata"
  ...

  The default database name written by taosAdapter is collectd, but you can also modify the dbs item in the taosAdapter configuration file to specify a different name. Fill in user and password with the actual TDengine configuration values. After modifying the configuration file, taosAdapter needs to be restarted.

• You can also use taosAdapter command line parameters or set environment variables to start, to enable taosAdapter to receive collectd data, for more details please refer to the taosAdapter reference manual.

Configuring collectd

Modify the related configuration items in the collectd configuration file (default location /etc/collectd/collectd.conf).

LoadPlugin network
<Plugin network>
         Server "<taosAdapter's host>" "<port for collectd direct>"
</Plugin>

Where <taosAdapter's host> should be filled with the domain name or IP address of the server running taosAdapter. <port for collectd direct> should be filled with the port used by taosAdapter to receive collectd data (default is 6045).

Example as follows:

LoadPlugin network
<Plugin network>
         Server "127.0.0.1" "6045"
</Plugin>

Writing collectd Binary Protocol Data

Configuring taosAdapter

Method to configure taosAdapter to receive collectd binary data:

• Enable the configuration item in the taosAdapter configuration file (default location is /etc/taos/taosadapter.toml)

  ...
  [collectd]
  enable = true
  port = 6045
  db = "collectd"
  user = "root"
  password = "taosdata"
  worker = 10
  ...

  The default database name written by taosAdapter is collectd, but you can also modify the db item in the taosAdapter configuration file to specify a different name. Fill in user and password with the actual TDengine configuration values. After modifying the configuration file, taosAdapter needs to be restarted.

• You can also use taosAdapter command line parameters or set environment variables to start, to enable taosAdapter to receive collectd data, for more details please refer to the taosAdapter reference manual.

Configuring collectd

Modify the related configuration items in the collectd configuration file (default location /etc/collectd/collectd.conf).

LoadPlugin write_tsdb
<Plugin write_tsdb>
        <Node>
                Host "<taosAdapter's host>"
                Port "<port for collectd write_tsdb plugin>"
                ...
        </Node>
</Plugin>

Where <taosAdapter's host> should be filled with the domain name or IP address of the server running taosAdapter. <port for collectd write_tsdb plugin> should be filled with the port used by taosAdapter to receive collectd write_tsdb plugin data (default is 6047).

LoadPlugin write_tsdb
<Plugin write_tsdb>
        <Node>
                Host "127.0.0.1"
                Port "6047"
                HostTags "status=production"
                StoreRates false
                AlwaysAppendDS false
        </Node>
</Plugin>

Then restart collectd:

systemctl restart collectd

StatsD data writing

Configure taosAdapter

Method to configure taosAdapter to receive StatsD data:

• Enable the configuration item in the taosAdapter configuration file (default location /etc/taos/taosadapter.toml)

  ...
  [statsd]
  enable = true
  port = 6044
  db = "statsd"
  user = "root"
  password = "taosdata"
  worker = 10
  gatherInterval = "5s"
  protocol = "udp"
  maxTCPConnections = 250
  tcpKeepAlive = false
  allowPendingMessages = 50000
  deleteCounters = true
  deleteGauges = true
  deleteSets = true
  deleteTimings = true
  ...

  The default database name written by taosAdapter is statsd, but you can also modify the db item in the taosAdapter configuration file to specify a different name. Fill in the user and password with the actual TDengine configuration values. After modifying the configuration file, taosAdapter needs to be restarted.

• You can also use taosAdapter command line arguments or set environment variables to enable the taosAdapter to receive StatsD data. For more details, please refer to the taosAdapter reference manual.

Configure StatsD

To use StatsD, download its source code. Modify its configuration file according to the example file exampleConfig.js found in the root directory of the local source code download. Replace <taosAdapter's host> with the domain name or IP address of the server running taosAdapter, and <port for StatsD> with the port that taosAdapter uses to receive StatsD data (default is 6044).

Add to the backends section "./backends/repeater"
Add to the repeater section { host:'<taosAdapter's host>', port: <port for StatsD>}

Example configuration file:

{
port: 8125
, backends: ["./backends/repeater"]
, repeater: [{ host: '127.0.0.1', port: 6044}]
}

After adding the following content, start StatsD (assuming the configuration file is modified to config.js).

npm install
node stats.js config.js &

icinga2 OpenTSDB writer data writing

Configuring taosAdapter

Method to configure taosAdapter to receive icinga2 data:

• Enable the configuration item in the taosAdapter configuration file (default location /etc/taos/taosadapter.toml)

  ...
  [opentsdb_telnet]
  enable = true
  maxTCPConnections = 250
  tcpKeepAlive = false
  dbs = ["opentsdb_telnet", "collectd", "icinga2", "tcollector"]
  ports = [6046, 6047, 6048, 6049]
  user = "root"
  password = "taosdata"
  ...

  The default database name written by taosAdapter is icinga2, but you can also modify the dbs item in the taosAdapter configuration file to specify a different name. Fill in user and password with the actual TDengine configuration values. taosAdapter needs to be restarted after modifications.

• You can also use taosAdapter command line parameters or set environment variables to enable taosAdapter to receive icinga2 data, for more details please refer to the taosAdapter reference manual

Configuring icinga2

• Enable icinga2's opentsdb-writer (reference link https://icinga.com/docs/icinga-2/latest/doc/14-features/#opentsdb-writer)

• Modify the configuration file /etc/icinga2/features-enabled/opentsdb.conf filling in <taosAdapter's host> with the domain name or IP address of the server running taosAdapter, <port for icinga2> with the corresponding port supported by taosAdapter for receiving icinga2 data (default is 6048)

  object OpenTsdbWriter "opentsdb" {
    host = "<taosAdapter's host>"
    port = <port for icinga2>
  }

  Example file:

  object OpenTsdbWriter "opentsdb" {
    host = "127.0.0.1"
    port = 6048
  }

TCollector data writing

Configuring taosAdapter

To configure taosAdapter to receive data from TCollector:

• Enable the configuration in the taosAdapter configuration file (default location /etc/taos/taosadapter.toml)

  ...
  [opentsdb_telnet]
  enable = true
  maxTCPConnections = 250
  tcpKeepAlive = false
  dbs = ["opentsdb_telnet", "collectd", "icinga2", "tcollector"]
  ports = [6046, 6047, 6048, 6049]
  user = "root"
  password = "taosdata"
  ...

  The default database name that taosAdapter writes to is tcollector, but you can specify a different name by modifying the dbs option in the taosAdapter configuration file. Fill in the user and password with the actual values configured in TDengine. After modifying the configuration file, taosAdapter needs to be restarted.

• You can also use taosAdapter command line arguments or set environment variables to enable the taosAdapter to receive tcollector data. For more details, please refer to the taosAdapter reference manual.

Configuring TCollector

To use TCollector, download its source code. Its configuration options are in its source code. Note: There are significant differences between different versions of TCollector; this only refers to the latest code in the current master branch (git commit: 37ae920).

Modify the contents of collectors/etc/config.py and tcollector.py. Change the original address pointing to the OpenTSDB host to the domain name or IP address where taosAdapter is deployed, and change the port to the corresponding port supported by taosAdapter for TCollector use (default is 6049).

Example of git diff output for source code modifications:

index e7e7a1c..ec3e23c 100644
--- a/collectors/etc/config.py
+++ b/collectors/etc/config.py
@@ -59,13 +59,13 @@ def get_defaults():
         'http_password': False,
         'reconnectinterval': 0,
         'http_username': False,
-        'port': 4242,
+        'port': 6049,
         'pidfile': '/var/run/tcollector.pid',
         'http': False,
         'http_api_path': "api/put",
         'tags': [],
         'remove_inactive_collectors': False,
-        'host': '',
+        'host': '127.0.0.1',
         'logfile': '/var/log/tcollector.log',
         'cdir': default_cdir,
         'ssl': False,
diff --git a/tcollector.py b/tcollector.py
index 21f9b23..4c71ba2 100755
--- a/tcollector.py
+++ b/tcollector.py
@@ -64,7 +64,7 @@ ALIVE = True
 # exceptions, something is not right and tcollector will shutdown.
 # Hopefully some kind of supervising daemon will then restart it.
 MAX_UNCAUGHT_EXCEPTIONS = 100
-DEFAULT_PORT = 4242
+DEFAULT_PORT = 6049
 MAX_REASONABLE_TIMESTAMP = 2209212000  # Good until Tue  3 Jan 14:00:00 GMT 2040
 # How long to wait for datapoints before assuming
 # a collector is dead and restarting it
@@ -943,13 +943,13 @@ def parse_cmdline(argv):
             'http_password': False,
             'reconnectinterval': 0,
             'http_username': False,
-            'port': 4242,
+            'port': 6049,
             'pidfile': '/var/run/tcollector.pid',
             'http': False,
             'http_api_path': "api/put",
             'tags': [],
             'remove_inactive_collectors': False,
-            'host': '',
+            'host': '127.0.0.1',
             'logfile': '/var/log/tcollector.log',
             'cdir': default_cdir,
             'ssl': False,

node_exporter data collection and writing

An exporter used by Prometheus that exposes hardware and operating system metrics from *NIX kernels

• Enable configuration of taosAdapter node_exporter.enable
• Set the relevant configuration for node_exporter
• Restart taosAdapter

Supports Prometheus remote_read and remote_write

Configuring Prometheus is done by editing the Prometheus configuration file prometheus.yml (default location /etc/prometheus/prometheus.yml).

Configure Third-Party Database Address

Set the remote_read url and remote_write url to point to the domain name or IP address of the server running the taosAdapter service, the REST service port (taosAdapter defaults to 6041), and the name of the database you want to write to in TDengine, ensuring the URLs are formatted as follows:

• remote_read url: http://<taosAdapter's host>:<REST service port>/prometheus/v1/remote_read/<database name>
• remote_write url: http://<taosAdapter's host>:<REST service port>/prometheus/v1/remote_write/<database name>

Configure Basic Authentication

• username: <TDengine's username>
• password: <TDengine's password>

Example configuration of remote_write and remote_read in the prometheus.yml file

remote_write:
  - url: "http://localhost:6041/prometheus/v1/remote_write/prometheus_data"
    basic_auth:
      username: root
      password: taosdata

remote_read:
  - url: "http://localhost:6041/prometheus/v1/remote_read/prometheus_data"
    basic_auth:
      username: root
      password: taosdata
    remote_timeout: 10s
    read_recent: true

RESTful API

You can use any client that supports the HTTP protocol to write data to TDengine or query data from TDengine by accessing the RESTful interface URL http://<fqdn>:6041/rest/sql. For details, please refer to the REST API documentation.

Installation

taosAdapter is part of the TDengine server software. If you are using TDengine server, you do not need any additional steps to install taosAdapter. If you need to deploy taosAdapter separately from the TDengine server, you should install the complete TDengine on that server to install taosAdapter. If you need to compile taosAdapter from source code, you can refer to the Build taosAdapter document.

After the installation is complete, you can start the taosAdapter service using the command systemctl start taosadapter.

Configuration

taosAdapter supports configuration through command-line parameters, environment variables, and configuration files. The default configuration file is /etc/taos/taosadapter.toml, and you can specify the configuration file using the -c or --config command-line parameter..

Command-line parameters take precedence over environment variables, which take precedence over configuration files. The command-line usage is arg=val, such as taosadapter -p=30000 --debug=true.

See the example configuration file at example/config/taosadapter.toml.

Basic Configuration

The basic configuration parameters for taosAdapter are as follows:

• debug: Whether to enable debug mode (pprof)

  • When set to true (default): Enables Go pprof debug mode, allowing access to debug information via http://<fqdn>:<port>/debug/pprof.
  • When set to false: Disables debug mode, preventing access to debug information.

• instanceId: The instance ID of taosAdapter, used to distinguish logs from different instances. Default value: 32.

• port: The port on which taosAdapter provides HTTP/WebSocket services. Default value: 6041.

• taosConfigDir: The configuration file directory for TDengine. Default value: /etc/taos. The taos.cfg file in this directory will be loaded.

Starting from version 3.3.4.0, taosAdapter supports setting the number of concurrent calls for invoking C methods:

• maxAsyncConcurrentLimit

  Sets the maximum number of concurrent calls for C asynchronous methods (0 means using the number of CPU cores).

• maxSyncConcurrentLimit

  Sets the maximum number of concurrent calls for C synchronous methods (0 means using the number of CPU cores).

Cross-Origin Configuration

When making API calls from the browser, please configure the following Cross-Origin Resource Sharing (CORS) parameters based on your actual situation:

• cors.allowAllOrigins: Whether to allow all origins to access, default is true.
• cors.allowOrigins: A comma-separated list of origins allowed to access. Multiple origins can be specified.
• cors.allowHeaders: A comma-separated list of request headers allowed for cross-origin access. Multiple headers can be specified.
• cors.exposeHeaders: A comma-separated list of response headers exposed for cross-origin access. Multiple headers can be specified.
• cors.allowCredentials: Whether to allow cross-origin requests to include user credentials, such as cookies, HTTP authentication information, or client SSL certificates.
• cors.allowWebSockets: Whether to allow WebSockets connections.

If you are not making API calls through a browser, you do not need to worry about these configurations.

The above configurations take effect for the following interfaces:

• RESTful API requests
• WebSocket API requests
• InfluxDB v1 write interface
• OpenTSDB HTTP write interface

For details about the CORS protocol, please refer to: https://www.w3.org/wiki/CORS_Enabled or https://developer.mozilla.org/docs/Web/HTTP/CORS.

Connection Pool Configuration

taosAdapter uses a connection pool to manage connections to TDengine, improving concurrency performance and resource utilization. The connection pool configuration applies to the following interfaces, and these interfaces share a single connection pool:

• RESTful API requests
• InfluxDB v1 write interface
• OpenTSDB JSON and telnet format writing
• Telegraf data writing
• collectd data writing
• StatsD data writing
• node_exporter data collection writing
• Prometheus remote_read and remote_write

The configuration parameters for the connection pool are as follows:

• pool.maxConnect: The maximum number of connections allowed in the pool, default is twice the number of CPU cores. It is recommended to keep the default setting.
• pool.maxIdle: The maximum number of idle connections in the pool, default is the same as pool.maxConnect. It is recommended to keep the default setting.
• pool.idleTimeout: Connection idle timeout, default is never timeout. It is recommended to keep the default setting.
• pool.waitTimeout: Timeout for obtaining a connection from the pool, default is set to 60 seconds. If a connection is not obtained within the timeout period, HTTP status code 503 will be returned. This parameter is available starting from version 3.3.3.0.
• pool.maxWait: The maximum number of requests waiting to get a connection in the pool, default is 0, which means no limit. When the number of queued requests exceeds this value, new requests will return HTTP status code 503. This parameter is available starting from version 3.3.3.0.

HTTP Response Code Configuration

taosAdapter uses the parameter httpCodeServerError to set whether to return a non-200 HTTP status code when the C interface returns an error. When set to true, it will return different HTTP status codes based on the error code returned by C. See HTTP Response Codes for details.

This configuration only affects the RESTful interface.

Parameter Description:

• httpCodeServerError:
  • When set to true: Map the error code returned by the C interface to the corresponding HTTP status code.
  • When set to false: Regardless of the error returned by the C interface, always return the HTTP status code 200 (default value).

Memory limit configuration

taosAdapter will monitor the memory usage during its operation and adjust it through two thresholds. The valid value range is an integer from 1 to 100, and the unit is the percentage of system physical memory.

This configuration only affects the following interfaces:

• RESTful interface request
• InfluxDB v1 write interface
• OpenTSDB HTTP write interface
• Prometheus remote_read and remote_write interfaces

Parameter Description

• pauseQueryMemoryThreshold:
  • When memory usage exceeds this threshold, taosAdapter will stop processing query requests.
  • Default value: 70 (i.e. 70% of system physical memory).
• pauseAllMemoryThreshold:
  • When memory usage exceeds this threshold, taosAdapter will stop processing all requests (including writes and queries).
  • Default value: 80 (i.e. 80% of system physical memory).

When memory usage falls below the threshold, taosAdapter will automatically resume the corresponding function.

HTTP return content

• When pauseQueryMemoryThreshold is exceeded:

  • HTTP status code: 503
  • Return content: "query memory exceeds threshold"

• When pauseAllMemoryThreshold is exceeded:

  • HTTP status code: 503
  • Return content: "memory exceeds threshold"

Status check interface

The memory status of taosAdapter can be checked through the following interface:

• Normal status: http://<fqdn>:6041/-/ping returns code 200.
• Memory exceeds threshold:
  • If the memory exceeds pauseAllMemoryThreshold, code 503 is returned.
  • If the memory exceeds pauseQueryMemoryThreshold and the request parameter contains action=query, code 503 is returned.

Related configuration parameters

• monitor.collectDuration: memory monitoring interval, default value is 3s, environment variable is TAOS_MONITOR_COLLECT_DURATION.
• monitor.incgroup: whether to run in a container (set to true for running in a container), default value is false, environment variable is TAOS_MONITOR_INCGROUP.
• monitor.pauseQueryMemoryThreshold: memory threshold (percentage) for query request pause, default value is 70, environment variable is TAOS_MONITOR_PAUSE_QUERY_MEMORY_THRESHOLD.
• monitor.pauseAllMemoryThreshold: memory threshold (percentage) for query and write request pause, default value is 80, environment variable is TAOS_MONITOR_PAUSE_ALL_MEMORY_THRESHOLD.

You can make corresponding adjustments based on the specific project application scenario and operation strategy, and it is recommended to use operation monitoring software to monitor the system memory status in a timely manner. The load balancer can also check the operation status of taosAdapter through this interface.

Schemaless write create DB configuration

Starting from version 3.0.4.0, taosAdapter provides the parameter smlAutoCreateDB to control whether to automatically create a database (DB) when writing to the schemaless protocol.

The smlAutoCreateDB parameter only affects the following interfaces:

• InfluxDB v1 write interface
• OpenTSDB JSON and telnet format writing
• Telegraf data writing
• collectd data writing
• StatsD data writing
• node_exporter data writing

Parameter Description

• smlAutoCreateDB:
  • When set to true: When writing to the schemaless protocol, if the target database does not exist, taosAdapter will automatically create the database.
  • When set to false: The user needs to manually create the database, otherwise the write will fail (default value).

Number of results returned configuration

taosAdapter provides the parameter restfulRowLimit to control the number of results returned by the HTTP interface.

The restfulRowLimit parameter only affects the return results of the following interfaces:

• RESTful interface
• Prometheus remote_read interface

Parameter Description

• restfulRowLimit:
  • When set to a positive integer: The number of results returned by the interface will not exceed this value.
  • When set to -1: The number of results returned by the interface is unlimited (default value).

Log configuration

The log can be configured with the following parameters:

• log.path

  Specifies the log storage path (Default: "/var/log/taos").

• log.level

  Sets the log level (Default: "info").

• log.keepDays

  Number of days to retain logs (Positive integer, Default: 30).

• log.rotationCount

  Number of log files to rotate (Default: 30).

• log.rotationSize

  Maximum size of a single log file (Supports KB/MB/GB units, Default: "1GB").

• log.compress

  Whether to compress old log files (Default: false).

• log.rotationTime

  Log rotation interval (Deprecated, fixed at 24-hour rotation).

• log.reservedDiskSize

  Disk space reserved for log directory (Supports KB/MB/GB units, Default: "1GB").

• log.enableRecordHttpSql

  Whether to record HTTP SQL requests (Default: false).

• log.sqlRotationCount

  Number of SQL log files to rotate (Default: 2).

• log.sqlRotationSize

  Maximum size of a single SQL log file (Supports KB/MB/GB units, Default: "1GB").

• log.sqlRotationTime

  SQL log rotation interval (Default: 24h).

1. You can set the taosAdapter log output detail level by setting the --log.level parameter or the environment variable TAOS_ADAPTER_LOG_LEVEL. Valid values ​​include: panic, fatal, error, warn, warning, info, debug, and trace.
2. Starting from 3.3.5.0 version, taosAdapter supports dynamic modification of log level through HTTP interface. Users can dynamically adjust the log level by sending HTTP PUT request to /config interface. The authentication method of this interface is the same as /rest/sql interface, and the configuration item key-value pair in JSON format must be passed in the request body.

The following is an example of setting the log level to debug through the curl command:

curl --location --request PUT 'http://127.0.0.1:6041/config' \
-u root:taosdata \
--data '{"log.level": "debug"}'

Third-party Data Source Configuration

Collectd Configuration

• collectd.enable

  Enable/disable collectd protocol support (Default: false)

• collectd.port

  Collectd service listening port (Default: 6045)

• collectd.db

  Target database for collectd data (Default: "collectd")

• collectd.user

  Database username (Default: "root")

• collectd.password

  Database password (Default: "taosdata")

• collectd.ttl

  Data time-to-live (Default: 0 = no expiration)

• collectd.worker

  Number of write worker threads (Default: 10)

InfluxDB Configuration

• influxdb.enable

  Enable/disable InfluxDB protocol support (Default: true)

Node Exporter Configuration

• node_exporter.enable

  Enable node_exporter data collection (Default: false)

• node_exporter.db

  Target database name (Default: "node_exporter")

• node_exporter.urls

  Service endpoints (Default: ["http://localhost:9100"])

• node_exporter.gatherDuration

  Collection interval (Default: 5s)

• node_exporter.responseTimeout

  Request timeout (Default: 5s)

• node_exporter.user

  Database username (Default: "root")

• node_exporter.password

  Database password (Default: "taosdata")

• node_exporter.ttl

  Data TTL (Default: 0)

• node_exporter.httpUsername

  HTTP Basic Auth username (Optional)

• node_exporter.httpPassword

  HTTP Basic Auth password (Optional)

• node_exporter.httpBearerTokenString

  HTTP Bearer Token (Optional)

• node_exporter.insecureSkipVerify

  Skip SSL verification (Default: true)

• node_exporter.certFile

  Client certificate path (Optional)

• node_exporter.keyFile

  Client key path (Optional)

• node_exporter.caCertFile

  CA certificate path (Optional)

OpenTSDB Configuration

• opentsdb.enable

  Enable OpenTSDB HTTP protocol (Default: true)

• opentsdb_telnet.enable

  Enable OpenTSDB Telnet (Warning: no auth, Default: false)

• opentsdb_telnet.ports

  Listening ports (Default: [6046,6047,6048,6049])

• opentsdb_telnet.dbs

  Target databases (Default: ["opentsdb_telnet","collectd_tsdb","icinga2_tsdb","tcollector_tsdb"])

• opentsdb_telnet.user

  Database username (Default: "root")

• opentsdb_telnet.password

  Database password (Default: "taosdata")

• opentsdb_telnet.ttl

  Data TTL (Default: 0)

• opentsdb_telnet.batchSize

  Batch write size (Default: 1)

• opentsdb_telnet.flushInterval

  Flush interval (Default: 0s)

• opentsdb_telnet.maxTCPConnections

  Max TCP connections (Default: 250)

• opentsdb_telnet.tcpKeepAlive

  Enable TCP KeepAlive (Default: false)

StatsD Configuration

• statsd.enable

  Enable StatsD protocol (Default: false)

• statsd.port

  Listening port (Default: 6044)

• statsd.protocol

  Transport protocol (Options: tcp/udp/tcp4/udp4, Default: "udp4")

• statsd.db

  Target database (Default: "statsd")

• statsd.user

  Database username (Default: "root")

• statsd.password

  Database password (Default: "taosdata")

• statsd.ttl

  Data TTL (Default: 0)

• statsd.gatherInterval

  Collection interval (Default: 5s)

• statsd.worker

  Worker threads (Default: 10)

• statsd.allowPendingMessages

  Max pending messages (Default: 50000)

• statsd.maxTCPConnections

  Max TCP connections (Default: 250)

• statsd.tcpKeepAlive

  Enable TCP KeepAlive (Default: false)

• statsd.deleteCounters

  Clear counter cache after collection (Default: true)

• statsd.deleteGauges

  Clear gauge cache after collection (Default: true)

• statsd.deleteSets

  Clear sets cache after collection (Default: true)

• statsd.deleteTimings

  Clear timings cache after collection (Default: true)

Prometheus Configuration

• prometheus.enable

  Enable Prometheus protocol (Default: true)

Metrics Reporting Configuration

taosAdapter reports metrics to taosKeeper with these parameters:

• uploadKeeper.enable

  Enable metrics reporting (Default: true)

• uploadKeeper.url

  taosKeeper endpoint (Default: http://127.0.0.1:6043/adapter_report)

• uploadKeeper.interval

  Reporting interval (Default: 15s)

• uploadKeeper.timeout

  Request timeout (Default: 5s)

• uploadKeeper.retryTimes

  Max retries (Default: 3)

• uploadKeeper.retryInterval

  Retry interval (Default: 5s)

Environment Variables

Configuration Parameters and their corresponding environment variables:

Details

Configuration Parameter	Environment Variable
collectd.db	TAOS_ADAPTER_COLLECTD_DB
collectd.enable	TAOS_ADAPTER_COLLECTD_ENABLE
collectd.password	TAOS_ADAPTER_COLLECTD_PASSWORD
collectd.port	TAOS_ADAPTER_COLLECTD_PORT
collectd.ttl	TAOS_ADAPTER_COLLECTD_TTL
collectd.user	TAOS_ADAPTER_COLLECTD_USER
collectd.worker	TAOS_ADAPTER_COLLECTD_WORKER
cors.allowAllOrigins	TAOS_ADAPTER_CORS_ALLOW_ALL_ORIGINS
cors.allowCredentials	TAOS_ADAPTER_CORS_ALLOW_Credentials
cors.allowHeaders	TAOS_ADAPTER_ALLOW_HEADERS
cors.allowOrigins	TAOS_ADAPTER_ALLOW_ORIGINS
cors.allowWebSockets	TAOS_ADAPTER_CORS_ALLOW_WebSockets
cors.exposeHeaders	TAOS_ADAPTER_Expose_Headers
debug	TAOS_ADAPTER_DEBUG
httpCodeServerError	TAOS_ADAPTER_HTTP_CODE_SERVER_ERROR
influxdb.enable	TAOS_ADAPTER_INFLUXDB_ENABLE
instanceId	TAOS_ADAPTER_INSTANCE_ID
log.compress	TAOS_ADAPTER_LOG_COMPRESS
log.enableRecordHttpSql	TAOS_ADAPTER_LOG_ENABLE_RECORD_HTTP_SQL
log.keepDays	TAOS_ADAPTER_LOG_KEEP_DAYS
log.level	TAOS_ADAPTER_LOG_LEVEL
log.path	TAOS_ADAPTER_LOG_PATH
log.reservedDiskSize	TAOS_ADAPTER_LOG_RESERVED_DISK_SIZE
log.rotationCount	TAOS_ADAPTER_LOG_ROTATION_COUNT
log.rotationSize	TAOS_ADAPTER_LOG_ROTATION_SIZE
log.rotationTime	TAOS_ADAPTER_LOG_ROTATION_TIME
log.sqlRotationCount	TAOS_ADAPTER_LOG_SQL_ROTATION_COUNT
log.sqlRotationSize	TAOS_ADAPTER_LOG_SQL_ROTATION_SIZE
log.sqlRotationTime	TAOS_ADAPTER_LOG_SQL_ROTATION_TIME
logLevel	TAOS_ADAPTER_LOG_LEVEL
maxAsyncConcurrentLimit	TAOS_ADAPTER_MAX_ASYNC_CONCURRENT_LIMIT
maxSyncConcurrentLimit	TAOS_ADAPTER_MAX_SYNC_CONCURRENT_LIMIT
monitor.collectDuration	TAOS_ADAPTER_MONITOR_COLLECT_DURATION
monitor.disable	TAOS_ADAPTER_MONITOR_DISABLE
monitor.identity	TAOS_ADAPTER_MONITOR_IDENTITY
monitor.incgroup	TAOS_ADAPTER_MONITOR_INCGROUP
monitor.pauseAllMemoryThreshold	TAOS_ADAPTER_MONITOR_PAUSE_ALL_MEMORY_THRESHOLD
monitor.pauseQueryMemoryThreshold	TAOS_ADAPTER_MONITOR_PAUSE_QUERY_MEMORY_THRESHOLD
node_exporter.caCertFile	TAOS_ADAPTER_NODE_EXPORTER_CA_CERT_FILE
node_exporter.certFile	TAOS_ADAPTER_NODE_EXPORTER_CERT_FILE
node_exporter.db	TAOS_ADAPTER_NODE_EXPORTER_DB
node_exporter.enable	TAOS_ADAPTER_NODE_EXPORTER_ENABLE
node_exporter.gatherDuration	TAOS_ADAPTER_NODE_EXPORTER_GATHER_DURATION
node_exporter.httpBearerTokenString	TAOS_ADAPTER_NODE_EXPORTER_HTTP_BEARER_TOKEN_STRING
node_exporter.httpPassword	TAOS_ADAPTER_NODE_EXPORTER_HTTP_PASSWORD
node_exporter.httpUsername	TAOS_ADAPTER_NODE_EXPORTER_HTTP_USERNAME
node_exporter.insecureSkipVerify	TAOS_ADAPTER_NODE_EXPORTER_INSECURE_SKIP_VERIFY
node_exporter.keyFile	TAOS_ADAPTER_NODE_EXPORTER_KEY_FILE
node_exporter.password	TAOS_ADAPTER_NODE_EXPORTER_PASSWORD
node_exporter.responseTimeout	TAOS_ADAPTER_NODE_EXPORTER_RESPONSE_TIMEOUT
node_exporter.ttl	TAOS_ADAPTER_NODE_EXPORTER_TTL
node_exporter.urls	TAOS_ADAPTER_NODE_EXPORTER_URLS
node_exporter.user	TAOS_ADAPTER_NODE_EXPORTER_USER
opentsdb.enable	TAOS_ADAPTER_OPENTSDB_ENABLE
opentsdb_telnet.batchSize	TAOS_ADAPTER_OPENTSDB_TELNET_BATCH_SIZE
opentsdb_telnet.dbs	TAOS_ADAPTER_OPENTSDB_TELNET_DBS
opentsdb_telnet.enable	TAOS_ADAPTER_OPENTSDB_TELNET_ENABLE
opentsdb_telnet.flushInterval	TAOS_ADAPTER_OPENTSDB_TELNET_FLUSH_INTERVAL
opentsdb_telnet.maxTCPConnections	TAOS_ADAPTER_OPENTSDB_TELNET_MAX_TCP_CONNECTIONS
opentsdb_telnet.password	TAOS_ADAPTER_OPENTSDB_TELNET_PASSWORD
opentsdb_telnet.ports	TAOS_ADAPTER_OPENTSDB_TELNET_PORTS
opentsdb_telnet.tcpKeepAlive	TAOS_ADAPTER_OPENTSDB_TELNET_TCP_KEEP_ALIVE
opentsdb_telnet.ttl	TAOS_ADAPTER_OPENTSDB_TELNET_TTL
opentsdb_telnet.user	TAOS_ADAPTER_OPENTSDB_TELNET_USER
pool.idleTimeout	TAOS_ADAPTER_POOL_IDLE_TIMEOUT
pool.maxConnect	TAOS_ADAPTER_POOL_MAX_CONNECT
pool.maxIdle	TAOS_ADAPTER_POOL_MAX_IDLE
pool.maxWait	TAOS_ADAPTER_POOL_MAX_WAIT
pool.waitTimeout	TAOS_ADAPTER_POOL_WAIT_TIMEOUT
P, port	TAOS_ADAPTER_PORT
prometheus.enable	TAOS_ADAPTER_PROMETHEUS_ENABLE
restfulRowLimit	TAOS_ADAPTER_RESTFUL_ROW_LIMIT
smlAutoCreateDB	TAOS_ADAPTER_SML_AUTO_CREATE_DB
statsd.allowPendingMessages	TAOS_ADAPTER_STATSD_ALLOW_PENDING_MESSAGES
statsd.db	TAOS_ADAPTER_STATSD_DB
statsd.deleteCounters	TAOS_ADAPTER_STATSD_DELETE_COUNTERS
statsd.deleteGauges	TAOS_ADAPTER_STATSD_DELETE_GAUGES
statsd.deleteSets	TAOS_ADAPTER_STATSD_DELETE_SETS
statsd.deleteTimings	TAOS_ADAPTER_STATSD_DELETE_TIMINGS
statsd.enable	TAOS_ADAPTER_STATSD_ENABLE
statsd.gatherInterval	TAOS_ADAPTER_STATSD_GATHER_INTERVAL
statsd.maxTCPConnections	TAOS_ADAPTER_STATSD_MAX_TCP_CONNECTIONS
statsd.password	TAOS_ADAPTER_STATSD_PASSWORD
statsd.port	TAOS_ADAPTER_STATSD_PORT
statsd.protocol	TAOS_ADAPTER_STATSD_PROTOCOL
statsd.tcpKeepAlive	TAOS_ADAPTER_STATSD_TCP_KEEP_ALIVE
statsd.ttl	TAOS_ADAPTER_STATSD_TTL
statsd.user	TAOS_ADAPTER_STATSD_USER
statsd.worker	TAOS_ADAPTER_STATSD_WORKER
taosConfigDir	TAOS_ADAPTER_TAOS_CONFIG_FILE
uploadKeeper.enable	TAOS_ADAPTER_UPLOAD_KEEPER_ENABLE
uploadKeeper.interval	TAOS_ADAPTER_UPLOAD_KEEPER_INTERVAL
uploadKeeper.retryInterval	TAOS_ADAPTER_UPLOAD_KEEPER_RETRY_INTERVAL
uploadKeeper.retryTimes	TAOS_ADAPTER_UPLOAD_KEEPER_RETRY_TIMES
uploadKeeper.timeout	TAOS_ADAPTER_UPLOAD_KEEPER_TIMEOUT
uploadKeeper.url	TAOS_ADAPTER_UPLOAD_KEEPER_URL

Service Management

Starting/Stopping taosAdapter

On Linux systems, the taosAdapter service is managed by default by systemd. Use the command systemctl start taosadapter to start the taosAdapter service. Use the command systemctl stop taosadapter to stop the taosAdapter service.

Upgrading taosAdapter

taosAdapter and TDengine server need to use the same version. Please upgrade taosAdapter by upgrading the TDengine server. taosAdapter deployed separately from taosd must be upgraded by upgrading the TDengine server on its server.

Removing taosAdapter

Use the command rmtaos to remove the TDengine server software, including taosAdapter.

IPv6 Support

Starting from version 3.3.7.0, taosAdapter supports IPv6. No additional configuration is required. taosAdapter automatically detects the system's IPv6 support: when available, it enables IPv6 and simultaneously listens on both IPv4 and IPv6 addresses.

Monitoring Metrics

Currently, taosAdapter only collects monitoring indicators for RESTful/WebSocket related requests. There are no monitoring indicators for other interfaces.

taosAdapter reports monitoring indicators to taosKeeper, which will be written to the monitoring database by taosKeeper. The default is the log database, which can be modified in the taoskeeper configuration file. The following is a detailed introduction to these monitoring indicators.

The adapter_requests table records taosAdapter monitoring data:

Details

field	type	is_tag	comment
ts	TIMESTAMP		data collection timestamp
total	INT UNSIGNED		total number of requests
query	INT UNSIGNED		number of query requests
write	INT UNSIGNED		number of write requests
other	INT UNSIGNED		number of other requests
in_process	INT UNSIGNED		number of requests in process
success	INT UNSIGNED		number of successful requests
fail	INT UNSIGNED		number of failed requests
query_success	INT UNSIGNED		number of successful query requests
query_fail	INT UNSIGNED		number of failed query requests
write_success	INT UNSIGNED		number of successful write requests
write_fail	INT UNSIGNED		number of failed write requests
other_success	INT UNSIGNED		number of successful other requests
other_fail	INT UNSIGNED		number of failed other requests
query_in_process	INT UNSIGNED		number of query requests in process
write_in_process	INT UNSIGNED		number of write requests in process
endpoint	VARCHAR		request endpoint
req_type	NCHAR	tag	request type: 0 for REST, 1 for WebSocket

The adapter_status table records the status data of taosAdapter:

Details

field	type	is_tag	comment
_ts	TIMESTAMP		data collection timestamp
go_heap_sys	DOUBLE		heap memory allocated by Go runtime (bytes)
go_heap_inuse	DOUBLE		heap memory in use by Go runtime (bytes)
go_stack_sys	DOUBLE		stack memory allocated by Go runtime (bytes)
go_stack_inuse	DOUBLE		stack memory in use by Go runtime (bytes)
rss	DOUBLE		actual physical memory occupied by the process (bytes)
ws_query_conn	DOUBLE		current WebSocket connections for /rest/ws endpoint
ws_stmt_conn	DOUBLE		current WebSocket connections for /rest/stmt endpoint
ws_sml_conn	DOUBLE		current WebSocket connections for /rest/schemaless endpoint
ws_ws_conn	DOUBLE		current WebSocket connections for /ws endpoint
ws_tmq_conn	DOUBLE		current WebSocket connections for /rest/tmq endpoint
async_c_limit	DOUBLE		total concurrency limit for the C asynchronous interface
async_c_inflight	DOUBLE		current concurrency for the C asynchronous interface
sync_c_limit	DOUBLE		total concurrency limit for the C synchronous interface
sync_c_inflight	DOUBLE		current concurrency for the C synchronous interface
ws_query_conn_inc	DOUBLE		New connections on /rest/ws interface (Available since v3.3.6.10)
ws_query_conn_dec	DOUBLE		Closed connections on /rest/ws interface (Available since v3.3.6.10)
ws_stmt_conn_inc	DOUBLE		New connections on /rest/stmt interface (Available since v3.3.6.10)
ws_stmt_conn_dec	DOUBLE		Closed connections on /rest/stmt interface (Available since v3.3.6.10)
ws_sml_conn_inc	DOUBLE		New connections on /rest/schemaless interface (Available since v3.3.6.10)
ws_sml_conn_dec	DOUBLE		Closed connections on /rest/schemaless interface (Available since v3.3.6.10)
ws_ws_conn_inc	DOUBLE		New connections on /ws interface (Available since v3.3.6.10)
ws_ws_conn_dec	DOUBLE		Closed connections on /ws interface (Available since v3.3.6.10)
ws_tmq_conn_inc	DOUBLE		New connections on /rest/tmq interface (Available since v3.3.6.10)
ws_tmq_conn_dec	DOUBLE		Closed connections on /rest/tmq interface (Available since v3.3.6.10)
ws_query_sql_result_count	DOUBLE		Current SQL query results held by /rest/ws interface (Available since v3.3.6.10)
ws_stmt_stmt_count	DOUBLE		Current stmt objects held by /rest/stmt interface (Available since v3.3.6.10)
ws_ws_sql_result_count	DOUBLE		Current SQL query results held by /ws interface (Available since v3.3.6.10)
ws_ws_stmt_count	DOUBLE		Current stmt objects held by /ws interface (Available since v3.3.6.10)
ws_ws_stmt2_count	DOUBLE		Current stmt2 objects held by /ws interface (Available since v3.3.6.10)
endpoint	NCHAR	TAG	request endpoint

The adapter_conn_pool table records the connection pool monitoring data of taosAdapter:

Details

field	type	is_tag	comment
_ts	TIMESTAMP		data collection timestamp
conn_pool_total	DOUBLE		maximum connection limit for the connection pool
conn_pool_in_use	DOUBLE		current number of connections in use in the connection pool
endpoint	NCHAR	TAG	request endpoint
user	NCHAR	TAG	username to which the connection pool belongs

Starting from version 3.3.6.10, the adapter_c_interface table has been added to record taosAdapter C interface call metrics:

Details

field	type	is_tag	comment
_ts	TIMESTAMP		Data collection timestamp
taos_connect_total	DOUBLE		Count of total connection attempts
taos_connect_success	DOUBLE		Count of successful connections
taos_connect_fail	DOUBLE		Count of failed connections
taos_close_total	DOUBLE		Count of total close attempts
taos_close_success	DOUBLE		Count of successful closes
taos_schemaless_insert_total	DOUBLE		Count of schemaless insert operations
taos_schemaless_insert_success	DOUBLE		Count of successful schemaless inserts
taos_schemaless_insert_fail	DOUBLE		Count of failed schemaless inserts
taos_schemaless_free_result_total	DOUBLE		Count of schemaless result set releases
taos_schemaless_free_result_success	DOUBLE		Count of successful schemaless result set releases
taos_query_total	DOUBLE		Count of synchronous SQL executions
taos_query_success	DOUBLE		Count of successful synchronous SQL executions
taos_query_fail	DOUBLE		Count of failed synchronous SQL executions
taos_query_free_result_total	DOUBLE		Count of synchronous SQL result set releases
taos_query_free_result_success	DOUBLE		Count of successful synchronous SQL result set releases
taos_query_a_with_reqid_total	DOUBLE		Count of async SQL with request ID
taos_query_a_with_reqid_success	DOUBLE		Count of successful async SQL with request ID
taos_query_a_with_reqid_callback_total	DOUBLE		Count of async SQL callbacks with request ID
taos_query_a_with_reqid_callback_success	DOUBLE		Count of successful async SQL callbacks with request ID
taos_query_a_with_reqid_callback_fail	DOUBLE		Count of failed async SQL callbacks with request ID
taos_query_a_free_result_total	DOUBLE		Count of async SQL result set releases
taos_query_a_free_result_success	DOUBLE		Count of successful async SQL result set releases
tmq_consumer_poll_result_total	DOUBLE		Count of consumer polls with data
tmq_free_result_total	DOUBLE		Count of TMQ data releases
tmq_free_result_success	DOUBLE		Count of successful TMQ data releases
taos_stmt2_init_total	DOUBLE		Count of stmt2 initializations
taos_stmt2_init_success	DOUBLE		Count of successful stmt2 initializations
taos_stmt2_init_fail	DOUBLE		Count of failed stmt2 initializations
taos_stmt2_close_total	DOUBLE		Count of stmt2 closes
taos_stmt2_close_success	DOUBLE		Count of successful stmt2 closes
taos_stmt2_close_fail	DOUBLE		Count of failed stmt2 closes
taos_stmt2_get_fields_total	DOUBLE		Count of stmt2 field fetches
taos_stmt2_get_fields_success	DOUBLE		Count of successful stmt2 field fetches
taos_stmt2_get_fields_fail	DOUBLE		Count of failed stmt2 field fetches
taos_stmt2_free_fields_total	DOUBLE		Count of stmt2 field releases
taos_stmt2_free_fields_success	DOUBLE		Count of successful stmt2 field releases
taos_stmt_init_with_reqid_total	DOUBLE		Count of stmt initializations with request ID
taos_stmt_init_with_reqid_success	DOUBLE		Count of successful stmt initializations with request ID
taos_stmt_init_with_reqid_fail	DOUBLE		Count of failed stmt initializations with request ID
taos_stmt_close_total	DOUBLE		Count of stmt closes
taos_stmt_close_success	DOUBLE		Count of successful stmt closes
taos_stmt_close_fail	DOUBLE		Count of failed stmt closes
taos_stmt_get_tag_fields_total	DOUBLE		Count of stmt tag field fetches
taos_stmt_get_tag_fields_success	DOUBLE		Count of successful stmt tag field fetches
taos_stmt_get_tag_fields_fail	DOUBLE		Count of failed stmt tag field fetches
taos_stmt_get_col_fields_total	DOUBLE		Count of stmt column field fetches
taos_stmt_get_col_fields_success	DOUBLE		Count of successful stmt column field fetches
taos_stmt_get_col_fields_fail	DOUBLE		Count of failed stmt column field fetches
taos_stmt_reclaim_fields_total	DOUBLE		Count of stmt field releases
taos_stmt_reclaim_fields_success	DOUBLE		Count of successful stmt field releases
tmq_get_json_meta_total	DOUBLE		Count of TMQ JSON metadata fetches
tmq_get_json_meta_success	DOUBLE		Count of successful TMQ JSON metadata fetches
tmq_free_json_meta_total	DOUBLE		Count of TMQ JSON metadata releases
tmq_free_json_meta_success	DOUBLE		Count of successful TMQ JSON metadata releases
taos_fetch_whitelist_a_total	DOUBLE		Count of async whitelist fetches
taos_fetch_whitelist_a_success	DOUBLE		Count of successful async whitelist fetches
taos_fetch_whitelist_a_callback_total	DOUBLE		Count of async whitelist callbacks
taos_fetch_whitelist_a_callback_success	DOUBLE		Count of successful async whitelist callbacks
taos_fetch_whitelist_a_callback_fail	DOUBLE		Count of failed async whitelist callbacks
taos_fetch_rows_a_total	DOUBLE		Count of async row fetches
taos_fetch_rows_a_success	DOUBLE		Count of successful async row fetches
taos_fetch_rows_a_callback_total	DOUBLE		Count of async row callbacks
taos_fetch_rows_a_callback_success	DOUBLE		Count of successful async row callbacks
taos_fetch_rows_a_callback_fail	DOUBLE		Count of failed async row callbacks
taos_fetch_raw_block_a_total	DOUBLE		Count of async raw block fetches
taos_fetch_raw_block_a_success	DOUBLE		Count of successful async raw block fetches
taos_fetch_raw_block_a_callback_total	DOUBLE		Count of async raw block callbacks
taos_fetch_raw_block_a_callback_success	DOUBLE		Count of successful async raw block callbacks
taos_fetch_raw_block_a_callback_fail	DOUBLE		Count of failed async raw block callbacks
tmq_get_raw_total	DOUBLE		Count of raw data fetches
tmq_get_raw_success	DOUBLE		Count of successful raw data fetches
tmq_get_raw_fail	DOUBLE		Count of failed raw data fetches
tmq_free_raw_total	DOUBLE		Count of raw data releases
tmq_free_raw_success	DOUBLE		Count of successful raw data releases
tmq_consumer_new_total	DOUBLE		Count of new consumer creations
tmq_consumer_new_success	DOUBLE		Count of successful new consumer creations
tmq_consumer_new_fail	DOUBLE		Count of failed new consumer creations
tmq_consumer_close_total	DOUBLE		Count of consumer closes
tmq_consumer_close_success	DOUBLE		Count of successful consumer closes
tmq_consumer_close_fail	DOUBLE		Count of failed consumer closes
tmq_subscribe_total	DOUBLE		Count of topic subscriptions
tmq_subscribe_success	DOUBLE		Count of successful topic subscriptions
tmq_subscribe_fail	DOUBLE		Count of failed topic subscriptions
tmq_unsubscribe_total	DOUBLE		Count of unsubscriptions
tmq_unsubscribe_success	DOUBLE		Count of successful unsubscriptions
tmq_unsubscribe_fail	DOUBLE		Count of failed unsubscriptions
tmq_list_new_total	DOUBLE		Count of new topic list creations
tmq_list_new_success	DOUBLE		Count of successful new topic list creations
tmq_list_new_fail	DOUBLE		Count of failed new topic list creations
tmq_list_destroy_total	DOUBLE		Count of topic list destructions
tmq_list_destroy_success	DOUBLE		Count of successful topic list destructions
tmq_conf_new_total	DOUBLE		Count of TMQ new config creations
tmq_conf_new_success	DOUBLE		Count of successful TMQ new config creations
tmq_conf_new_fail	DOUBLE		Count of failed TMQ new config creations
tmq_conf_destroy_total	DOUBLE		Count of TMQ config destructions
tmq_conf_destroy_success	DOUBLE		Count of successful TMQ config destructions
taos_stmt2_prepare_total	DOUBLE		Count of stmt2 prepares
taos_stmt2_prepare_success	DOUBLE		Count of successful stmt2 prepares
taos_stmt2_prepare_fail	DOUBLE		Count of failed stmt2 prepares
taos_stmt2_is_insert_total	DOUBLE		Count of insert checks
taos_stmt2_is_insert_success	DOUBLE		Count of successful insert checks
taos_stmt2_is_insert_fail	DOUBLE		Count of failed insert checks
taos_stmt2_bind_param_total	DOUBLE		Count of stmt2 parameter bindings
taos_stmt2_bind_param_success	DOUBLE		Count of successful stmt2 parameter bindings
taos_stmt2_bind_param_fail	DOUBLE		Count of failed stmt2 parameter bindings
taos_stmt2_exec_total	DOUBLE		Count of stmt2 executions
taos_stmt2_exec_success	DOUBLE		Count of successful stmt2 executions
taos_stmt2_exec_fail	DOUBLE		Count of failed stmt2 executions
taos_stmt2_error_total	DOUBLE		Count of stmt2 error checks
taos_stmt2_error_success	DOUBLE		Count of successful stmt2 error checks
taos_fetch_row_total	DOUBLE		Count of sync row fetches
taos_fetch_row_success	DOUBLE		Count of successful sync row fetches
taos_is_update_query_total	DOUBLE		Count of update statement checks
taos_is_update_query_success	DOUBLE		Count of successful update statement checks
taos_affected_rows_total	DOUBLE		Count of SQL affected rows fetches
taos_affected_rows_success	DOUBLE		Count of successful SQL affected rows fetches
taos_num_fields_total	DOUBLE		Count of field count fetches
taos_num_fields_success	DOUBLE		Count of successful field count fetches
taos_fetch_fields_e_total	DOUBLE		Count of extended field info fetches
taos_fetch_fields_e_success	DOUBLE		Count of successful extended field info fetches
taos_fetch_fields_e_fail	DOUBLE		Count of failed extended field info fetches
taos_result_precision_total	DOUBLE		Count of precision fetches
taos_result_precision_success	DOUBLE		Count of successful precision fetches
taos_get_raw_block_total	DOUBLE		Count of raw block fetches
taos_get_raw_block_success	DOUBLE		Count of successful raw block fetches
taos_fetch_raw_block_total	DOUBLE		Count of raw block pulls
taos_fetch_raw_block_success	DOUBLE		Count of successful raw block pulls
taos_fetch_raw_block_fail	DOUBLE		Count of failed raw block pulls
taos_fetch_lengths_total	DOUBLE		Count of field length fetches
taos_fetch_lengths_success	DOUBLE		Count of successful field length fetches
taos_write_raw_block_with_reqid_total	DOUBLE		Count of request ID raw block writes
taos_write_raw_block_with_reqid_success	DOUBLE		Count of successful request ID raw block writes
taos_write_raw_block_with_reqid_fail	DOUBLE		Count of failed request ID raw block writes
taos_write_raw_block_with_fields_with_reqid_total	DOUBLE		Count of request ID field raw block writes
taos_write_raw_block_with_fields_with_reqid_success	DOUBLE		Count of successful request ID field raw block writes
taos_write_raw_block_with_fields_with_reqid_fail	DOUBLE		Count of failed request ID field raw block writes
tmq_write_raw_total	DOUBLE		Count of TMQ raw data writes
tmq_write_raw_success	DOUBLE		Count of successful TMQ raw data writes
tmq_write_raw_fail	DOUBLE		Count of failed TMQ raw data writes
taos_stmt_prepare_total	DOUBLE		Count of stmt prepares
taos_stmt_prepare_success	DOUBLE		Count of successful stmt prepares
taos_stmt_prepare_fail	DOUBLE		Count of failed stmt prepares
taos_stmt_is_insert_total	DOUBLE		Count of stmt insert checks
taos_stmt_is_insert_success	DOUBLE		Count of successful stmt insert checks
taos_stmt_is_insert_fail	DOUBLE		Count of failed stmt insert checks
taos_stmt_set_tbname_total	DOUBLE		Count of stmt table name sets
taos_stmt_set_tbname_success	DOUBLE		Count of successful stmt table name sets
taos_stmt_set_tbname_fail	DOUBLE		Count of failed stmt table name sets
taos_stmt_set_tags_total	DOUBLE		Count of stmt tag sets
taos_stmt_set_tags_success	DOUBLE		Count of successful stmt tag sets
taos_stmt_set_tags_fail	DOUBLE		Count of failed stmt tag sets
taos_stmt_bind_param_batch_total	DOUBLE		Count of stmt batch parameter bindings
taos_stmt_bind_param_batch_success	DOUBLE		Count of successful stmt batch parameter bindings
taos_stmt_bind_param_batch_fail	DOUBLE		Count of failed stmt batch parameter bindings
taos_stmt_add_batch_total	DOUBLE		Count of stmt batch additions
taos_stmt_add_batch_success	DOUBLE		Count of successful stmt batch additions
taos_stmt_add_batch_fail	DOUBLE		Count of failed stmt batch additions
taos_stmt_execute_total	DOUBLE		Count of stmt executions
taos_stmt_execute_success	DOUBLE		Count of successful stmt executions
taos_stmt_execute_fail	DOUBLE		Count of failed stmt executions
taos_stmt_num_params_total	DOUBLE		Count of stmt parameter count fetches
taos_stmt_num_params_success	DOUBLE		Count of successful stmt parameter count fetches
taos_stmt_num_params_fail	DOUBLE		Count of failed stmt parameter count fetches
taos_stmt_get_param_total	DOUBLE		Count of stmt parameter fetches
taos_stmt_get_param_success	DOUBLE		Count of successful stmt parameter fetches
taos_stmt_get_param_fail	DOUBLE		Count of failed stmt parameter fetches
taos_stmt_errstr_total	DOUBLE		Count of stmt error info fetches
taos_stmt_errstr_success	DOUBLE		Count of successful stmt error info fetches
taos_stmt_affected_rows_once_total	DOUBLE		Count of stmt affected rows fetches
taos_stmt_affected_rows_once_success	DOUBLE		Count of successful stmt affected rows fetches
taos_stmt_use_result_total	DOUBLE		Count of stmt result set uses
taos_stmt_use_result_success	DOUBLE		Count of successful stmt result set uses
taos_stmt_use_result_fail	DOUBLE		Count of failed stmt result set uses
taos_select_db_total	DOUBLE		Count of database selections
taos_select_db_success	DOUBLE		Count of successful database selections
taos_select_db_fail	DOUBLE		Count of failed database selections
taos_get_tables_vgId_total	DOUBLE		Count of table vgroup ID fetches
taos_get_tables_vgId_success	DOUBLE		Count of successful table vgroup ID fetches
taos_get_tables_vgId_fail	DOUBLE		Count of failed table vgroup ID fetches
taos_options_connection_total	DOUBLE		Count of connection option sets
taos_options_connection_success	DOUBLE		Count of successful connection option sets
taos_options_connection_fail	DOUBLE		Count of failed connection option sets
taos_validate_sql_total	DOUBLE		Count of SQL validations
taos_validate_sql_success	DOUBLE		Count of successful SQL validations
taos_validate_sql_fail	DOUBLE		Count of failed SQL validations
taos_check_server_status_total	DOUBLE		Count of server status checks
taos_check_server_status_success	DOUBLE		Count of successful server status checks
taos_get_current_db_total	DOUBLE		Count of current database fetches
taos_get_current_db_success	DOUBLE		Count of successful current database fetches
taos_get_current_db_fail	DOUBLE		Count of failed current database fetches
taos_get_server_info_total	DOUBLE		Count of server info fetches
taos_get_server_info_success	DOUBLE		Count of successful server info fetches
taos_options_total	DOUBLE		Count of option sets
taos_options_success	DOUBLE		Count of successful option sets
taos_options_fail	DOUBLE		Count of failed option sets
taos_set_conn_mode_total	DOUBLE		Count of connection mode sets
taos_set_conn_mode_success	DOUBLE		Count of successful connection mode sets
taos_set_conn_mode_fail	DOUBLE		Count of failed connection mode sets
taos_reset_current_db_total	DOUBLE		Count of current database resets
taos_reset_current_db_success	DOUBLE		Count of successful current database resets
taos_set_notify_cb_total	DOUBLE		Count of notification callback sets
taos_set_notify_cb_success	DOUBLE		Count of successful notification callback sets
taos_set_notify_cb_fail	DOUBLE		Count of failed notification callback sets
taos_errno_total	DOUBLE		Count of error code fetches
taos_errno_success	DOUBLE		Count of successful error code fetches
taos_errstr_total	DOUBLE		Count of error message fetches
taos_errstr_success	DOUBLE		Count of successful error message fetches
tmq_consumer_poll_total	DOUBLE		Count of TMQ consumer polls
tmq_consumer_poll_success	DOUBLE		Count of successful TMQ consumer polls
tmq_consumer_poll_fail	DOUBLE		Count of failed TMQ consumer polls
tmq_subscription_total	DOUBLE		Count of TMQ subscription info fetches
tmq_subscription_success	DOUBLE		Count of successful TMQ subscription info fetches
tmq_subscription_fail	DOUBLE		Count of failed TMQ subscription info fetches
tmq_list_append_total	DOUBLE		Count of TMQ list appends
tmq_list_append_success	DOUBLE		Count of successful TMQ list appends
tmq_list_append_fail	DOUBLE		Count of failed TMQ list appends
tmq_list_get_size_total	DOUBLE		Count of TMQ list size fetches
tmq_list_get_size_success	DOUBLE		Count of successful TMQ list size fetches
tmq_err2str_total	DOUBLE		Count of TMQ error code to string conversions
tmq_err2str_success	DOUBLE		Count of successful TMQ error code to string conversions
tmq_conf_set_total	DOUBLE		Count of TMQ config sets
tmq_conf_set_success	DOUBLE		Count of successful TMQ config sets
tmq_conf_set_fail	DOUBLE		Count of failed TMQ config sets
tmq_get_res_type_total	DOUBLE		Count of TMQ resource type fetches
tmq_get_res_type_success	DOUBLE		Count of successful TMQ resource type fetches
tmq_get_topic_name_total	DOUBLE		Count of TMQ topic name fetches
tmq_get_topic_name_success	DOUBLE		Count of successful TMQ topic name fetches
tmq_get_vgroup_id_total	DOUBLE		Count of TMQ vgroup ID fetches
tmq_get_vgroup_id_success	DOUBLE		Count of successful TMQ vgroup ID fetches
tmq_get_vgroup_offset_total	DOUBLE		Count of TMQ vgroup offset fetches
tmq_get_vgroup_offset_success	DOUBLE		Count of successful TMQ vgroup offset fetches
tmq_get_db_name_total	DOUBLE		Count of TMQ database name fetches
tmq_get_db_name_success	DOUBLE		Count of successful TMQ database name fetches
tmq_get_table_name_total	DOUBLE		Count of TMQ table name fetches
tmq_get_table_name_success	DOUBLE		Count of successful TMQ table name fetches
tmq_get_connect_total	DOUBLE		Count of TMQ connection fetches
tmq_get_connect_success	DOUBLE		Count of successful TMQ connection fetches
tmq_commit_sync_total	DOUBLE		Count of TMQ sync commits
tmq_commit_sync_success	DOUBLE		Count of successful TMQ sync commits
tmq_commit_sync_fail	DOUBLE		Count of failed TMQ sync commits
tmq_fetch_raw_block_total	DOUBLE		Count of TMQ raw block fetches
tmq_fetch_raw_block_success	DOUBLE		Count of successful TMQ raw block fetches
tmq_fetch_raw_block_fail	DOUBLE		Count of failed TMQ raw block fetches
tmq_get_topic_assignment_total	DOUBLE		Count of TMQ topic assignment fetches
tmq_get_topic_assignment_success	DOUBLE		Count of successful TMQ topic assignment fetches
tmq_get_topic_assignment_fail	DOUBLE		Count of failed TMQ topic assignment fetches
tmq_offset_seek_total	DOUBLE		Count of TMQ offset seeks
tmq_offset_seek_success	DOUBLE		Count of successful TMQ offset seeks
tmq_offset_seek_fail	DOUBLE		Count of failed TMQ offset seeks
tmq_committed_total	DOUBLE		Count of TMQ committed offset fetches
tmq_committed_success	DOUBLE		Count of successful TMQ committed offset fetches
tmq_commit_offset_sync_fail	DOUBLE		Count of failed TMQ sync offset commits
tmq_position_total	DOUBLE		Count of TMQ current position fetches
tmq_position_success	DOUBLE		Count of successful TMQ current position fetches
tmq_commit_offset_sync_total	DOUBLE		Count of TMQ sync offset commits
tmq_commit_offset_sync_success	DOUBLE		Count of successful TMQ sync offset commits
endpoint	NCHAR	TAG	Request endpoint

Changes after upgrading httpd to taosAdapter

In TDengine server version 2.2.x.x or earlier, the taosd process included an embedded HTTP service(httpd). As mentioned earlier, taosAdapter is a standalone software managed by systemd, having its own process. Moreover, there are some differences in configuration parameters and behaviors between the two, as shown in the table below:

#	embedded httpd	taosAdapter	comment
1	httpEnableRecordSql	--logLevel=debug
2	httpMaxThreads	n/a	taosAdapter automatically manages the thread pool, this parameter is not needed
3	telegrafUseFieldNum	Please refer to taosAdapter telegraf configuration methods
4	restfulRowLimit	restfulRowLimit	The embedded httpd defaults to outputting 10240 rows of data, with a maximum allowable value of 102400. taosAdapter also provides restfulRowLimit but does not impose a limit by default. You can configure it according to actual scenario needs.
5	httpDebugFlag	Not applicable	httpdDebugFlag does not affect taosAdapter
6	httpDBNameMandatory	Not applicable	taosAdapter requires the database name to be specified in the URL
