taosX Reference

taosX is a core component in TDengine Enterprise that provides zero-code data access capabilities. taosX supports two running modes: service mode and command-line mode. This section describes how to use taosX in both ways. To use taosX, you must first install the TDengine Enterprise installation package.

Command-Line Mode

Command-Line Format

The command-line parameter format for taosX is as follows:

taosx -f <from-DSN> -t <to-DSN> <other parameters>

The command-line parameters for taosX are divided into three main parts:

• -f specifies the data source, i.e., Source DSN.
• -t specifies the write target, i.e., Sink DSN.
• Other parameters.

For the following parameter descriptions and examples, if no special instructions are provided, the format of <content> is a placeholder, which needs to be replaced with actual parameters when used.

DSN (Data Source Name)

In the command-line mode, taosX uses DSN to represent a data source (source or destination). A typical DSN is as follows:

# url-like
<driver>[+<protocol>]://[[<username>:<password>@]<host>:<port>][/<object>][?<p1>=<v1>[&<p2>=<v2>]]
|------|------------|---|-----------|-----------|------|------|----------|-----------------------|
|driver|   protocol |   | username  | password  | host | port |  object  |  params               |

// URL example
tmq+ws://root:taosdata@localhost:6030/db1?timeout=never

The data within [] are optional parameters.

1. Different drivers (driver) have different parameters. The drivers include the following options:
   • taos: Use the query interface to retrieve data from TDengine.
   • tmq: Enable data subscription to retrieve data from TDengine.
   • local: Data backup or recovery.
   • pi: Enable pi-connector to retrieve data from the pi database.
   • opc: Enable opc-connector to retrieve data from the opc-server.
   • mqtt: Enable mqtt-connector to retrieve data from the mqtt-broker.
   • kafka: Enable Kafka connector to subscribe messages from Kafka Topics for writing.
   • influxdb: Enable influxdb connector to retrieve data from InfluxDB.
   • csv: Parse data from a CSV file.
2. +protocol includes the following options:
   • +ws: Used when the driver is either taos or tmq, indicating the use of REST to retrieve data. If +ws is not used, it indicates the use of a native connection, which requires taosx to be installed on the server.
   • +ua: Used when the driver is opc, indicating the collected data's OPC server is OPC-UA.
   • +da: Used when the driver is opc, indicating the collected data's OPC server is OPC-DA.
3. host:port indicates the address and port of the data source.
4. object represents the specific data source, which can be a TDengine database, supertable, table, the path of a local backup file, or the database on the corresponding data source server.
5. username and password represent the username and password for the data source.
6. params represent the parameters of the DSN.

Other Parameters

1. --jobs <number> specifies the concurrency number of tasks, only supports tmq tasks.
2. -v is used to specify the log level of taosx, -v means enable info level logs, -vv corresponds to debug, -vvv corresponds to trace.

Usage Examples

Import and Export User and Permission Information

Export usernames, passwords, permissions, and whitelist information from cluster A to cluster B:

taosx privileges -f "taos://root:taosdata@hostA:6030" \
  -t "taos+ws://root:password@hostB:6041"

Export usernames, passwords, permissions, and whitelist information from cluster A to a JSON file:

taosx privileges -f "taos+ws://root:taosdata@localhost:6041" \
  -o ./user-pass-privileges-backup.json

Restore from the exported JSON file to the local machine:

taosx privileges -i ./user-pass-privileges-backup.json -t "taos:///"

Available parameters:

Parameter	Description
-u	Includes user basic information (password, whether enabled, etc.)
-p	Includes permission information
-w	Includes whitelist information

When the -u/-p parameter is applied, it will only include the specified information. When no parameters are included, it indicates all information (username, password, permission, and whitelist).

The -w parameter cannot be used alone; it is only valid when used with -u (using -u alone will not include the whitelist).

Migrating Data from Old Versions

1. Synchronize Historical Data

   Synchronize the entire database:

   taosx run -f 'taos://root:taosdata@localhost:6030/db1' -t 'taos:///db2' -v

   Synchronize a specified supertable:

   taosx run \
     -f 'taos://root:taosdata@localhost:6030/db1?stables=meters' \
     -t 'taos:///db2' -v

   Synchronize subtables or basic tables; support {stable}.{table} to specify a supertable's subtable or directly specify the table name {table}.

   taosx run \
     -f 'taos://root:taosdata@localhost:6030/db1?tables=meters.d0,d1,table1' \
     -t 'taos:///db2' -v

2. Synchronize Data within a Specified Time Range (using RFC3339 time format, note the timezone):

   taosx run -f 'taos:///db1?start=2022-10-10T00:00:00Z' -t 'taos:///db2' -v

3. Continuous Synchronization; restro specifies synchronizing the data from the last 5 minutes and continues to synchronize new data. In the example, it checks once every second, and excursion allows for a delay or out-of-order data of 500ms.

   taosx run \
     -f 'taos:///db1?mode=realtime&restro=5m&interval=1s&excursion=500ms' \
     -t 'taos:///db2' -v

4. Synchronize Historical Data + Real-Time Data:

   taosx run -f 'taos:///db1?mode=all' -t 'taos:///db2' -v

5. Configure Data Synchronization through --transform or -T (supports synchronization between versions 2.6 to 3.0 and 3.0); this process performs operations on table names and table fields. Currently, this cannot be set through Explorer. Configuration descriptions are as follows:

   1. AddTag, to add a tag to the table. Set example: -T add-tag:<tag1>=<value1>.
   2. Rename Table: 2.1 Rename Table Scope: 2.1.1 RenameTable: Rename all matching tables. 2.1.2 RenameChildTable: Rename all matching subtables. 2.1.3 RenameSuperTable: Rename all matching supertables. 2.2 Renaming Methods: 2.2.1 Prefix: Add prefix. 2.2.2 Suffix: Add suffix. 2.2.3 Template: Template method. 2.2.4 ReplaceWithRegex: Regular expression replacement. Added in taosx 1.1.0.

   Renaming configuration method: <Table Scope>:<Renaming Method>:<Renaming Value>

   Usage examples:

   1. Add prefix <prefix> to all tables: --transform rename-table:prefix:<prefix>

   2. Replace prefix1 with prefix2 for matching tables. In the following example, <> are no longer placeholders for regular expressions.

      -T rename-child-table:replace_with_regex:^prefix1(?<old>)::prefix2_$old

   Example explanation: ^prefix1(?<old>) is a regular expression that matches table names starting with prefix1 and records the suffix as old; prefix2$old will replace the old with prefix2. Note: The two parts are separated using the special character ::, so the regular expression must not include this character.

   For more complex replacement needs, please refer to: https://docs.rs/regex/latest/regex/#example-replacement-with-named-capture-groups or consult the taosx developers.

   3. Use a CSV mapping file for table renaming: The following example uses the map.csv file for table renaming.

   `-T rename-child-table:map:@./map.csv`

   The CSV file ./map.csv is formatted as follows:

   name1,newname1
   name2,newname2

Please note that when migrating between incompatible versions on both ends and using a native connection, it is necessary to specify libraryPath in the DSN, for example: taos:///db1?libraryPath=./libtaos.so.

Import Data from CSV Files

The basic usage is as follows:

taosx run -f csv:./meters/meters.csv.gz \
  --parser '@./meters/meters.json' \
  -t taos:///csv1 -qq

For example, with the electric meter data, the CSV file is as follows:

tbname,ts,current,voltage,phase,groupid,location
d4,2017-07-14T10:40:00+08:00,-2.598076,16,-0.866025,7,California.LosAngles
d4,2017-07-14T10:40:00.001+08:00,-2.623859,6,-0.87462,7,California.LosAngles
d4,2017-07-14T10:40:00.002+08:00,-2.648843,2,-0.862948,7,California.LosAngles
d4,2017-07-14T10:40:00.003+08:00,-2.673019,16,-0.891006,7,California.LosAngles
d4,2017-07-14T10:40:00.004+08:00,-2.696382,10,-0.898794,7,California.LosAngles
d4,2017-07-14T10:40:00.005+08:00,-2.718924,6,-0.886308,7,California.LosAngles
d4,2017-07-14T10:40:00.006+08:00,-2.740636,10,-0.893545,7,California.LosAngles

The --parser option is used to set the database parameters. The example is as follows:

{
  "parse": {
    "ts": { "as": "TIMESTAMP(ms)" },
    "current": { "as": "FLOAT" },
    "voltage": { "as": "INT" },
    "phase": { "as": "FLOAT" },
    "groupid": { "as": "INT" },
    "location": { "as": "VARCHAR(24)" }
  },
  "model": {
    "name": "${tbname}",
    "using": "meters",
    "tags": ["groupid", "location"],
    "columns": ["ts", "current", "voltage", "phase"]
  }
}

It will import data from ./meters/meters.csv.gz (a gzip compressed CSV file) into the supertable meters, where each row is inserted into the specified table name - ${tbname}, using the tbname column in the CSV content as the table name (i.e., in the JSON parser, it is defined in .model.name).

Service Mode

This section describes how to deploy taosX in service mode. The functions of taosX running in service mode need to be accessed through the graphical interface on taosExplorer.

Configuration

taosX can be configured through a configuration file. On Linux, the default configuration file path is /etc/taos/taosx.toml, and on Windows, the default configuration file path is C:\\TDengine\\cfg\\taosx.toml. It includes the following configuration items:

• plugins_home: The directory where external data source connectors are located.
• data_dir: The directory for storing data files.
• instanceId: The instance ID of the current taosX service. If multiple taosX instances are started on the same machine, ensure that the instance IDs are unique.
• logs_home: The directory where log files are stored. The log file prefix for taosX is taosx.log, and external data sources have their own log file prefix. This has been deprecated; please use log.path instead.
• log_level: The log level; optional levels include error, warn, info, debug, trace, with a default value of info. This has been deprecated; please use log.level instead.
• log_keep_days: The maximum storage days for logs; taosX logs will be divided into different files by day. This has been deprecated; please use log.keepDays instead.
• jobs: The maximum number of threads per runtime. In service mode, the total number of threads is jobs*2, with a default thread count of current server cores*2.
• serve.listen: The listening address for the taosX REST API, with a default value of 0.0.0.0:6050.
• serve.database_url: The address of the taosX database, in the format sqlite:<path>.
• serve.request_timeout: The global API timeout duration.
• monitor.fqdn: The FQDN of the taosKeeper service, with no default value. If empty, monitoring functionality will be disabled.
• monitor.port: The port of the taosKeeper service, defaulting to 6043.
• monitor.interval: The frequency of sending metrics to taosKeeper, defaulting to every 10 seconds, with only values from 1 to 10 being valid.
• log.path: The directory for storing log files.
• log.level: The log level, with optional values of "error", "warn", "info", "debug", "trace".
• log.compress: Whether to compress archived log files or not.
• log.rotationCount: The maximum number of files retained in the log directory; old files exceeding this number will be deleted.
• log.rotationSize: The file size (in bytes) that triggers log file rotation; when the log file exceeds this size, a new file will be generated, and new logs will be written to the new file.
• log.reservedDiskSize: The threshold for stopping log writes when the disk where the logs are located reaches this size (in bytes).
• log.keepDays: The number of days logs are retained; old log files exceeding this number will be deleted.
• log.watching: Whether to listen for changes in the log.loggers configuration in the log file and attempt to reload.
• log.loggers: Specifies the log output level of modules, in the format "modname" = "level"; it also adapts to the tracing library syntax and can be specified as modname[span{field=value}]=level, where level is the log level.

As shown below:

# data dir
#data_dir = "/var/lib/taos/taosx" # on linux/macOS
#data_dir = "C:\\TDengine\\data\\taosx" # on windows

# number of threads used for tokio workers, default to 0 (means cores * 2)
#jobs = 0

# enable OpenTelemetry tracing and metrics exporter
#otel = false

# server instance id
#
# The instanceId of each instance is unique on the host
# instanceId = 16

[serve]
# listen to ip:port address
#listen = "0.0.0.0:6050"

# database url
#database_url = "sqlite:taosx.db"

# default global request timeout which unit is second. This parameter takes effect for certain interfaces that require a timeout setting
#request_timeout = 30

[monitor]
# FQDN of taosKeeper service, no default value
#fqdn = "localhost"

# Port of taosKeeper service, default 6043
#port = 6043

# How often to send metrics to taosKeeper, default every 10 seconds. Only value from 1 to 10 is valid.
#interval = 10


# log configuration
[log]
# All log files are stored in this directory
#
#path = "/var/log/taos" # on linux/macOS
#path = "C:\\TDengine\\log" # on windows

# log filter level
#
#level = "info"

# Compress archived log files or not
#
#compress = false

# The number of log files retained by the current explorer server instance in the `path` directory
#
#rotationCount = 30

# Rotate when the log file reaches this size
#
#rotationSize = "1GB"

# Log downgrade when the remaining disk space reaches this size, only logging `ERROR` level logs
#
#reservedDiskSize = "1GB"

# The number of days log files are retained
#
#keepDays = 30

# Watching the configuration file for log.loggers changes, default to true.
#
#watching = true

# Customize the log output level of modules, and changes will be applied after modifying the file when log.watching is enabled
#
# ## Examples:
#
# crate = "error"
# crate::mod1::mod2 = "info"
# crate::span[field=value] = "warn"
#
[log.loggers]
#"actix_server::accept" = "warn"
#"taos::query" = "warn"

Start

On Linux, taosX can be started with the Systemd command:

systemctl start taosx

On Windows, find the taosX service in the system management tool "Services" and start it, or execute the following command in the command line tool (cmd.exe or PowerShell) to start it:

sc.exe start taosx

Troubleshooting

1. Modify the log level of taosX The default log level for taosX is info. To specify a different level, modify the configuration file or use the following command-line parameters:

   • error: taosx serve -qq
   • debug: taosx serve -q
   • info: taosx serve -v
   • debug: taosx serve -vv
   • trace: taosx serve -vvv To specify command-line parameters while running taosX as a service, refer to the configuration.

2. View taosX logs You can view log files or use the journalctl command to check the logs of taosX. On Linux, the command to view logs with journalctl is as follows:

   journalctl -u taosx [-f]

taosX Monitoring Metrics

taosX reports monitoring metrics to taosKeeper, which writes these metrics to the monitoring database, defaulting to the log database, which can be modified in the taosKeeper configuration file. The following is a detailed introduction to these monitoring metrics.

taosX Service

Field	Description
sys_cpu_cores	Number of CPU cores in the system
sys_total_memory	Total memory in the system, in bytes
sys_used_memory	Used memory in the system, in bytes
sys_available_memory	Available memory in the system, in bytes
process_uptime	Running time of taosX, in seconds
process_id	Process ID of taosX
running_tasks	Number of tasks currently being executed by taosX
completed_tasks	Number of tasks completed by the taosX process within a monitoring cycle (e.g., 10s)
failed_tasks	Number of tasks that failed within a monitoring cycle (e.g., 10s)
process_cpu_percent	CPU percentage used by the taosX process, in %
process_memory_percent	Memory percentage used by the taosX process, in %
process_disk_read_bytes	Average number of bytes read from the disk by the taosX process within a monitoring cycle (e.g., 10s), in bytes/s
process_disk_written_bytes	Average number of bytes written to the disk by the taosX process within a monitoring cycle (e.g., 10s), in bytes/s

Agent

Field	Description
sys_cpu_cores	Number of CPU cores in the system
sys_total_memory	Total memory in the system, in bytes
sys_used_memory	Used memory in the system, in bytes
sys_available_memory	Available memory in the system, in bytes
process_uptime	Running time of the agent, in seconds
process_id	Process ID of the agent
process_cpu_percent	CPU percentage used by the agent process, in %
process_memory_percent	Memory percentage used by the agent process, in %
process_disk_read_bytes	Average number of bytes read from the disk by the agent process within a monitoring cycle (e.g., 10s), in bytes/s
process_disk_written_bytes	Average number of bytes written to the disk by the agent process within a monitoring cycle (e.g., 10s), in bytes/s

Connector

Field	Description
process_id	Process ID of the connector
process_uptime	Start time of the process, in seconds
process_cpu_percent	CPU percentage used by the process, in %
process_memory_percent	Memory percentage used by the process, in %
process_disk_read_bytes	Average number of bytes read from the disk by the connector process within a monitoring cycle (e.g., 10s), in bytes/s
process_disk_written_bytes	Average number of bytes written to the disk by the connector process within a monitoring cycle (e.g., 10s), in bytes/s

taosX General Data Source Task

Field	Description
total_execute_time	Cumulative running time of the task, in milliseconds
total_written_rows	Total number of rows successfully written to TDengine (including duplicate records)
total_written_points	Cumulative number of successfully written points (equal to the number of rows multiplied by the number of columns in the data block)
start_time	Task start time (reset on each restart of the task)
written_rows	Total number of rows successfully written to TDengine in this task run (including duplicate records)
written_points	Total number of successfully written points in this run (equal to the number of rows multiplied by the number of columns in the data block)
execute_time	Running time of this task run, in seconds

taosX TDengine V2 Task

Field	Description
read_concurrency	Number of workers reading data concurrently from the data source, equal to the number of workers writing to TDengine concurrently
total_stables	Total number of supertables to be migrated
total_updated_tags	Total number of tags updated
total_created_tables	Total number of subtables created
total_tables	Total number of subtables to be migrated
total_finished_tables	Total number of subtables completed for data migration (may be greater than the actual value if the task is interrupted and restarted)
total_success_blocks	Total number of data blocks successfully written
finished_tables	Total number of subtables migrated in this run
success_blocks	Total number of data blocks successfully written in this run
created_tables	Total number of subtables created in this run
updated_tags	Total number of tags updated in this run

taosX TDengine V3 Task

Field	Description
total_messages	Total number of messages received through TMQ
total_messages_of_meta	Total number of Meta-type messages received through TMQ
total_messages_of_data	Total number of Data and MetaData-type messages received through TMQ
total_write_raw_fails	Total number of failures in writing raw meta
total_success_blocks	Total number of data blocks successfully written
topics	Number of topics subscribed through TMQ
consumers	Number of TMQ consumers
messages	Total number of messages received in this run through TMQ
messages_of_meta	Total number of Meta-type messages received in this run through TMQ
messages_of_data	Total number of Data and MetaData-type messages received in this run through TMQ
write_raw_fails	Total number of failures in writing raw meta in this run
success_blocks	Total number of data blocks successfully written in this run

taosX Other Data Source Tasks

These data sources include: InfluxDB, OpenTSDB, OPC UA, OPC DA, PI, CSV, MQTT, AVEVA Historian, and Kafka.

Field	Description
total_received_batches	Total batches of data received through IPC Stream
total_processed_batches	Total number of batches processed
total_processed_rows	Total number of rows processed (equal to the sum of data rows contained in each batch)
total_inserted_sqls	Total number of INSERT SQL executed
total_failed_sqls	Total number of failed INSERT SQL executions
total_created_stables	Total number of supertables created (may be greater than the actual value)
total_created_tables	Total number of attempts to create subtables (may be greater than the actual value)
total_failed_rows	Total number of rows that failed to write
total_failed_points	Total number of points that failed to write
total_written_blocks	Total number of successfully written raw blocks
total_failed_blocks	Total number of failed raw blocks written
received_batches	Total batches of data received in this task run
processed_batches	Total number of batches processed in this task run
processed_rows	Total number of rows processed in this task run (equal to the sum of data rows contained in each batch)
received_records	Total number of records received in this task run
inserted_sqls	Total number of INSERT SQL executed in this task run
failed_sqls	Total number of failed INSERT SQL executions in this task run
created_stables	Total number of attempts to create supertables in this task run
created_tables	Total number of attempts to create subtables in this task run
failed_rows	Total number of rows that failed to write in this task run
failed_points	Total number of points that failed to write in this task run
written_blocks	Total number of successfully written raw blocks in this task run
failed_blocks	Total number of failed raw blocks written in this task run

Kafka Data Source Related Metrics

Field	Description
kafka_consumers	Number of Kafka consumers in this task run
kafka_total_partitions	Total number of partitions in the Kafka topic
kafka_consuming_partitions	Number of partitions currently being consumed in this task run
kafka_consumed_messages	Number of messages already consumed in this task run
total_kafka_consumed_messages	Total number of messages consumed so far

taosX Data Parsing Plugins

When connecting to Kafka/MQTT message middleware, you need to parse the raw data. If using JSON/regex or other pattern parsers does not meet the parsing requirements, and UDT (custom parsing scripts) also cannot meet performance requirements, you can create custom data parsing plugins.

Plugin Overview

The taosX Parser plugin is a dynamic library developed in C/Rust language, requiring compatibility with the C ABI. This dynamic library must implement the specified API and be compiled into a dynamic library that can run correctly in the taosX operating environment. After that, it should be copied to a designated location for taosX to load it at runtime during data processing's parsing stage.

Plugin Deployment

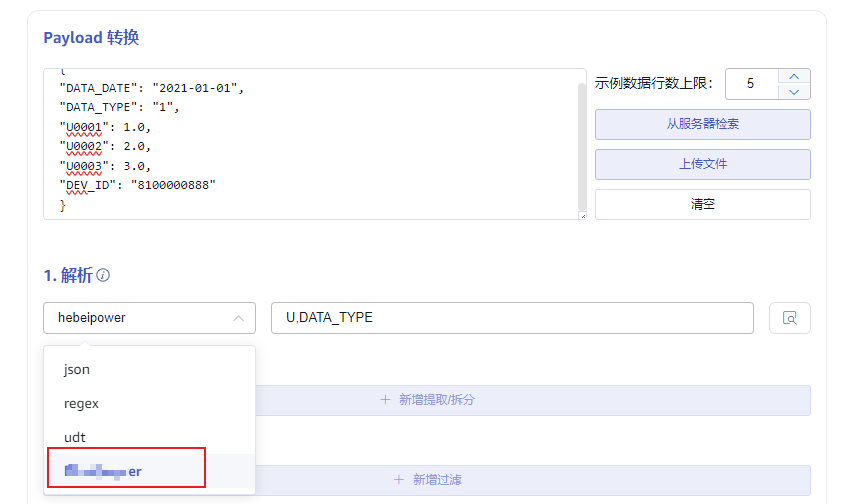

After completing plugin development, ensure that the compilation environment is compatible with the target runtime environment. Copy the compiled plugin dynamic library to the plugin directory. When taosX starts, it will initialize and load the plugin when the system first uses it. You can check whether it has loaded successfully in the Kafka or MQTT data access configuration page of Explorer.

The plugin directory reuses the plugins configuration in the taosx.toml configuration file, appending /parsers as the plugin installation path. The default value in a UNIX environment is /usr/local/taos/plugins/parsers, and in Windows, it is C:\TDengine\plugins\parsers.

Plugin API Description

1. Get Plugin Name

Retrieve the plugin name for frontend display.

Function Signature: const char* parser_name()

Return Value: String.

2. Get Plugin Version

Retrieve the plugin version for troubleshooting purposes.

Function Signature: const char* parser_version()

Return Value: String.

3. Configure the Parser

Parse a string parameter into a configuration object, for internal plugin use only.

Function Signature: parser_resp_t parser_new(char* ctx, uint32_t len);

char* ctx: User-defined configuration string.

uint32_t len: The binary length of the string (excluding \0).

Return Value:

struct parser_resp_t {
  int e;    // 0 if success.
  void* p;  // Success if contains.
}

When object creation fails, e is not 0.

When creation is successful, e = 0, p is the parser object.

4. Parse Data

Function Signature:

Parse the input payload and return the result in JSON format [u8]. The returned JSON will be fully decoded (the root array and all objects will be expanded) using the default JSON parser.

const char* parser_mutate(
  void* parser,
  const uint8_t* in_ptr, uint32_t in_len,
  const void* uint8_t* out_ptr, uint32_t* out_len
);

void* parser: Pointer to the object generated by parser_new;

const uint8_t* in_ptr: Pointer to the input payload;

uint32_t in_len: Length of the input payload in bytes (excluding \0);

const void* uint8_t* out_ptr: Pointer to the output JSON string (excluding \0). If out_ptr points to NULL, it indicates that the output is empty.

uint32_t * out_len: Length of the output JSON string.

Return Value: When the call is successful, the return value is NULL.

5. Free the Parser

Release the memory of the parser object.

Function Signature: void parser_free(void* parser);

void* parser: Pointer to the object generated by parser_new.
