Integration With Superset
Apache Superset is a modern enterprise level business intelligence (BI) web application primarily used for data exploration and visualization. It is supported by the Apache Software Foundation and is an open source project with an active community and rich ecosystem. Apache Superset provides an intuitive user interface that makes creating, sharing, and visualizing data simple, while supporting multiple data sources and rich visualization options.
Through the Python connector of TDengine, Superset can support TDengine data sources and provide functions such as data presentation and analysis
Prerequisites
Prepare the following environment:
- TDengine is installed and running normally (both Enterprise and Community versions are available)
- taosAdapter is running normally, refer to taosAdapter
- Apache Superset version 2.1.0 or above is already installed, refre to Apache Superset
Install TDengine Python Connector
The Python connector of TDengine comes with a connection driver that supports Superset in versions 2.1.18 and later, which will be automatically installed in the Superset directory and provide data source services.
The connection uses the WebSocket protocol, so it is necessary to install the taos-ws-py component of TDengine separately. The complete installation script is as follows:
pip3 install taospy
pip3 install taos-ws-py
Configure TDengine Connection In Superset
Step 1, enter the new database connection page, "Superset" → "Setting" → "Database Connections" → "+DATABASE"
Step 2, select TDengine database connection, select the "TDengine" option from the drop-down list of "SUPPORTED DATABASES".
If there is no TDengine option in the drop-down list, please confirm that the steps of installing, Superset is first and Python Connector is second.
Step 3, write a name of connection in "DISPLAY NAME"
Step 4, The "SQLALCHEMY URL" field is a key connection information string, and it must be filled in correctly
taosws://user:password@host:port
| Parameter | |
|---|---|
| user | Username for logging into TDengine database |
| password | Password for logging into TDengine database |
| host | Name of the host where the TDengine database is located |
| port | The port that provides WebSocket services, default is 6041 |
Example:
The TDengine database installed on this machine provides WebSocket service port 6041, using the default username and password, "SQLALCHEMY URL" is:
taosws://root:taosdata@localhost:6041
Step 5, configure the connection string, click "TEST CONNECTION" to test if the connection can be successful. After passing the test, click the "CONNECT" button to complete the connection
Start
There is no difference in the use of TDengine data source compared to other data sources. Here is a brief introduction to basic data queries:
- Click the "+" button in the upper right corner of the Superset interface, select "SQL query", and enter the query interface
- Select the "TDengine" data source that has been created earlier from the dropdown list of "DATABASES" in the upper left corner
- Select the name of the database to be operated on from the drop-down list of "SCHEMA" (system libraries are not displayed)
- "SEE TABLE SCHEMA" select the name of the super table or regular table to be operated on (sub tables are not displayed)
- Subsequently, the schema information of the selected table will be displayed in the following area
- In the SQL editor area, any SQL statement that conforms to TDengine syntax can be entered for execution
Example
We chose two popular templates from the Superset Chart template to showcase their effects, using smart meter data as an example:

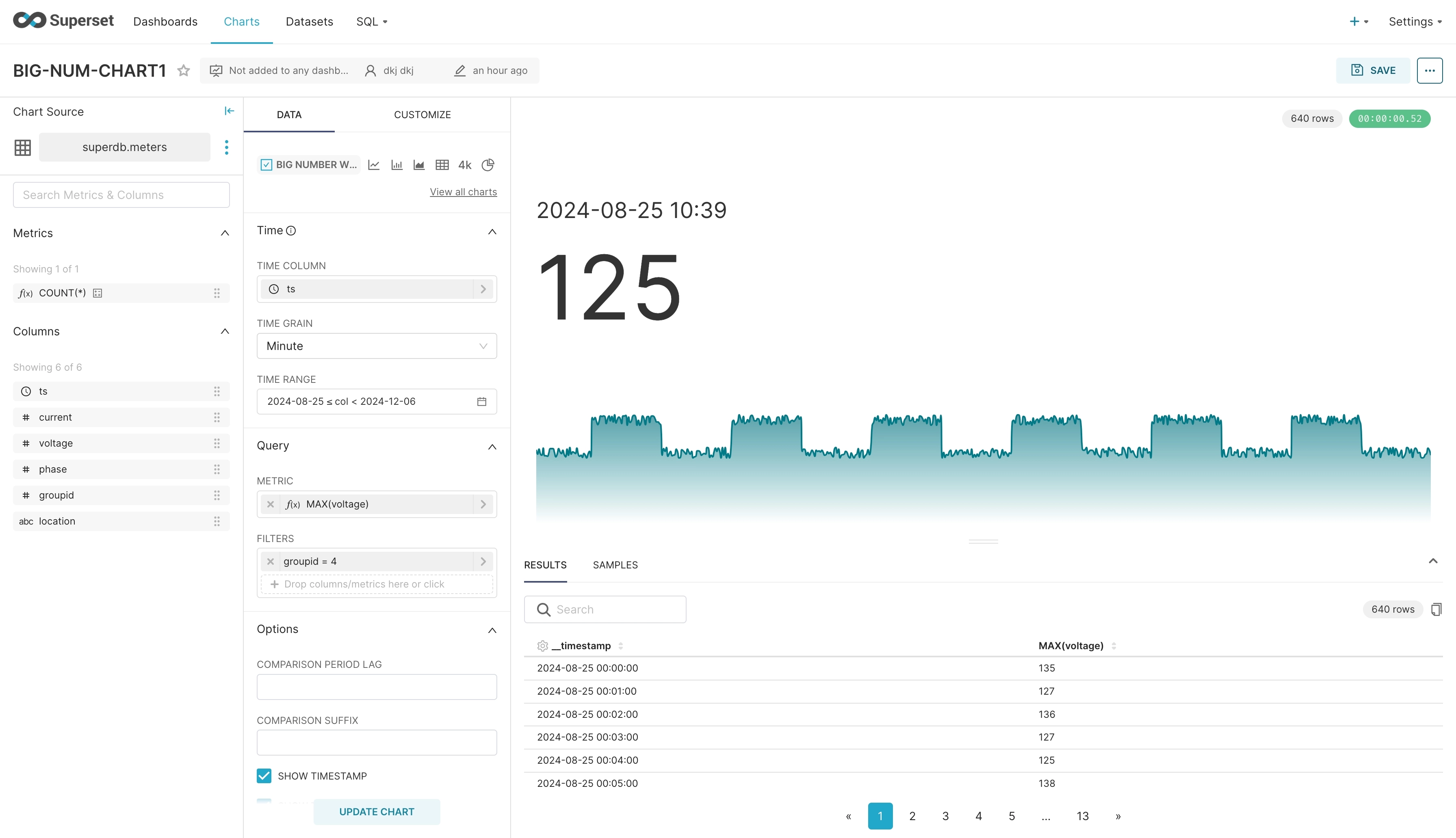

- "Aggregate" Type, which displays the maximum voltage value collected per minute during the specified time period in Group 4
- "RAW RECORDS" Type, which displays the collected values of current and voltage during the specified time period in Group 4
