Integration With Spark
Apache Spark is an open - source big data processing engine. Based on in - memory computing, it can be applied in various scenarios such as batch processing, stream processing, machine learning, and graph computing. It supports the MapReduce computing model and a rich variety of computing operators and functions, boasting powerful distributed processing and computing capabilities for extremely large - scale data.
By using the TDengine Java Connector, Spark can rapidly read TDengine data. Leveraging the powerful Spark engine, the data processing and computing capabilities of TDengine can be expanded. Meanwhile, through it, Spark can also write data into TDengine and subscribe to data from TDengine.
Prerequisites
Prepare the following environments:
- TDengine 3.3.6.0 and above version is installed and running normally (both Enterprise and Community versions are available).
- taosAdapter is running normally, refer to taosAdapter Reference.
- Spark 3.3.2 and above version (Spark Down).
- JDBC driver 3.6.2 and above version. Download from maven.org.
Configure Data Source
Connect to the TDengine data source via JDBC WebSocket. The connection URL format is:
jdbc:TAOS-WS://[host_name]:[port]/[database_name]?[user={user}|&password={password}]
For detailed parameters, see: URL Parameter.
Set driverClass to "com.taosdata.jdbc.ws.WebSocketDriver".
The following example creates a Spark instance and connects to the local TDengine service:
// create spark instance
SparkSession spark = SparkSession.builder()
.appName("appSparkTest")
.master("local[*]")
.getOrCreate();
// connect TDengine and create reader
String url = "jdbc:TAOS-WS://localhost:6041/?user=root&password=taosdata";
String driver = "com.taosdata.jdbc.ws.WebSocketDriver";
DataFrameReader dataFrameReader = spark.read()
.format("jdbc")
.option("url", url)
.option("driver", driver);
Data Interaction
When accessing data, it is necessary to register the TDengine dialect. The dialect mainly deals with backticks. The data - type mapping is the same as that of JDBC and requires no additional processing. see: JDBC DataType Map
The following takes a Spark task written in the JAVA language and submitted for execution via spark-submit as an example to introduce data access. The complete example code is attached later.
Data Writing
Data writing uses parameter binding and is accomplished in three steps:
-
Create a Connection.
// create connect
String url = "jdbc:TAOS-WS://localhost:6041/?user=root&password=taosdata";
Connection connection = DriverManager.getConnection(url); -
Bind Data and Submit.
The following example directly writes to a supertable and uses the batch - binding method to enhance writing efficiency.int childTb = 1;
int insertRows = 21;
String sql = "INSERT INTO test.meters(tbname, groupid, location, ts, current, voltage, phase) " +
"VALUES (?,?,?,?,?,?,?)";
System.out.printf("prepare sql:%s\n", sql);
// prepare
PreparedStatement preparedStatement = connection.prepareStatement(sql);
// write
for (int i = 0; i < childTb; i++ ) {
for (int j = 0; j < insertRows; j++) {
float current = (float)(10 + rand.nextInt(100) * 0.01);
float phase = (float)(1 + rand.nextInt(100) * 0.0001);
int voltage = (int) (210 + rand.nextInt(20));
preparedStatement.setString (1, String.format("d%d", i)); // tbname
preparedStatement.setInt (2, i); // groupid
preparedStatement.setString (3, String.format("location%d", i)); // location
preparedStatement.setTimestamp(4, new Timestamp(ts + j));
preparedStatement.setFloat (5, current);
preparedStatement.setInt (6, voltage);
preparedStatement.setFloat (7, phase);
// add batch
preparedStatement.addBatch();
}
}
// submit
preparedStatement.executeBatch();
// close statement
preparedStatement.close(); -
Close the Connection.
// close
connection.close();
Data Reading
Data reading is achieved through table mapping and is completed in four steps:
-
Create a Spark Interaction Instance.
// create connect
SparkSession spark = SparkSession.builder()
.appName("appSparkTest")
.master("local[*]")
.getOrCreate(); -
Create a Data Reader.
// create reader
String url = "jdbc:TAOS-WS://localhost:6041/?user=root&password=taosdata";
int timeout = 60; // seconds
DataFrameReader reader = spark.read()
.format("jdbc")
.option("url", url)
.option("driver", driver)
.option("queryTimeout", timeout); -
Map the Table and Display the Data in the Table.
// map table
String dbtable = "test.meters";
Dataset<Row> df = reader.option("dbtable", dbtable).load();
// show
df.show(Integer.MAX_VALUE, 40, false);
df.close() -
Close the Interaction.
spark.stop();
Data Subscription
Data subscription uses the JDBC standard data - subscription method and is completed in four steps:
-
Create a Spark Interaction Instance.
SparkSession spark = SparkSession.builder()
.appName("appSparkTest")
.master("local[*]")
.getOrCreate(); -
Create a Consumer.
// create consumer
TaosConsumer<ResultBean> consumer = getConsumer();
// getConsumer
public static TaosConsumer<ResultBean> getConsumer() throws Exception {
// property
String cls = "com.taosdata.java.DemoSubscribe$ResultDeserializer";
Properties config = new Properties();
config.setProperty("td.connect.type", "ws");
config.setProperty("bootstrap.servers", "localhost:6041");
config.setProperty("auto.offset.reset", "earliest");
config.setProperty("msg.with.table.name", "true");
config.setProperty("enable.auto.commit", "true");
config.setProperty("auto.commit.interval.ms", "1000");
config.setProperty("group.id", "group1");
config.setProperty("client.id", "clinet1");
config.setProperty("td.connect.user", "root");
config.setProperty("td.connect.pass", "taosdata");
config.setProperty("value.deserializer", cls);
config.setProperty("value.deserializer.encoding", "UTF-8");
try {
// new consumer
TaosConsumer<ResultBean> consumer= new TaosConsumer<>(config);
System.out.printf("Create consumer successfully, host: %s, groupId: %s, clientId: %s%n",
config.getProperty("bootstrap.servers"),
config.getProperty("group.id"),
config.getProperty("client.id"));
return consumer;
} catch (Exception ex) {
// please refer to the JDBC specifications for detailed exceptions info
System.out.printf("Failed to create websocket consumer, " +
"host: %s, groupId: %s, clientId: %s, ErrMessage: %s%n",
config.getProperty("bootstrap.servers"),
config.getProperty("group.id"),
config.getProperty("client.id"),
ex.getMessage());
// Print stack trace for context in examples. Use logging in production.
ex.printStackTrace();
throw ex;
}
} -
Subscribe to the Topic, Consume the Data, and Display It in Spark.
// poll
pollExample(spark, consumer);
// pollExample
public static void pollExample(SparkSession spark, TaosConsumer<ResultBean> consumer)
throws SQLException, JsonProcessingException {
List<String> topics = Collections.singletonList("topic_meters");
List<Row> data = new ArrayList<>();
//
// obtain data
//
try {
// subscribe topics
consumer.subscribe(topics);
System.out.println("Subscribe topics successfully.");
for (int i = 0; i < 100; i++) {
// poll data
ConsumerRecords<ResultBean> records = consumer.poll(Duration.ofMillis(100));
for (ConsumerRecord<ResultBean> record : records) {
ResultBean bean = record.value();
// Add your data processing logic here
// covert bean to row
data.add(RowFactory.create(
bean.getTs(),
bean.getCurrent(),
bean.getVoltage(),
bean.getPhase(),
bean.getGroupid(),
bean.getLocation()
));
}
}
} catch (Exception ex) {
// catch except
System.out.printf("Failed to poll data, topic: %s, ErrMessage: %s%n",
topics.get(0),
ex.getMessage());
ex.printStackTrace();
}
//
// put to spark dataframe and show
//
StructType schema = generateSchema();
Dataset<Row> df = spark.createDataFrame(data, schema);
// show
System.out.println("------------- below is subscribe data --------------");
df.show(Integer.MAX_VALUE, 40, false);
} -
Unsubscribe and Release Resources.
// close
consumer.unsubscribe();
consumer.close();
// stop
spark.stop();
Data Analysis
Scenario Introduction
The example scenario involves a smart electricity meter used in a household. The data is stored in TDengine, and the goal is to analyze the voltage change of a single smart electricity meter's weekly electricity consumption.
Data preparation
Generate a supertable and a child table. One piece of data is generated daily, and a total of 21 pieces of data for three weeks are generated. The voltage data randomly varies within the range of 210 - 230.
Analyze the Weekly Voltage Change Rate
The LAG() function in Spark is used to obtain data from a previous row relative to the current row. This example uses this function to analyze the weekly voltage change rate.
-
Obtain data through TDengine SQL and create a Spark View. See createSparkView() for details.
SELECT tbname,* FROM test.meters WHERE tbname='d0' -
Use Spark SQL to query the data in the Spark View and calculate the weekly voltage change rate. The SQL is as follows:
SELECT tbname, ts, voltage,
(LAG(voltage, 7) OVER (ORDER BY tbname)) AS voltage_last_week,
"CONCAT(ROUND(((voltage - (LAG(voltage, 7) OVER (ORDER BY tbname))) / (LAG(voltage, 7)
OVER (ORDER BY tbname)) * 100), 1),'%') AS weekly_growth_rate ",
FROM sparkMeters -

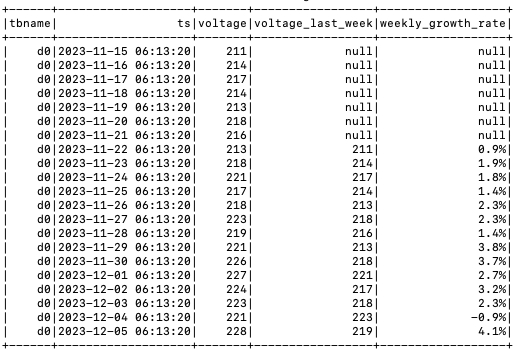

Output the analysis results, as shown in the following table:
After Spark accesses the TDengine data source, it can further support complex data - processing functions such as cross - database analysis, intersection/union/difference operations of datasets, sub - query filtering with the WHERE clause, and normal - column JOIN.
Example Source Code
The example is written in the JAVA language. For compilation and running instructions, refer to the README in the example source - code directory.
