Zero-Code Data Ingestion

In real workloads, device data may come from MQTT, Kafka, OPC, PI System, CSV files, or relational databases. Hand-written collectors are flexible but must handle connection, parsing, field mapping, checkpointing, and error recovery.

TDengine can ingest data through taosX and TDengine TSDB Explorer with zero code. You configure the data source, parsing rules, and target table mapping in the web UI, and external data is written into TDengine continuously.

Supported sources include PI System, OPC, InfluxDB, MQTT, Kafka, CSV, MySQL, PostgreSQL, Oracle, MongoDB, and more.

This chapter uses MQTT as an example with a public MQTT broker and one JSON meter message, from configuring a task to querying ingested rows.

Prerequisites​

Confirm the following:

  1. The TDengine service is running.
  2. TDengine TSDB Explorer is reachable in a browser.
  3. taosX-related services are running, and the left menu in Explorer includes Data In.
  4. You can reach an external MQTT broker. This chapter uses the public MQTT broker provided by EMQX.

If you started TDengine with the Docker option in this quick start, Explorer and taosX are usually included. If pages are unavailable, check container ports and service status.

Create an MQTT Ingestion Task​

Open TDengine TSDB Explorer, go to Data In on the left, and click + Add Source (or Create New Task) to open the task configuration page.

Under basic information, set:

  • Name: quick_mqtt_meter (must be unique).
  • Type: MQTT.
  • Target DB: test_mqtt. If the database does not exist, click + Create Database / Create Database.

Agent is optional; leave it blank for this example.

Configure the Broker Address​

Under broker / connection settings, use the public MQTT broker:

  • MQTT Host: broker.emqx.io
  • Port: 1883

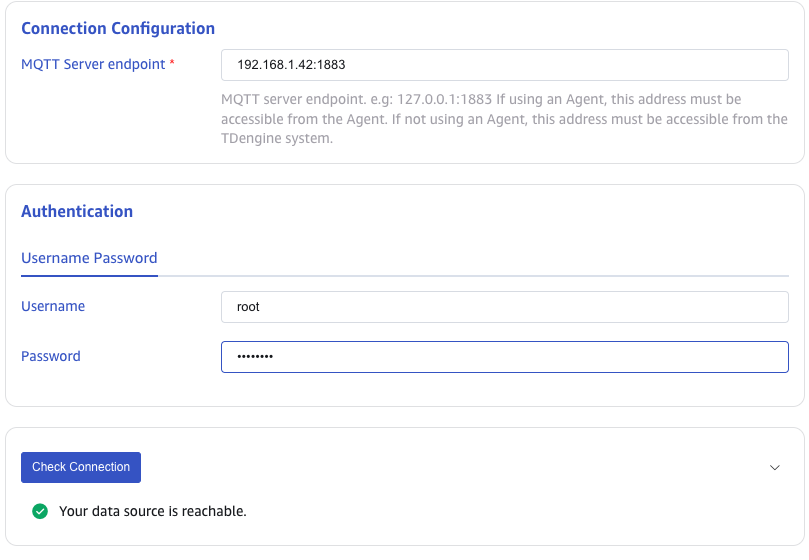

Configure MQTT connection

Configure Connection and Authentication​

Under connection / protocol settings:

  • MQTT Protocol Version: 3.1 (page default; 3.1.1 or 5.0 are also available).
  • Client ID: Use the auto-generated value such as taosx_client_<8 random chars>, or set a custom unique ID on that broker.
  • Keep Alive / Clean Session: Keep the defaults (keep-alive often 60 seconds; clean session on).

Under authentication:

  • Username / Password: Leave blank. The public broker does not require authentication.
  • TLS Verification: Disable.

Under collection / topic settings:

  • Topics QoS Config: tdengine/quickstart/meter::0

The format is <topic>::<QoS>, where QoS is 0, 1, or 2. The example subscribes to topic tdengine/quickstart/meter with QoS 0. Separate multiple topics with commas, for example topic1::0,topic2::1.

Leave advanced items such as topic parsing, compression, and character encoding at their defaults.

Click Check Connectivity. If you see Your data source is reachable (or an equivalent success message), taosX can reach the MQTT broker.

Configure Payload Transformation​

In Payload Transformation, find the sample message body and enter the following JSON for one smart meter reading.

{
  "ts": "2026-07-27T14:30:00+08:00",
  "id": 1,
  "current": 10.42,
  "phase": 1.38,
  "voltage": 220,
  "groupid": 7,
  "location": "beijing"
}

Click Identify / the preview icon under parsing to confirm JSON fields are extracted.

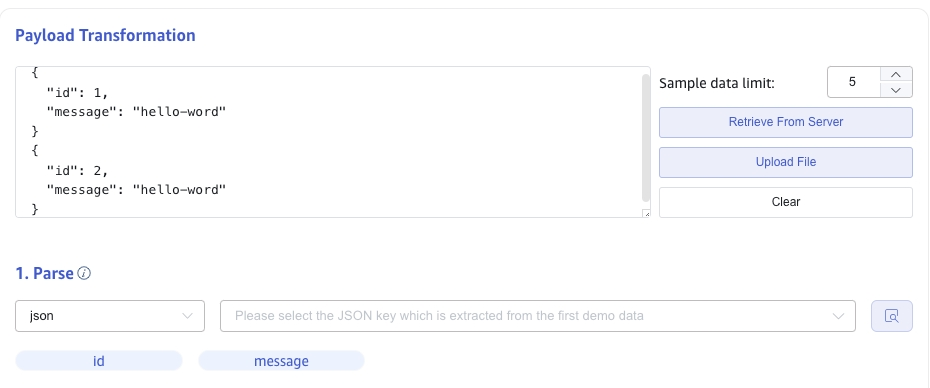

Payload parsing results

Then under Mapping, select or create the target supertable meters.

If you create a new supertable, configure columns and tags as follows:

Data TypeNameKindDescription
TIMESTAMPtsColumnTimestamp
DOUBLEcurrentColumnCurrent
DOUBLEphaseColumnPhase
INTvoltageColumnVoltage
INTgroupidTagGroup ID
VARCHAR(128)locationTagLocation

After the supertable is created and selected, complete mapping:

  1. On the SubTableName (Tablename) row, set Expression to t_{id} so the subtable name is built from the message id (for example id 1 → t_1).
  2. Map the remaining columns to the matching JSON fields (ts, current, voltage, phase, groupid, location).

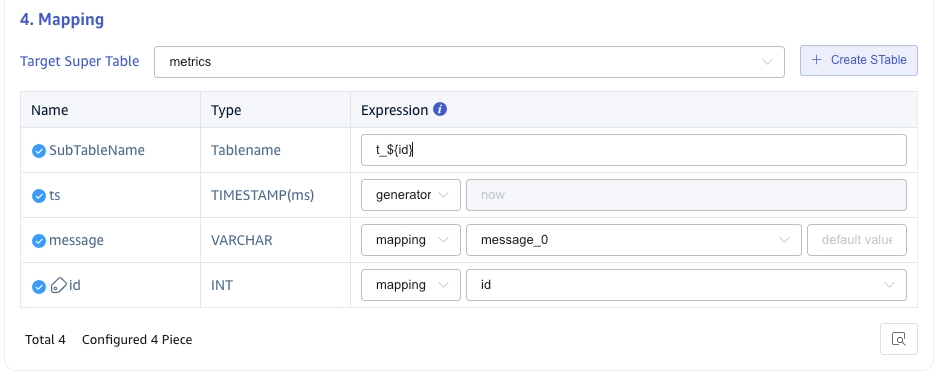

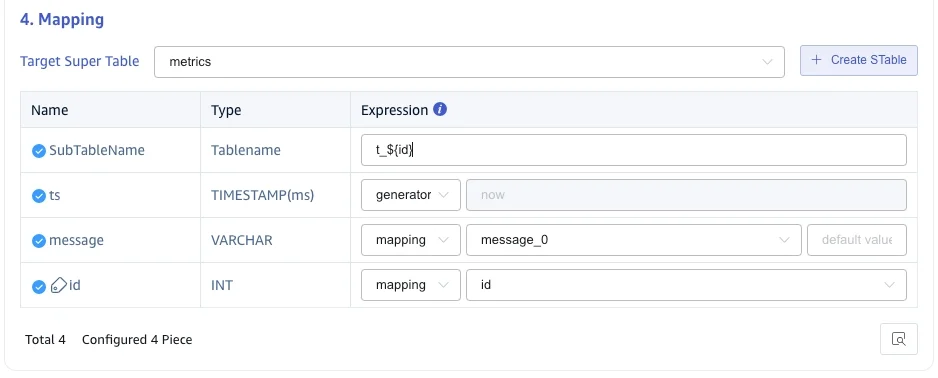

Table mapping

Click Submit. You return to the Data In Task list.

Check Task Status​

After submit, watch Status in the list. When it becomes Running, the task is subscribed to the MQTT topic and waiting to write into TDengine.

You can also view write rate, errors, and recent status in the list. If the status is abnormal, open the task details for error messages.

Send Test Data​

When the task is Running, publish a test message with mosquitto_pub (Eclipse Mosquitto client). If it is not installed, run sudo apt install mosquitto-clients on Debian/Ubuntu, or install the Mosquitto clients package for your platform.

Example publish:

mosquitto_pub -h broker.emqx.io -p 1883 -t 'tdengine/quickstart/meter' -q 0 -m '{
  "ts": "2026-07-27T14:31:00+08:00",
  "id": 1,
  "current": 10.58,
  "phase": 1.41,
  "voltage": 221,
  "groupid": 7,
  "location": "beijing"
}'

Parameters:

  • -h / -p: Broker host and port (broker.emqx.io:1883).
  • -t: Publish topic; must match the topic in Topics QoS Config (without the ::QoS suffix).
  • -q: QoS (0 in this example).
  • -m: Message body; fields must match the sample body and mapping rules.

To avoid overwriting the same timestamp, change ts to the current time when retesting. You can also use a GUI client such as MQTTX to publish the same topic and payload. See the EMQX getting started docs for related broker background.

Verify Ingested Data​

After publishing, query results in Explorer’s data browser or in the shell.

SELECT tbname, ts, current, voltage, phase, groupid, location
FROM test_mqtt.meters
ORDER BY ts DESC
LIMIT 5;

The result looks similar to:

 tbname |           ts            | current | voltage | phase | groupid | location |
==================================================================================
 t_1    | 2026-07-27 14:31:00.000 | 10.5800 |     221 | 1.410 |       7 | beijing  |
 t_1    | 2026-07-27 14:30:00.000 | 10.4200 |     220 | 1.380 |       7 | beijing  |

If rows are returned, MQTT messages were written to TDengine through taosX.

You can also review task status, ingestion rate, and error logs on the Data In page.

Troubleshooting​

If connectivity check fails, check the following:

  • Whether the host running taosX can reach broker.emqx.io:1883.
  • Whether MQTT Host, Port, TLS Verification, and authentication are correct.
  • Whether corporate networks or cloud security groups block outbound MQTT.

If the task is running but queries return no data, check the following:

  • Whether the published topic exactly matches the topic in Topics QoS Config.
  • Whether the sample body can be identified and field names match the mapping.
  • Whether SubTableName is set (for example t_{id}).
  • Whether the target database and supertable were created successfully.
  • Whether you query database test_mqtt.

Next Steps​

This chapter demonstrates a minimal MQTT ingestion flow. For more sources and advanced options, continue with:
