Dual-Replica Configuration

ENTERPRISE FEATURE

The features or components discussed in this document are available in TDengine TSDB-Enterprise only. TDengine TSDB-OSS does not include these features or components.

TDengine offers an arbitrator-based dual-replica solution that enables fault tolerance, provided that only one node fails at a time and failures are not continuous. Compared with three-replica deployments, dual-replica mode reduces hardware costs while ensuring a certain level of high availability.

In this architecture, leader election is handled by the high-availability mnode through arbitration, rather than being decided within the Raft group.

  1. Arbitrator: Provides arbitration services but does not store data. If a vgroup becomes unavailable due to a vnode failure, the arbitrator designates another vnode in the vgroup as the assigned leader, based on data synchronization status.
  2. Assigned Leader: A vnode that has been explicitly designated as the leader. It can continue serving client requests regardless of whether the other replica vnode is alive.

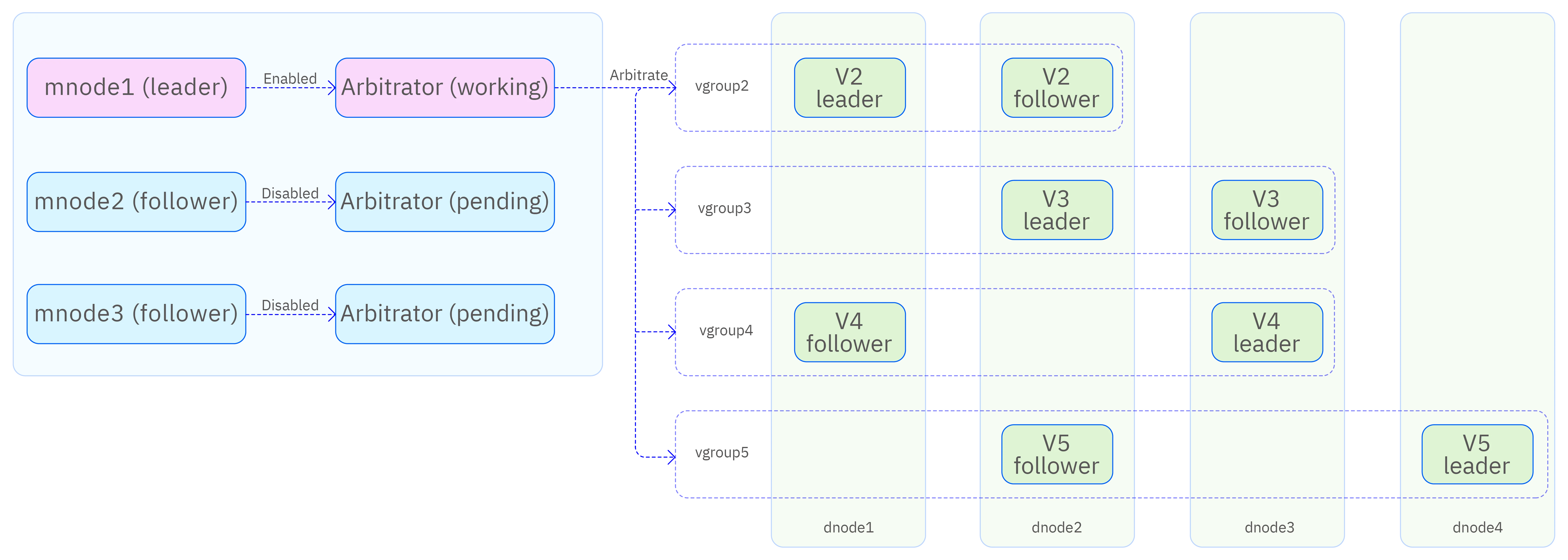

Dual-Replica Architecture

Cluster Configuration​

The dual-replica architecture requires at least three server nodes. The basic deployment and configuration steps are as follows:

  1. Determine the number of server nodes and their hostnames or domain names, then configure DNS or /etc/hosts for proper name resolution.
  2. Install the TDengine TSDB-Enterprise server package on each node and edit the taos.cfg file on each node as needed.
  3. You can designate one node to provide only arbitration services (by deploying an mnode) and set the SupportVnodes parameter to 0, which means it does not store time-series data. This requires minimal resources (only 1–2 CPU cores) and can run alongside other applications.
  4. Start the taosd service on each node. Other services (such as taosadapter, taosx, taoskeeper, or taos-explorer) can be started as required.

Limitations​

  1. The minimum server configuration is two data nodes and one arbitrator node.
  2. The replica count is a per-database parameter; different databases can choose the number of replicas as needed.
  3. The full feature set of TDengine TSDB is supported.
  4. All TDengine TSDB language connectors and connection methods are supported.
  5. You can switch between single-replica and dual-replica configurations (provided that the number of nodes, available vnodes, memory, and storage space meet the requirements).
  6. You cannot switch between dual-replicas and three-replica mode.
  7. You cannot switch from dual-replica mode to active-active mode, unless an additional independent instance is deployed to form an active-active setup.

Maintenance Commands​

Create a Cluster​

Create two additional dnodes in your cluster for a total of three dnodes:

CREATE dnode <dnode_ep> port <dnode_port>;
CREATE dnode <dnode_ep> port <dnode_port>;

Create mnodes on the two dnodes for a total of three mnodes:

CREATE mnode on dnode <dnode_id>;
CREATE mnode on dnode <dnode_id>;

Create a Dual-Replica Database​

Create a dual-replica database:

create database <dbname> replica 2 vgroups xx buffer xx ...

Modify an Existing Database​

If you have already created a single-replica database, you can change it into a dual-replica database:

alter database <dbname> replica 2;

Viewing the Status of Vgroups​

Use the following SQL commands to view the status of each Vgroup in a dual-replica database:

show arbgroups;

select * from information_schema.ins_arbgroups;

 db_name | vgroup_id | v1_dnode | v2_dnode | is_sync | assigned_dnode |     assigned_token      |
=================================================================================================
 db      |         2 |        2 |        3 |       0 | NULL           | NULL                    |
 db      |         3 |        1 |        2 |       0 |              1 | d1#g3#1714119404630#663 |
 db      |         4 |        1 |        3 |       1 | NULL           | NULL                    |

is_sync has the following two values:

  • 0: Vgroup data has not achieved synchronization. In this state, if one Vnode in the Vgroup is inaccessible, the other Vnode cannot be designated as the AssignedLeader role, and the Vgroup will not be able to provide service.
  • 1: Vgroup data has achieved synchronization. In this state, if one Vnode in the Vgroup is inaccessible, the other Vnode can be designated as the AssignedLeader role, and the Vgroup can continue to provide service.

assigned_dnode:

  • Identifies the DnodeId of the Vnode designated as AssignedLeader
  • Displays NULL when no AssignedLeader is specified

assigned_token:

  • Identifies the Token of the Vnode designated as AssignedLeader
  • Displays NULL when no AssignedLeader is specified

Best Practices​

  1. New Deployment

The main value of dual replicas lies in saving storage costs while maintaining a certain level of high availability and reliability. In practice, the recommended configuration is:

  • N node cluster (where N>=3)
  • N-1 dnodes responsible for storing time-series data
  • The Nth dnode does not participate in the storage and retrieval of time-series data, i.e., it does not store replicas; this can be achieved by setting the supportVnodes parameter to 0
  • The dnode that does not store data replicas also has lower CPU/Memory resource usage, allowing the use of lower-specification servers
  1. Upgrading from Single Replica

Assuming there is an existing single replica cluster with N nodes (N>=1), and you want to upgrade it to a dual replica cluster, ensure that N>=3 after the upgrade, and configure the supportVnodes parameter of a newly added node to 0. After completing the cluster upgrade, use the command alter database replica 2 to change the replica count for a specific database.

Failure Scenarios​

ScenarioResult
Arbitrator failure (two or more mnodes down)Service available
Single vnode failure after vgroup has finished synchronizationService available
Double vnode failure after vgroup has finished synchronization, but one vnode recoversYou can run the ASSIGN LEADER FORCE; statement to make service available
Single vnode failure before vgroup has finished synchronizationService unavailable
Double vnode failureService unavailable
ASSIGN LEADER FORCE;

Frequently Asked Questions​

1. Creating or modifying a database to use two replicas causes DB error: Out of dnodes​

  • Cause: There are fewer than two data nodes in the cluster.
  • Solution: Ensure that there are at least two dnodes before creating a dual-replica database.

2. Creating a dual-replica database or running SPLIT VGROUP causes DB error: Vnodes exhausted​

  • Cause: Some dnodes have fewer available vnodes than required for database creation or vgroup splitting.
  • Solution: Increase the number of CPU cores on the dnodes or modify the SupportVnodes parameter.
