PI Historical Data Backfill Guide

This page describes how to use PI backfill tasks to migrate historical data from the PI system to TDengine, covering task creation, performance optimization, migration workflow, and data validation.

1. Overview

PI backfill tasks extract historical data from the PI system within a specified time range and write it to TDengine. Typical use cases include:

• System migration: Migrating from the PI system to TDengine, requiring historical data to be migrated as well
• Data recovery: Backfilling data gaps caused by task interruptions or other reasons
• Data analysis: Importing historical data into TDengine for retrospective analysis

2. Creating a PI Backfill Task

2.1 Basic Steps

1. On the Data In page in Explorer, click +Add Data Source
2. In the Type dropdown, select PI backfill
3. Configure connection information (same as real-time tasks, see main documentation)
4. Configure data model (single/multi-column, see Model Configuration Reference)
5. Configure the backfill time range (see next section)
6. Submit the task

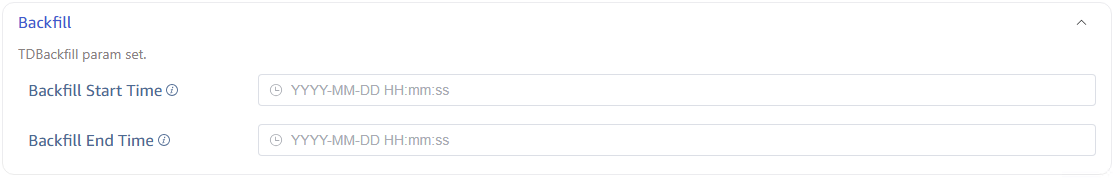

2.2 Configure Backfill Time Range

PI backfill tasks must have the following parameters configured:

Parameter	Description
Start Time	The starting time point for backfilling data
End Time	The ending time point for backfilling data

note

The backfill task will automatically stop after completing the data migration for the specified time range.

3. Performance Optimization

3.1 Batch Size Tuning

In Advanced Options, you can adjust the batch size, which affects the amount of data written to TDengine per operation:

Scenario	Suggested Batch Size	Description
Default	Use system default	Suitable for most scenarios
Many points, data-intensive	Increase appropriately	Improves throughput but uses more memory
Memory-constrained	Decrease appropriately	Reduces memory usage but may reduce throughput

3.2 Parallel Backfill Strategy

For migrating large volumes of historical data, we recommend splitting into multiple backfill tasks by time segments for parallel execution:

Strategy	Description
Split by year/month	Split the entire backfill time range into multiple tasks by year or month
Split by data source	Use independent backfill tasks for different templates or point groups
Control concurrency	Monitor the load on the PI system and TDengine to avoid too many parallel tasks

Example: Backfilling data from 2020-01-01 to 2024-12-31

Task 1: 2020-01-01 ~ 2020-12-31
Task 2: 2021-01-01 ~ 2021-12-31
Task 3: 2022-01-01 ~ 2022-12-31
Task 4: 2023-01-01 ~ 2023-12-31
Task 5: 2024-01-01 ~ 2024-12-31

tip

When running parallel backfill tasks, monitor the PI Data Archive Server load to avoid excessive concurrent reads affecting the normal operation of the PI system.

3.3 Performance Impact on the PI System

Backfill tasks read large volumes of historical data from the PI Data Archive, which may have the following impact on the PI system:

• Increased CPU and I/O load on the PI Data Archive
• Increased network bandwidth usage

Mitigation measures:

• Execute backfill during low-load periods of the PI system (e.g., nights, weekends)
• Control the number of parallel tasks
• Control the read rate through the batch size parameter

4. Recommended Migration Workflow

4.1 Backfill First, Then Real-time (Recommended)

This is the most common migration workflow, suitable for most scenarios:

Key points:

• In step 4, when creating the real-time task, configure an appropriate restart compensation time to cover the interval between backfill completion and real-time task startup, ensuring no data loss during the transition
• In step 5, we recommend comparing data volumes between PI and TDengine, and spot-checking data accuracy

4.2 Real-time First, Then Backfill

Suitable for scenarios where real-time data sync needs to start as soon as possible:

Key points:

• TDengine performs updates (overwrites) for data with the same timestamp, so overlapping time periods between real-time and backfill tasks will not produce duplicate data
• The advantage of this approach is that real-time data has no delay; the disadvantage is higher load on both the PI system and TDengine during backfill

5. Data Validation

After backfill is complete, the following validations are recommended:

5.1 Data Volume Comparison

Query the data volume for the same time range in both PI and TDengine to confirm consistency:

-- TDengine: Query data volume for a table within the backfill time range
SELECT COUNT(*) FROM <table_name>
WHERE ts >= '2020-01-01' AND ts < '2025-01-01';

5.2 Data Accuracy Spot Check

Select several points/elements and compare data values at specific timestamps between PI and TDengine.

5.3 Timestamp Alignment

Confirm that timestamps in TDengine match the original timestamps in PI, paying special attention to timezone issues.

6. FAQ

How to resume after a backfill task interruption?

PI backfill tasks support checkpoint-based resumption. If a task is interrupted, restarting it will continue from the last interruption point, and already-written data will not be reprocessed.

Batching strategy for large-scale point backfill?

If you need to backfill data for tens of thousands of points, we recommend:

1. Split into multiple tasks by template/point group
2. Use independent model configuration files for each task
3. Start in batches, monitoring PI system load

How to troubleshoot slow backfill speed?

1. Check if network bandwidth is a bottleneck
2. Check the CPU and I/O load on the PI Data Archive
3. Check if TDengine write is a bottleneck
4. Try adjusting the batch size parameter
5. Set the log level to debug for detailed information
